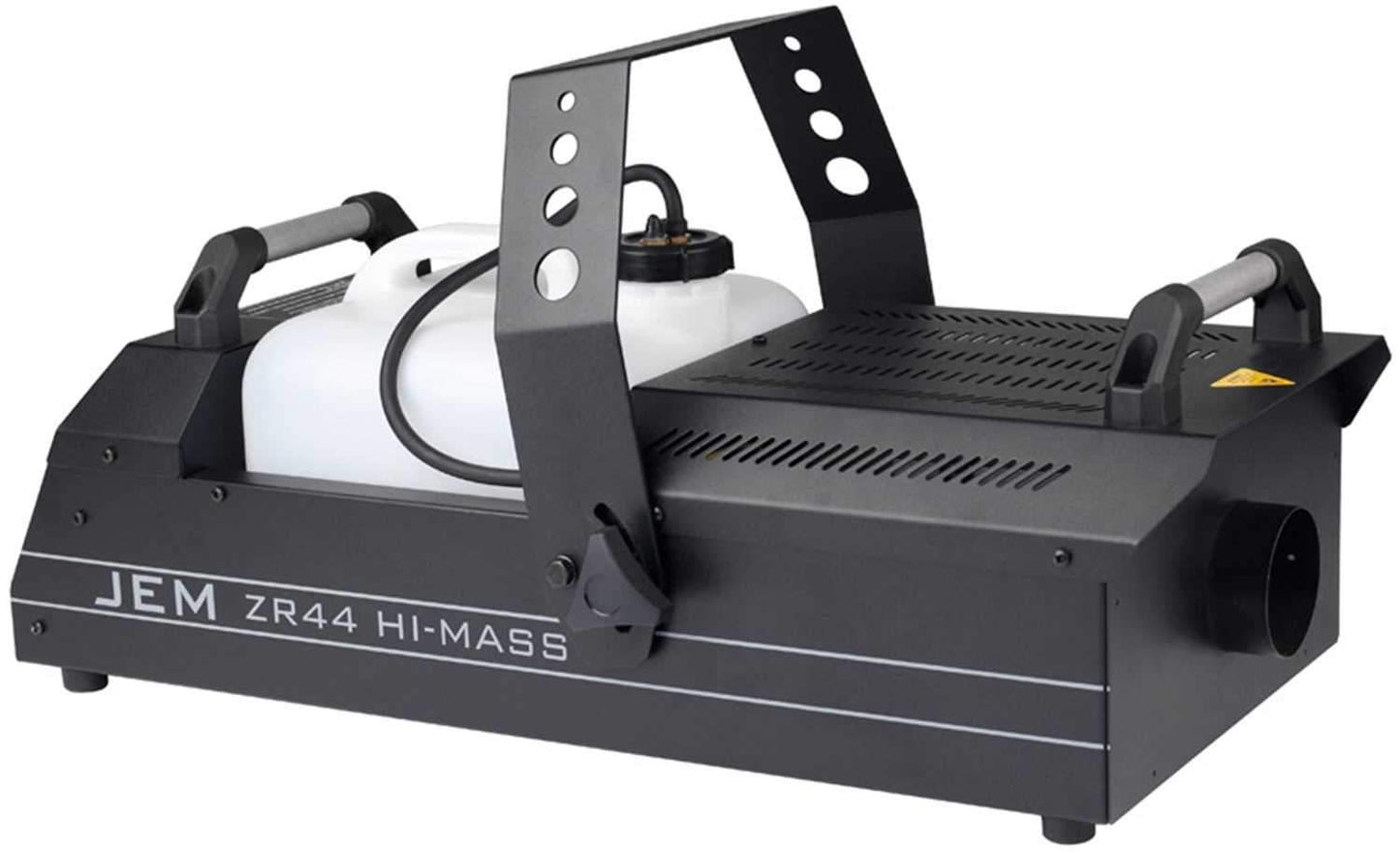

Martin JEM ZR44 120V Hi-Mass DMX Fog Machine
The Jem ZR44 Hi-Mass is a reliable and highly efficient fogger capable of precise fog delivery from subtle to massive. Ideal for a variety of settings from small venues to huge stadiums and arenas, it features advanced technology for top-quality performance, as well as advances in digital functionality such as RDM compatibility.
Features:- 3 & 5 pin DMX interface
- Prepared for multifunctional digital remote
- RDM capable
- Floor standing or truss mounting
- Neutrik PowerCon connector
- 1200 m³/min fog outputContinuous output
- Tough and solid design
- 1800 W heat exchanger
- 7.5 min heat-up time
- Indirect Fluid Sensing System
- Proprietary Pro Steam Simulation fluid solution
- Different fluid options for different applications
- Leaves no oil residue on light fixtures
- Soft Start technology
Performance
- Max. fog output (approx.): 1200 m3 per minute
- Max. operating time at const. full output (approx.) - 9.5L: 3.5 Hours
- Operating time: Continuous, automatic level adjustment
- Warm-up time (approx.): 7.5 minutes
- Control options: Onboard analogue remote control (Supplied), Multi-Function digital remote control (Optional), DMX (3 and 5 pin), 0-10V analog, RDM capable
- Remote control features: Instant or timer-controlled variable output
- Delay time 2-144 seconds, run time 2-144 seconds DMX channels: 1
- RDM Capable via DMX socket
- Housing: Steel & aluminum
- Heat exchanger: 1800 W, direct thermal protection
- Fluid pump: Oscillating piston, high pressure X2
- Onboard fluid capacity: 9.5 l
- Fluid consumption at peak output: 150 ml per minute
- Indirect fluid sensing system for unattended operation
- Orientation: Floor or adjustable mounting bracket
- Remote control: 2 x 3-pin locking XLR
- DMX and RDM data in/out: 2 x 3-pin and 2 x 5-pin locking XLR
- Power cable entry: Neutrik PowerCon
- AC power (EU models): 220-240 V nominal, 50 Hz
- AC power (US models): 110-120 V nominal, 60 Hz
- Main fuse (220-240 V power): 10 A
- Main fuse (110-120 V power): 20 A
- 120 V, 60 Hz: 1750 W, 14.58 A (Measurements made at nominal voltage. Allow for a deviation of +/- 10%. 50/60Hz operation on either voltage)
- Maximum ambient temperature (Ta max.): 40° C
- Exterior surface temperature, steady state: 50° C
- Max. nozzle temperature: 200° C
- Length: 685 mm (27.0 in.)
- Length (including optional drip tray): 750 mm (29.6 in.)
- Width: 345 mm (13.6 in.)
- Height: 225 mm (8.9 in.)
- Dry weight: 19.0 kg (41.9 lbs.)
