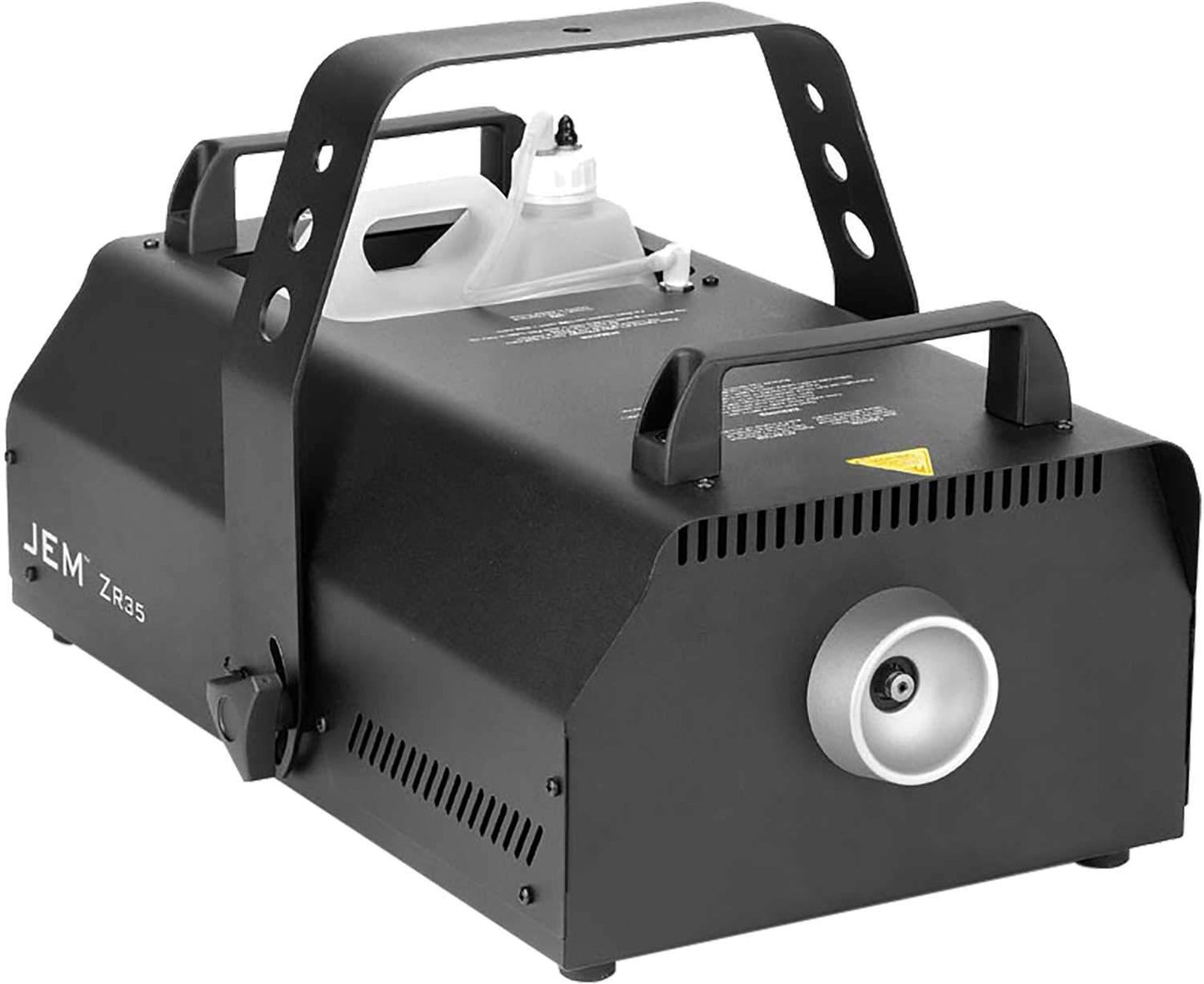

Martin Jem ZR35 1500W DMX Fog Machine

The Jem ZR35 is a mid-sized fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its powerful 1500 W heat exchanger, the Jem ZR35 produces a fantastic peak output ideal for mid to large-sized venues and stages in both install and rental markets.The rugged yet weight optimized Jem ZR35 also features variable output control for more subtle effects and is fully up-to-date with and integrated digital remote control, DMX and RDM.The entire Jem ZR range is compatible with a wide range of Jem Pro-Fog fluids. As machines designed and built to last, the Jem ZRs will continue to perform with great output and low consumption.

Features:

• High endurance mid-sized fog machine
• Exceptional performance and output
• Various control options via digital remote, DMX and RDM
• Robust roadworthy design
• Integrated Digital Remote Control
• DMX with RDM
• Floor standing or truss mounting (hanging bracket included)
• 1500 W heat exchanger
• 800 m³ (28,252 ft.³) per minute fog output
• Variable output control for subtle effects
• Continuous effect output
• Compatible with a wide range of Jem Pro-Fog fluid
• 4 l Fluid reservoir with quick-connect fitting (compatible with 5 l bottle)
• Easy external fluid connection
• Optional Ducting Kit

Specifications:

Physical

• Length: 590 mm (23.3 in.)
• Width: 395 mm (15.6 in.)
• Height: 264 mm (10.4 in.)
• Height including hanging bracket: 333 mm (13.9 in.)
• Weight, dry: 15.1 kg (33.3 lbs.)
• Weight, filled: 19.1 kg (42.1 lbs.)

Performance

• Continuous effect output
• Coverage volume: 800 m 3 (28,252 ft 3) per minute
• Fluid consumption (max.): 140 ml per minute
• Maximum operating time, maximum output, 4 l of fluid: 1.25 hours
• Ready time: 9-minutes

Control and Programming

• Control options: Integrated digital remote control, DMX, master/slave link mode
• Control parameters: Continuous or timer-controlled output
• Fog: Variable output control, 0-100%
• DMX channels: 1
• DMX compliance: ANSI E1.11 - USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20 RDM

Construction

• Housing: Steel and aluminum
• Hanging bracket: Integrated yoke with safety attachment point
• Color: Black
• Heat exchanger: 1500 W, thermally protected
• Fluid pump: Oscillating piston, high pressure
• Fluid management: Fluid out sensing, sealed for transportation
• Fluid reservoir: 4 or 5 l drop-in reservoir with quick-connect fitting
• External fluid control: Fluid sensing
• Remote control: Integrated Digital Remote with 3 m (9.84 ft.) cable, 3-pin XLR

Installation

• Mounting: Standing or hanging
• Orientation: Up to +/- 40° from horizontal
• Clearance around machine: 100 mm (4 in.)

Connections

• AC Power: Neutrik powerCON True1
• DMX and link mode in/out: 5-pin locking XLR
• Remote control: 3-pin locking XLR
• Firmware: AVR socket

Electrical

• EU model:
• C power: 220-240 V nominal, 50/60 Hz
• Main fuse: 10 AT (slow blow), 250 V
• Typical power consumption: 1500 W, 6.8 A*
• US model:
• C power: 100-130 V nominal, 50/60 Hz
• Main fuse: 15 AT (slow blow), 125 V
• Typical power consumption: 1450 W, 12.1 A*

*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Thermal

• Minimum ambient temperature (Ta min.): 5° C (41° F)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Exterior surface temperature, steady state: 30° C (86° F)
• Maximum nozzle temperature: 290° C (554° F)

Approvals

• EU model
• EU safety: EN 60335-1+A15, EN 62233
• EU EMC: EN 61000-6-3
• EU immunity: EN 61000-6-1
• ustralia/NZ (pending): RCM
• US model
• US safety: UL 998

Included Items

• Fluid reservoir, 4 l: P/N 34300523
• Jem ZR Series Integrated Digital Remote Control: P/N 92765048
• Power input cable, EU, PowerCON True 1, stripped ends, 3 m (9.8 ft.): P/N 11501043
• Power input cable, US, 15A, PowerCON True 1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N 11501045

Accessories

• Jem ZR35 Ducting System with 5 m (16.4 ft.) 4" flexible ducting: P/N 92625013
• Jem External Fluid Reservoir Kit, 25 l: P/N 92620035
• Approved Fluids*
• Jem Pro-Fog Fluid, Quick Dissipating
• Jem Pro-Fog Fluid
• Jem Pro-Fog Fluid, High Density
• Rush & Thrill Fog Fluid
• Martin Pro-Clean and Storage Fluid
• Approved Discontinued Fluids*
• Pro Smoke Studio (DX)
• Pro Smoke Super (ZR)
• Pro Smoke High Density (SP)
• I-Fog Fluid
• Regular DJ Fluid (DJ)
• Rush Fog Fluid
• Rush ELX Smoke Fluid
• Martin Pro Clean Supreme
• Installation hardware
• Half-coupler clamp: P/N 91602005
• G-clamp (vertical hanging suspension only): P/N 91602003
• Quick trigger clamp (vertical hanging suspension only): P/N 91602007
• Safety cable, SWL 60 kg, BGV C1/ DGUV 17, black: P/N 91604006
• Service tools
• Epsilon 5 AVR Programmer: P/N 50502004
• Temperature Calibration Box: P/N 92620005

*Various sizes available - contact your dealer or see 'Fluids' product pages for details

Ordering Information

• Jem ZR35, EU: P/N 92215340
• Jem ZR35, US: P/N 92215350
