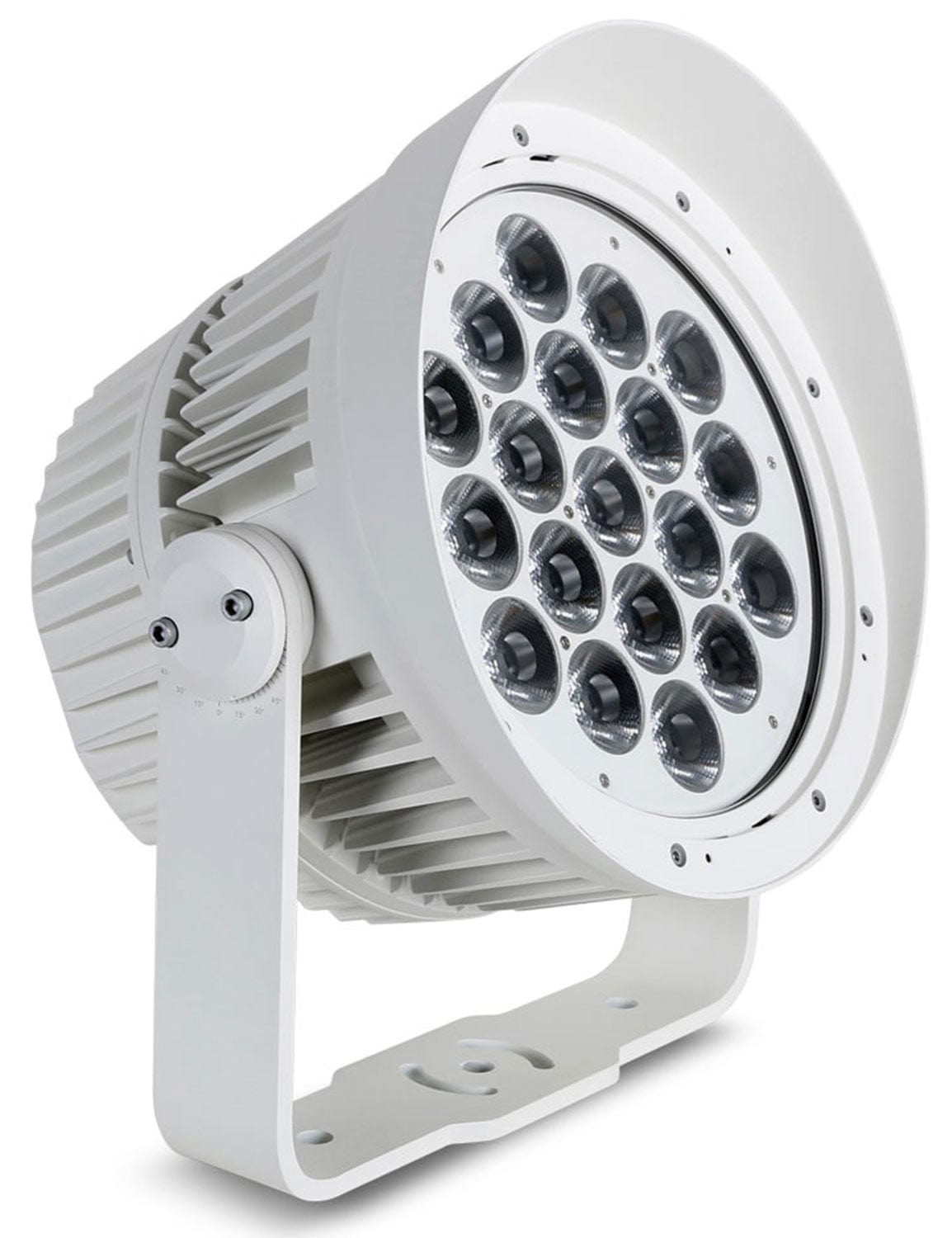

Martin Exterior Wash 210 RGBW Color Mixing Wash Light - 10 Degree - EU / European Version - White
Exterior™ Wash 210 is a powerful, compact and energy-efficient LED lighting fixture designed to illuminate mid-sized structures and building facades. A discreet, optional snoot integrates seamlessly with the slick design of the fixtures. It has built-in display for ease-of-use, a wide selection of beam angles and is fully IP-rated for permanent outdoor use.
The Exterior Wash 210 is designed for superior color mixing applications and is based on quad-color premixed LEDs.
Features:
- Powerful premixed LEDs
- Up to 4900 lumens at full white (RGBW)
- Six different beam angle options
- Internal power and control (DMX, RDM and OLED display)
- Rugged IP66 housing
- 0–100% intensity control
Specifications:
- Physical:
- Length: 270 mm (10.7 in.)
- Width: 334 mm (13.2 in.)
- Height: 382 mm (15.1 in.)
- Weight: 13.0 kg (28.7 lbs.)
- Dynamic Effects:
- Intensity: 0 - 100%
- Color mixing: RGBW
- Control and Programming:
- Control systems: DMX, RDM
- Stand-alone control: Up to 20 scenes with global fade/hold times
- Setting, addressing, standalone programming: Control panel with OLED display
- DMX channels: 3-5 depending on DMX mode
- Receiver: RS-485
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Firmware update: Serial upload via DMX link
- Optics:
- Light source: 19 x RGBW quad-color LEDs
- Minimum LED lifetime: 50,000 hours (to >70% luminous output)
- LED manufacturer: Cree
- Beam Angle Options:
- No diffuser: 10.5°
- Narrow diffuser: 14°
- Medium diffuser: 24°
- Wide diffuser: 43°
- Very wide diffuser: 63°
- Asymmetric diffuser: 61° x 16°
- Binning: Tight color and flux binning
- Calibration: Full Gamut Color Calibration
- Photometric Data:
- CRI (Color Rendering Index) : > 70
- CCT: 6500 K (White LED)
- Total luminous output: 4900 lumens
- Construction:
- Housing: Cast aluminum
- Color: White
- Ingress protection rating: IP66
- Surface treatment: Anodized and electrostatic powder-coated
- Effective Projected Area (EPA): 0.1 m² including snoot
- Impact resistance: IK08 (with control panel display cover plate installed)
- Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
- Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
- 0,7g RMS Random (IEC 60068-2-64)
- Installation:
- Mounting: Adjustable yoke
- Orientation: Any
- Minimum distance to illuminated surfaces: 0.2 m (0.6 ft.)
- Connections:
- Power connection: 1.8 m (5.9 ft.) cable tail without connector
- Power input cable type, EU models: H05RN-F 300/500V, 3 x 0.75 mm2, Ø 7 mm
- Power input cable type, US models: SJOW 18AWG, 300V, WL F1, Ø 8 mm
- Data connection: 1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tail
- All cable entries: IP68 cable gland
- Electrical:
- AC power: 100 - 240 / 277 V nominal, 50/60 Hz
- Power supply unit: Integrated, auto-sensing multi-voltage
- Power Consumption: 3 W (steady state, all LEDs at zero intensity)
- Typical half-cycle RMS inrush current: 10.3 A
- Maximum total power consumption: 165 W
- Surge protection: 4 KV
- Max earth leakage: 0.50 mA
- Typical Power and Current:
- 100 V, 60 Hz: 1.5 A, 148 W, PF 0.99
- 120 V, 60 Hz: 1.25 A, 146 W, PF 0.99
- 230 V, 50 Hz: 0.7 A, 146 W, PF 0.95
- 277 V, 60 Hz: 0.6 A, 146 W, PF 0.88
- Thermal:
- Cooling: Convection
- Maximum ambient temperature (Ta max.): 45° C (113° F)
- Minimum ambient temperature (Ta min.): -30° C (-22° F)
- Maximum surface temperature, steady state, at 40° C ambient: 55° C (131° F)
- Total heat dissipation (calculated, +/- 10%): 485 BTU/hr
