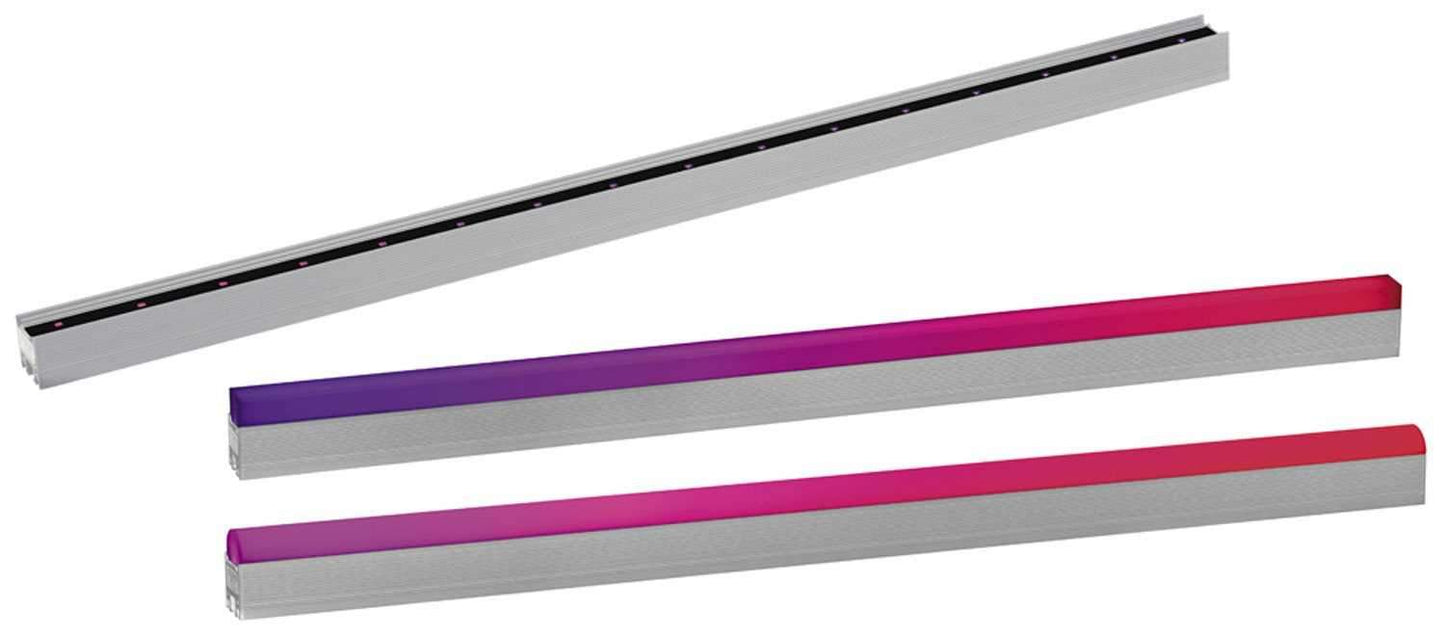

The Exterior PixLine 40 is a linear LED video fixture for media facades and creative installations. The Exterior PixLine 40 can be combined with a wide variety of lenses and diffusers for the right look for every application. The Exterior PixLine 40 is driven by the Martin P3 System Controller family for easy setup and video display, and it is also backwards compatible with DMX. The fixtures can be fully customized in terms of length and color to match every installation requirement, while the power source is hidden.

• Wide range of pixel pitch, lens and diffuser options for the flexibility of look
• Fully outdoor-rated and customizable in terms of length and color
• 40 mm pixel pitch
• 62 cd per meter calibrated
• 187 lumen per meter calibrated
• High-quality 16-bit per color image processing technology
• Pixel-level brightness and color calibration for optimal image quality
• P3/DMX controllable (automatic protocol detection)
• Intuitive mapping and addressing via P3 System Controller
• Combined power/data input (single cable for power and data input)
• Supported by integrated power and data processor (P3 PowerPort 1500 or P3 PowerPort 1000 IP) and simple cabling system
• Easy setup and cabling for clean installation

• Control options: Martin P3 System Controller via Martin P3 PowerPort 1500/P3 PowerPort 1000 IP, and/or DMX
• Protocol detection: Automatic
• Control modes: RGB, basic and pixel-level
• DMX channels: 3/10/103/391
• Setting and addressing: Martin P3 System controller or RDM-compliant controller
• Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
• Color and intensity calibration: Pixel-level
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Firmware update: Via P3 System Controller
• DMX channels: 3/10/31/103

• Device status: Multi-color visual indication
• Device test and reset: Magnetic pushbutton to call up local test patterns and reset device

• Square Diffuser
• Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
• *Figure obtained under manufacturer's test conditions

• Color resolution: 16 bits per color (48 bit per pixel)
• Viewing angle: 120° x 120°
• Pixels per meter: 25
• Pitch (pixel center-to-center): 40.00 mm
• Luminous intensity, calibrated mode: 50 cd per meter
• Total output, calibrated mode: 150 lumens per meter

• Brightness control
• Gamma correction and control
• Color temperature control
• Color space control
• Calibration processing
• Synchronization

• P3 (via Martin P3 PowerPort) or DMX

• Base: Extruded aluminum profile
• Color: Clear anodized (customized colors available on project basis)
• Protection rating: IP66
• RoHS compliant

• Orientation: Any
• Mounting: Slot for locking nuts on back of profile and/or installation mounting profile
• Maximum length of one daisy chain using P3 PowerPort 1500: 24 m
• Maximum total length per P3 PowerPort 1500: 96 m
• Maximum length of one daisy chain using P3 PowerPort 1000 IP: 16 m
• Maximum total length per P3 PowerPort 1000 IP: 64 m

• Power and data input: 6-pin custom IP65-rated
• Power and data thru: 6-pin custom IP65-rated

• Nominal input voltage: 48 V DC
• Power supply options: Martin P3 PowerPort 1500, P3 PowerPort 1000 IP or generic 48 VDC PSU

• Max. total power consumption: 7.5 W per meter at full intensity, full white

• Cooling: Convection
• Maximum ambient temperature (Ta max.): 55° C (113° F)
• Minimum ambient temperature (Ta min.): -20° C (-4° F)

• Length: 320 mm
• Width: 27 mm (1.07 in.)
• Height: 28 mm (1.10 in.)
• Weight: 1.2 kg/m (0.81 lbs. per foot)
