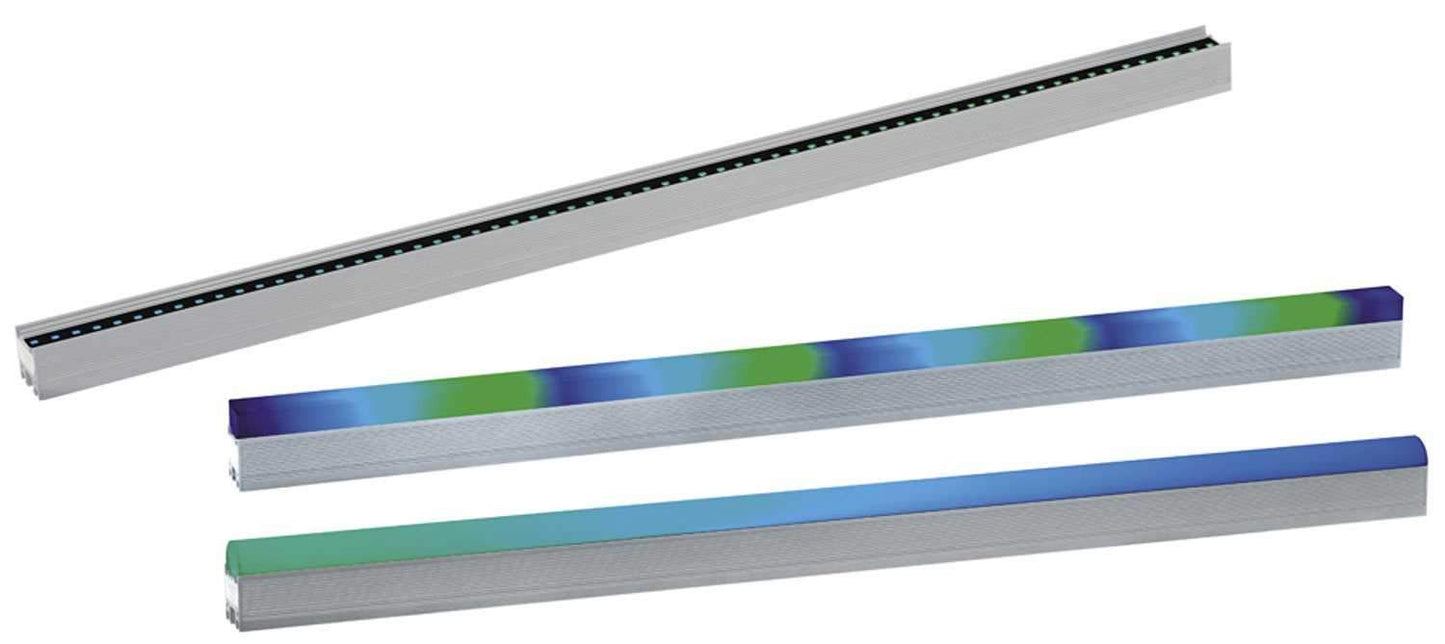

Martin Exterior PixLine 10 320mm Square Diffuser Video LED

The Exterior PixLine 10 is a linear LED video fixture for media facades and creative installations. The Exterior PixLine 10 can be combined with a wide variety of lenses and diffusers for the right look for every application. The Exterior PixLine 10 is driven by the Martin P3 System Controller family for easy setup and video display, and it is also backwards compatible with DMX. The fixtures can be fully customized in terms of length and color to match every installation requirement, while the power source is hidden.

• Wide variety of pixel pitch, lens and diffusers options for flexibility of look
• Fully outdoor-rated and customizable in terms of length and color
• 10 mm pixel pitch
• 250 cd per meter calibrated
• 750 lumen per meter calibrated
• High-quality 16-bit per color image processing technology
• Pixel-level brightness and color calibration for optimal image quality
• P3/DMX controllable (automatic protocol detection)Intuitive mapping and addressing via P3 System Controller
• Combined power/data input (single cable for power and data input)
• Supported by integrated power and data processor (P3 PowerPort 1500 or P3 PowerPort 1000 IP) and simple cabling system
• Easy setup and cabling for clean installation

• Control options: Martin P3 System Controller via Martin P3 PowerPort 1500/P3 PowerPort 1000 IP, and/or DMX
• Protocol detection: Automatic
• Control modes: RGB, basic and pixel-level
• DMX channels: 3/10/103/391
• Setting and addressing: Martin P3 System controller or RDM-compliant controller
• Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
• Color and intensity calibration: Pixel-level
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Firmware update: Via P3 System Controller

• Device status: Multi-color visual indication
• Device test and reset: Magnetic pushbutton to call up local test patterns and reset device

• Square Diffuser
• 50 000 hours (to >70% luminous output)*
• *Figure obtained under manufacturer's test conditions

• Color resolution: 16 bits per color (48 bit per pixel)
• Viewing angle: 120° x 120°
• Pixels per meter: 100
• Pitch (pixel center-to-center): 10.00 mm
• Luminous intensity, calibrated mode: 250 cd per meter
• Total output, calibrated mode: 750 lumens per meter
• Total output, calibrated mode: 8 333 nits (modules spaced 30 mm center-to-center)

• Brightness control
• Gamma correction and control
• Color temperature control
• Color space control
• Calibration processing
• Synchronization

• P3 (via Martin P3 PowerPort) or DMX

• Base: Extruded aluminum profile
• Color: Alu Grey (customized colors available on project basis)
• Protection rating: IP66
• RoHS compliant

• Orientation: Any
• Mounting: Slot for locking nuts on back of profile (M6) and/or installation mounting profile

• Power and data input: 6-pin custom (BBD) IP65-rated
• Power and data thru: 6-pin custom (BBD) IP65-rated

• Nominal input voltage: 48 V DC
