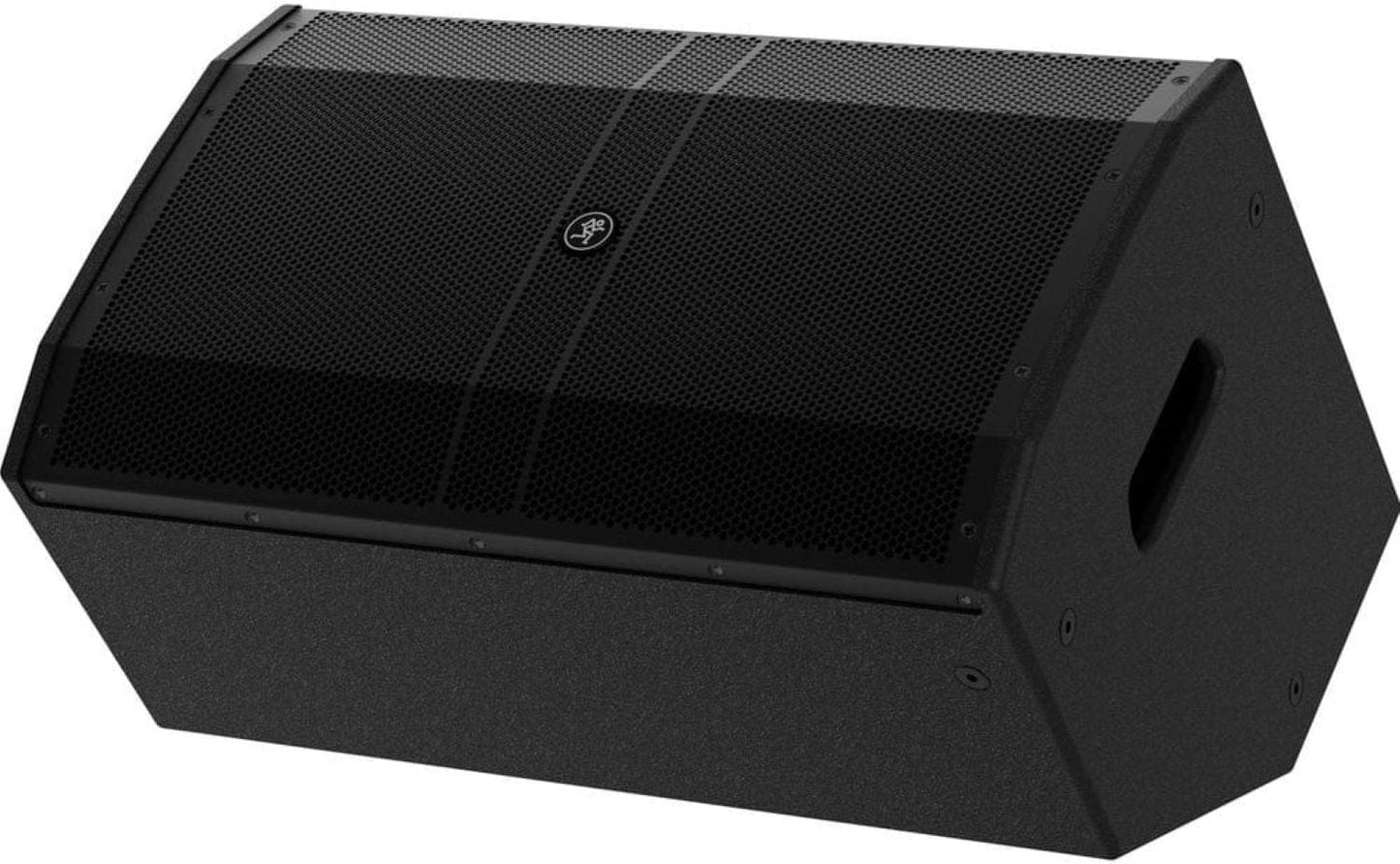

Mackie DRM212-P 12-Inch Passive Speaker

The Mackie DRM212-P is a 1600W 12" powered loudspeaker designed for medium-sized theaters to large music venues as well as DJs, clubs, houses of worship, and rental systems. A professional-grade 12” woofer and 1.4" compression driver are housed in the texture-coated 15mm plywood cabinet and when combined, offer a frequency range of 50 Hz to 20 kHz (-10 dB) with a peak SPL of 128 dB. The rear panel includes parallel SpeakON inputs. The versatile enclosure is angled for use as a high-performance floor monitor, while the dual-angled pole-mount provides optimal coverage and minimal reflections in most venues. The Mackie DRM212-P is flyable via the eight integrated M10 fly points.

Features

• High-performance professional loudspeaker designed for high-demand applications
• Custom-designed transducers
• 1.4” Titanium diaphragm compression driver offers maximum transparency and clarity
• 12” high-excursion woofer offers increased sensitivity, bass response, and reliability to withstand the most demanding live performances and music
• Precision internal crossover
• Premium grade components and precise tuning provide maximum clarity and performance
• Parallel SpeakON inputs
• Angled cabinet design allows for use as a high-performance floor monitor
• Road-worthy 15mm plywood construction and internal bracing offer optimal acoustic performance
• Dual-angle pole-mount provides optimal coverage and minimal reflections in most venues
• Flyable – 8 x M10 flypoints for vertical orientation
• Touring-grade textured cabinet coating
• Powder-coated heavy-gauge steel grille
• Power Handling (Continuous / Program / Peak): 400W / 800W / 1600W
• Optional SP260 Loudspeaker Processor provides custom EQ curves and crossovers for your DRM Passive System

Specifications

• Configuration
• Passive
• Total Power Capacity
• 400 W RMS
• 800 W Program
• 1600 W Peak

Drivers

• HF Driver
• 1 x 1.4" / 35.6 mm
• LF Driver
• 1 x 12" / 30.5 cm Woofer

Performance

• Frequency Response
• 50 Hz to 20 kHz -10 dB
• Maximum SPL
• 128 dB
• Coverage Angle
• 90° H x 60° V

Connectivity

• Audio I/O
• 2 x speakON NL4 Input

Physical

• Mounting
• 8 x M10
• Pole Socket (Dual Angle)
• Construction Material
• Metal Grille, Plywood
• Dimensions
• 25 x 14.7 x 16.2" / 635 x 373.4 x 411.5 mm
• Weight
• 44.2 lb / 20 kg
