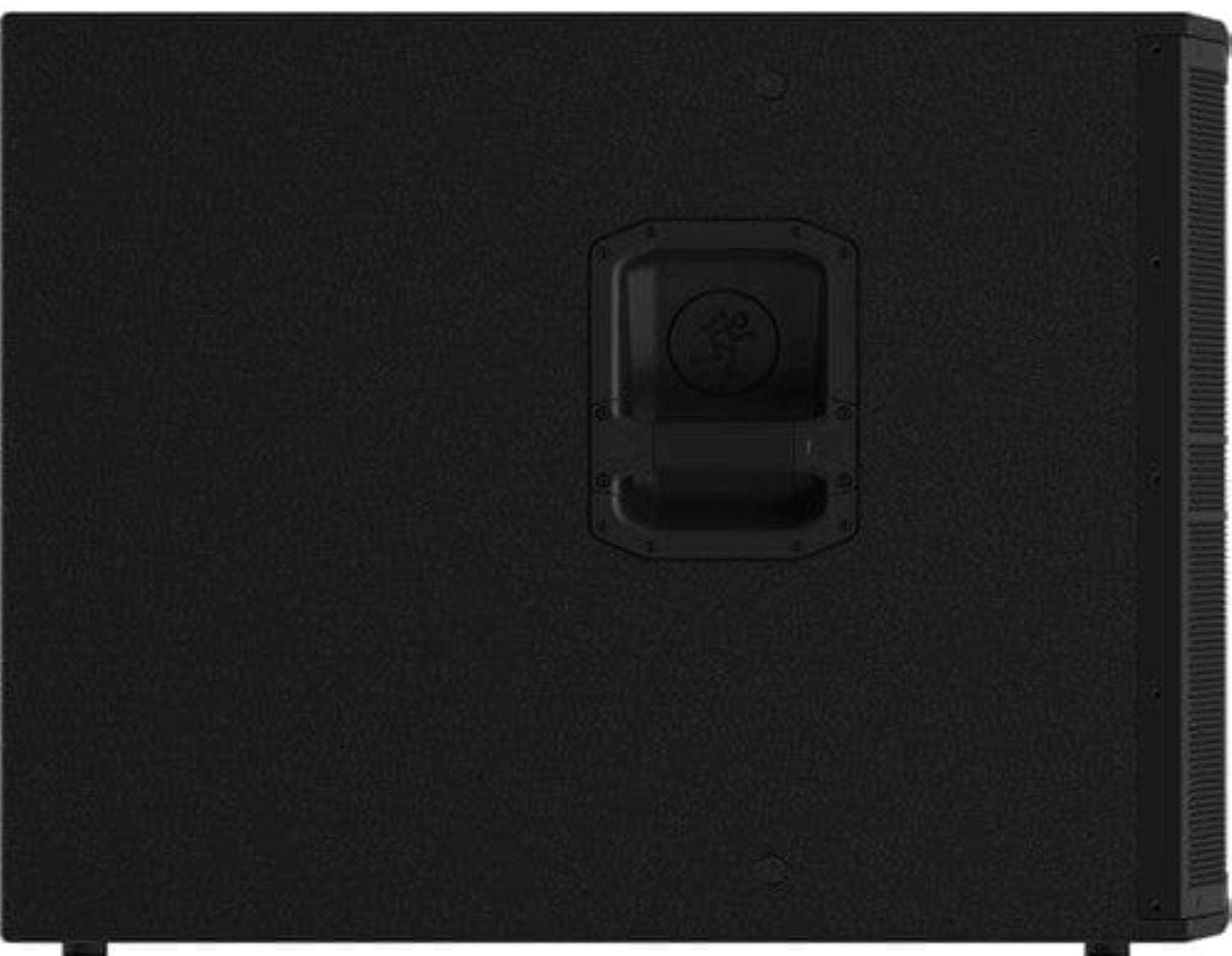

Mackie DRM18S-P 18-Inch Passive Subwoofer

The Mackie DRM218S-P is a 2000W 18" passive subwoofer designed for medium-sized theaters to large music venues as well as DJs, clubs, houses of worship, and rental systems. A professional-grade 18” woofer is housed in the texture-coated 15mm plywood cabinet with internal bracing to provide optimal acoustic performance, while the front-ported direct radiating design provides maximum punch and a deep low-frequency response with a range of 35 to 150 Hz (-10 dB) and a peak SPL of 135 dB. The rear panel includes parallel SpeakON inputs, while the integrated pole cup is designed for use with DRM Series loudspeakers or other pole-mounted speakers. The Mackie DRM18S-P is flyable via optional FB100 Fly Bar.

Features

• 18” high-excursion woofer offers increased sensitivity, bass response, and reliability to withstand the most demanding live performances and applications
• Front-ported, direct-radiating design provides maximum punch and deep low-frequency response
• Parallel SpeakON inputs
• Road-worthy 18mm plywood construction and internal bracing offer optimal acoustic performance
• Pole cup for use with DRM Series loudspeakers and other pole mountable speakers
• Flyable via optional FB100 Fly Bar
• Touring-grade textured cabinet coating
• Powder-coated heavy-gauge steel grille
• Power Handling (Continuous / Program / Peak): 500W / 1000W / 2000W
• Optional SP260 Loudspeaker Processor provides custom EQ curves and crossovers for your DRM Passive System

Specifications

• Configuration
• Passive Subwoofer
• Total Power Capacity
• 500 W RMS
• 1000 W Program
• 2000 W Peak

Drivers

• LF Driver
• 1 x 18" / 457.2 mm Woofer

Performance

• Frequency Response
• 40 Hz to 120 Hz -3 dB
• 35 Hz to 150 Hz -10 dB
• Maximum SPL
• 135 dB

Connectivity

• Audio I/O
• 2 x speakON NL4 Input

Physical

• Mounting
• 1 x Pole Socket
• Bracket Point
• Construction Material
• Metal Grille, Plywood
• Dimensions
• 23 x 23.3 x 31.1" / 584.2 x 591.8 x 789.9 mm
• Weight
• 75.7 lb / 34.3 kg

Packaging Info

• Package Weight
• 89 lb
• Box Dimensions (LxWxH)
• 36 x 28.9 x 25"
