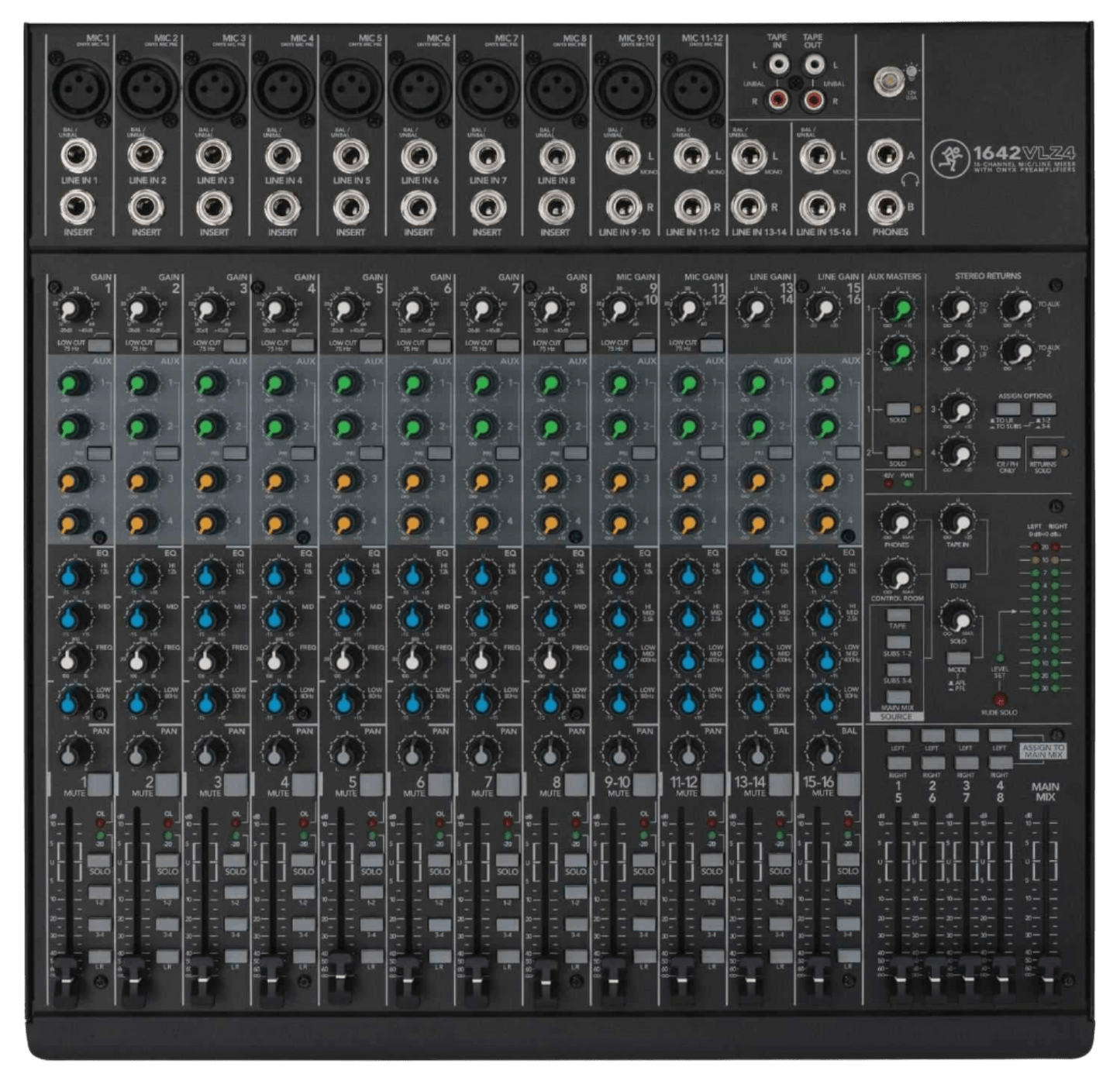

Mackie 1642VLZ4 Compact Mixer
The 16-channel 1642VLZ4 delivers the proven performance of Mackie Onyx mic preamps in a compact 4-bus mixer design perfect for bands, clubs and more. From every input to every output, the 1642VLZ4 is designed to provide the highest headroom and lowest noise possible for maximum signal integrity. With features like an expanded return section for no-hassle system integration plus a dedicated control room section, the 1642VLZ4 is the go-to mixer choice for any application that demands flexibility and professional performance.
Features:
- 16-channel mixer featuring Mackie signature high-headroom/low-noise design
- 10 boutique-quality Onyx mic preamps
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0.0007% (20Hz - 50kHz)
- Phantom power for studio condenser mics - Improved RF rejection perfect for broadcast applications
- Phantom power for condenser mics
- 16 high-headroom line inputs with +4/-10 operation control
- 4 aux sends, level, pan and PFL solo on each channel
- 3-band EQ (80Hz, 2.5kHz, 12kHz)
- 18 dB/oct 75Hz low-cut filter on mic input channels
- 60mm long-wearing log-taper faders
- 4 stereo returns for connecting FX processor or other stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary control resist dust and grime
- "Built-Like-A-Tank" rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient "at-a-glance" visual feedback
- Rack-mountable design using optional rack ear kit
- Multi-voltage power supply for worldwide use
- Size (H x W x D) in Normal Pad Position: 16.7" x 16.6" x 5.2" (425mm x 421mm x 131mm)
- Weight: 18.2 lbs (8.3kg)
