• Graphite : 960-001697
• Off-White : 960-001729

Rally Board 65 (device only)

• Width: 1500 mm
• Height: 989 mm
• Depth: 76 mm
• Weight: 46 kg
• VESA Standard MIS F: 400 x 400 mm and 400 x 200 mm

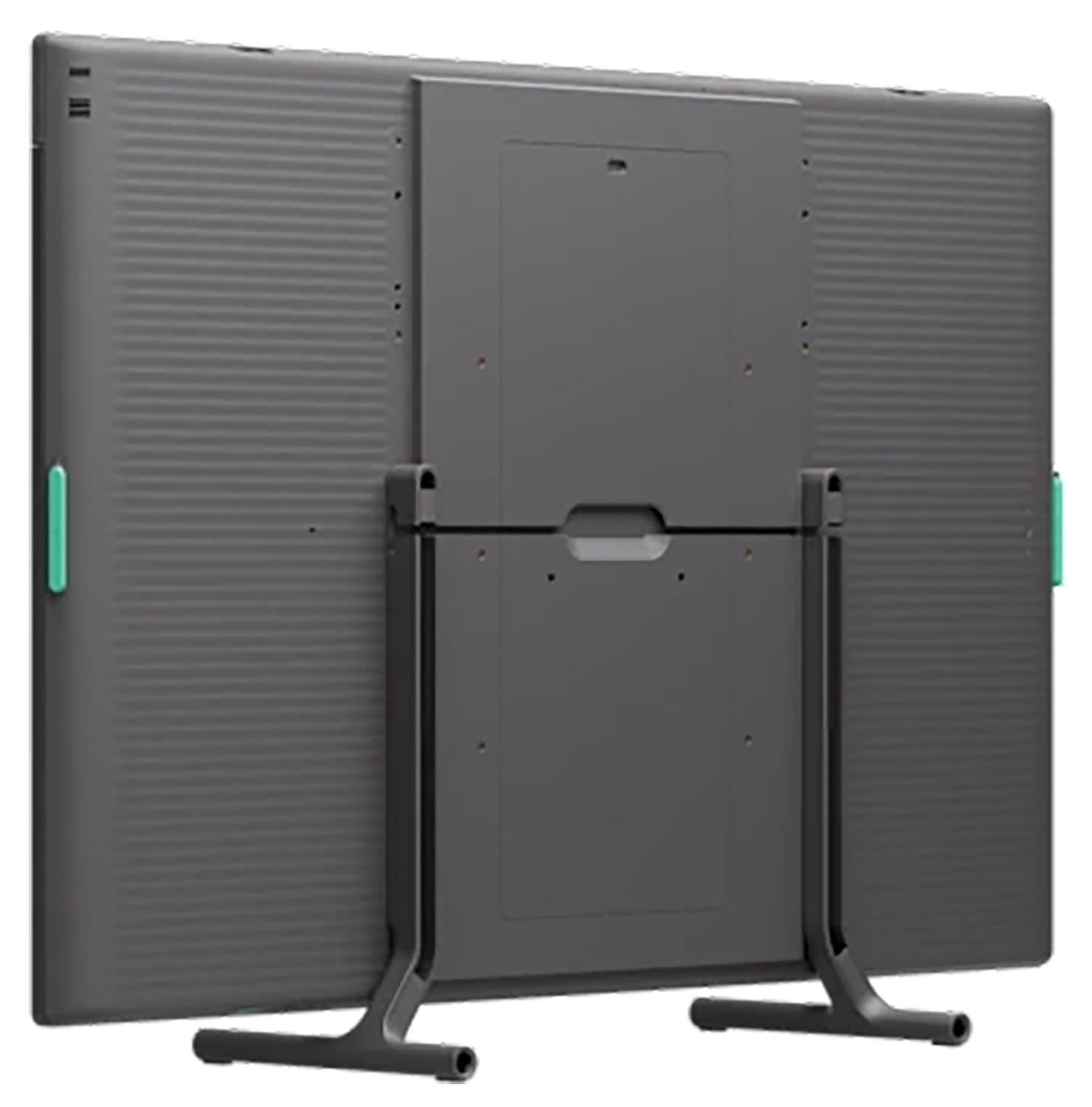

Rally Board 65 with included table stand

• Width: 1500 mm
• Height: 1051 mm
• Depth: 395 mm
• Weight: 50 kg

General

• Built-in Components: Front microphone array, digital PTZ camera, dual full-range ported speakers, dual tweeters, ultrasonic emitter, cable management and retention system, integrated motorized privacy shutter, depth mapping camera, radar motion sensing, and environmental sensors
• Support for 2nd display, up to UHD 4K60 (3840 x 2160)
• Automatic motorized privacy shutter
• HDMI ingest at up to 4K60 (3840 x 2160) resolution
• Network Protocol Support: IPv4, IPv6
• Proxy support: IP-based proxy, FQDN-based proxy, proxy using PAC file

System Requirements

• 100 - 240v
• Internet Connection: Wired or wireless
• Room solution software license (not included)

Display

• 65-inch LCD screen
• IR-based touch with 20 points of touch
• UHD 4K (3840 x 2160) screen resolution
• 16:9 aspect ratio
• Anti-glare coating
• Anti-fingerprint coating
• Contrast ratio: 5000:1 Typical
• Brightness: 400 nits Typical

Camera

• Main camera
  • Imaging sensor: 1-inch, 20.3MP
  • Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
  • Automatic motorized tilt based on device orientation
  • Zoom: 4X HD digital zoom
  • Distortion-corrected field of view
    • Diagonal: 115.7°
    • Horizontal: 103.3°
    • Vertical: 60.7°
• Depth mapping camera
  • Diagonal Field of View: 145°
  • Horizontal Field of View: 121°

Speakers

• Dual full-range ported speakers
  • Driver: 2 x 70 mm
  • Sensitivity: 89 dB SPL at 1W/0.5 m
  • Rated Power: 8W
  • THD at 1W, 1 kHz <2%
• Dual high-frequency tweeters
  • Driver: 2 x 31 mm
  • Sensitivity: 93 dB SPL at 1W/0.5 m
  • Rated Power: 8W
  • THD at 1W, 4 kHz < 2%

Microphones

• Front microphone array
  • Frequency Response: 90Hz-16KHz
  • Sensitivity: -36 dB FS +/-1 dB @ 1 Pa
  • Microphone data rate output: 48KHz
  • Pickup Range: Up to 7 m
  • RightSound 2
    • AI Speech Enhancement removes transient and stationary noise
    • Beamforming with AI Beam Selection
    • AI Speech Detection
    • AI Direction of Speech
    • Acoustic Echo Cancellation and Residual Echo Suppression

Sensors

• Temperature
• Humidity
• Volatile organic compounds
• Carbon dioxide
• PM2.5
• PM10
• Radar
• Ambient light
• For the latest information on certification and compatibility, see www.logitech.com/support/vc-certifications

Interfaces

• 1 x HDMI Out: up to 4K60
• 1 x HDMI In: up to 4K60
• USB-A: 3 x USB 3.1
• USB-C: 1 x Type C USB 3.1 with DP Alt Mode
• Line-Out: 3.5 mm line-level audio output
• Network: 10/100/1G Ethernet
• Wi-Fi: 802.11a/b/g/n/ac/ax
• Bluetooth: Bluetooth Low Energy
• EXT: RJ45 reserved for future use

Power and Cables

• Power supply: Built-in auto-sensing 100-240V
• AC Cable: 3 m

Environmental

• Operating temperature: 0-35 °C
• Storage temperature: -40-60 °C
• Humidity: 10-95%

Security

• File-based encryption: AES-256
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Device Access: Authenticated using API
• Key Protection: Arm TrustZone, RPMB

Accessories

• Rally Board 65 Cart
• Active USB Cable
