VS-4X 4x1 Balanced Stereo Mechanical Switcher

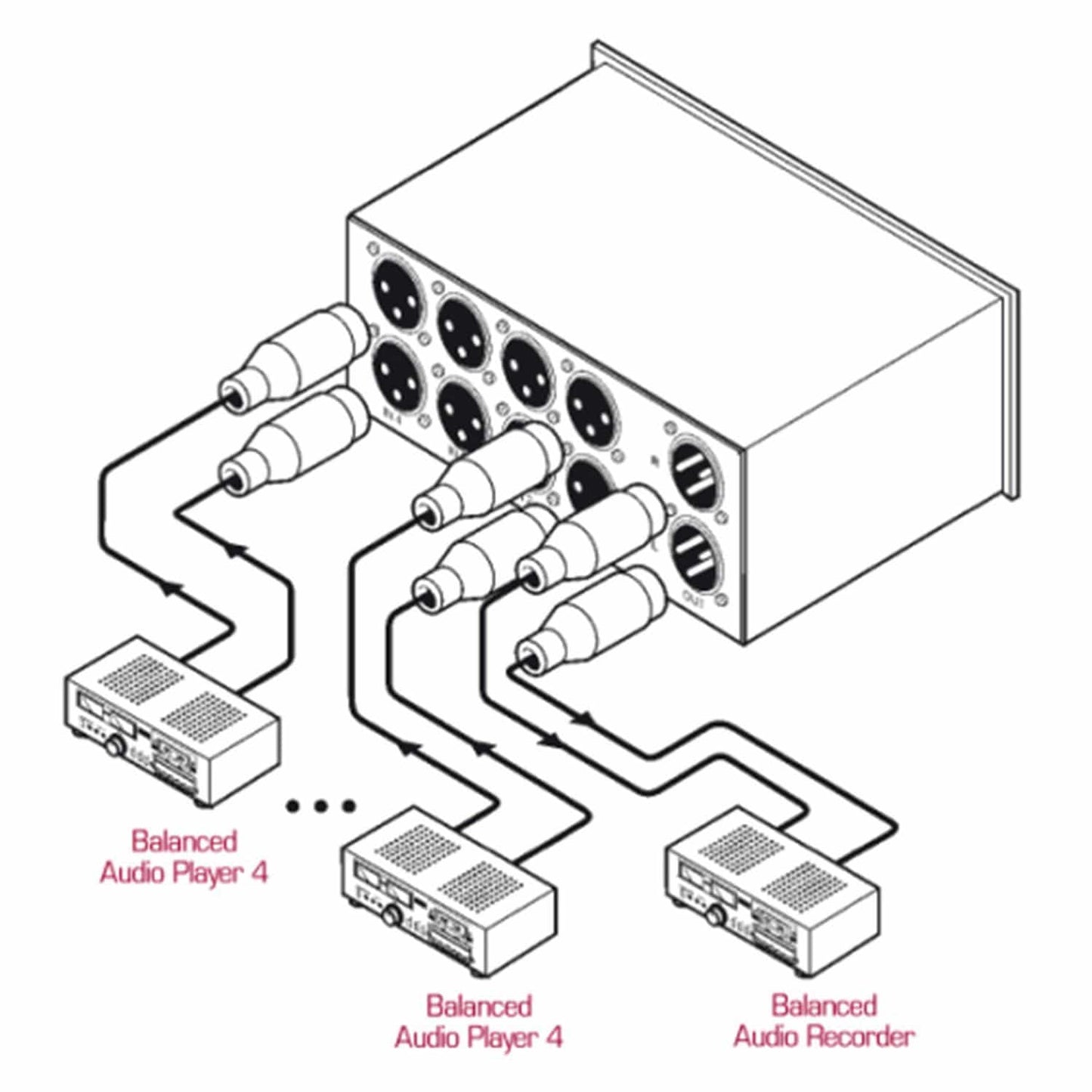

The VS-4X is a high performance switcher for balanced stereo audio signals on XLR connectors. It switches any one of four stereo signals to a single stereo output.
Features:
- Mechanical (Passive) Switching - No power required
- Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 2U rack space with the optional RK-4X adapter
Specifications:
- INPUTS: 4 stereo balanced audio, +4dBm typical, on XLR connectors.
- OUTPUTS: 1 stereo balanced audio, +4dBm typical, on XLR connectors.
- SWITCHING SYSTEM: Mechanical, "Break-before-make".
- BANDWIDTH (-3dB): 100 kHz.(audio)
- CROSSPOINTS: 4 x 2 for audio stereo.
- SIGNAL LEVELS: Up to +30dBm.
- DIMENSIONS (W,D,H): 15.3cm x 6.6cm x 7.6cm (6" x 2.6" x 3") W, D, H.
- WEIGHT: 0.57kg (1.27lbs.) approx.
- OPTIONS: RK-4X rack adapter.
Applications:
- Audio editing, monitoring and production systems.
- Security, CCTV, home theater and presentation applications.
- Mic switching in field or studio applications.
