Kramer Composite Video - Twisted Pair Transmitter

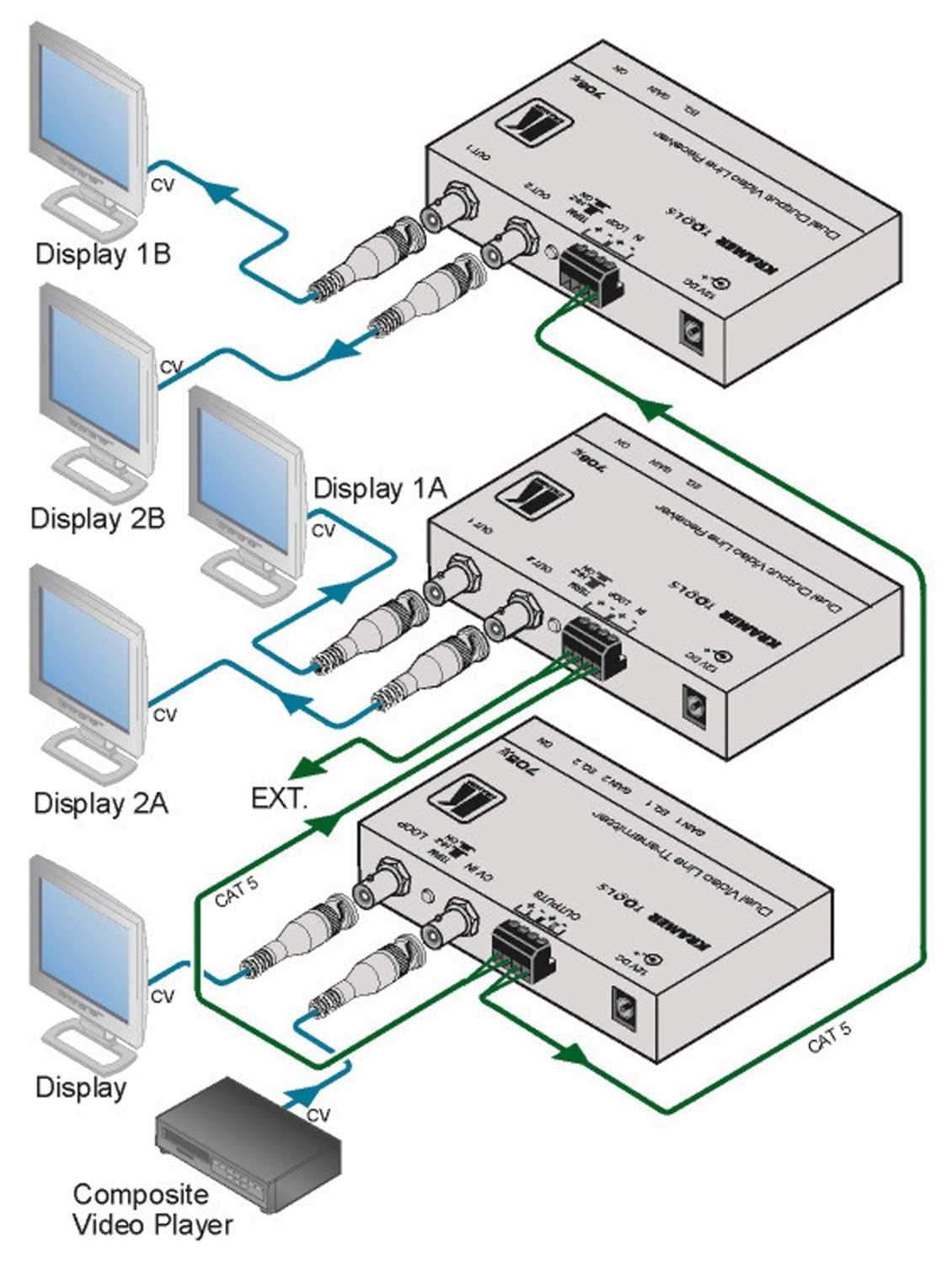

The 705xl is a twisted pair transmitter for composite video signals. The 705xl converts a composite video signal to two twisted pair signals and the 706xl receiver converts the twisted pair signals back into two composite video signals.Bandwidth - 108MHz (-3dB).
Features:- Twisted Pair Input/Outputs - Terminal block connector.
- Looping Input.
- Level (Gain) and EQ (Peaking) Controls.
- Selectable Input Signal Termination.
- Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
- System Range - Up to 1000m (3200ft).
- Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space.
- Simplification of security and CCTV installations.
- Presentation and other wall-plate mounted systems.
- Simple and quick studio wiring.
- INPUT: 1 composite video 1Vpp/75 Ohm on a BNC connector; 1 loop 1Vpp/75? on a BNC connector.
- OUTPUT: 2 twisted pair outputs on terminal block connectors.
- BANDWIDTH (-3DB): 108MHz (-3dB).
- DIFF. GAIN (PAIR): 0.08%.
- DIFF. PHASE (PAIR): 0.07Deg.
- K-FACTOR (PAIR): 3.1%.
- S/N RATIO(PAIR): 57dB.
- GAIN (EQ.): 0 to 3.5dB @5MHz.
- COUPLING: DC.
- POWER CONSUMPTION: 12V DC, 200mA.
- DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") W, D, H.
- WEIGHT: 3kg (0.66lbs) approx.
- INCLUDED ACCESSORIES: Power supply, mounting bracket.
