Description

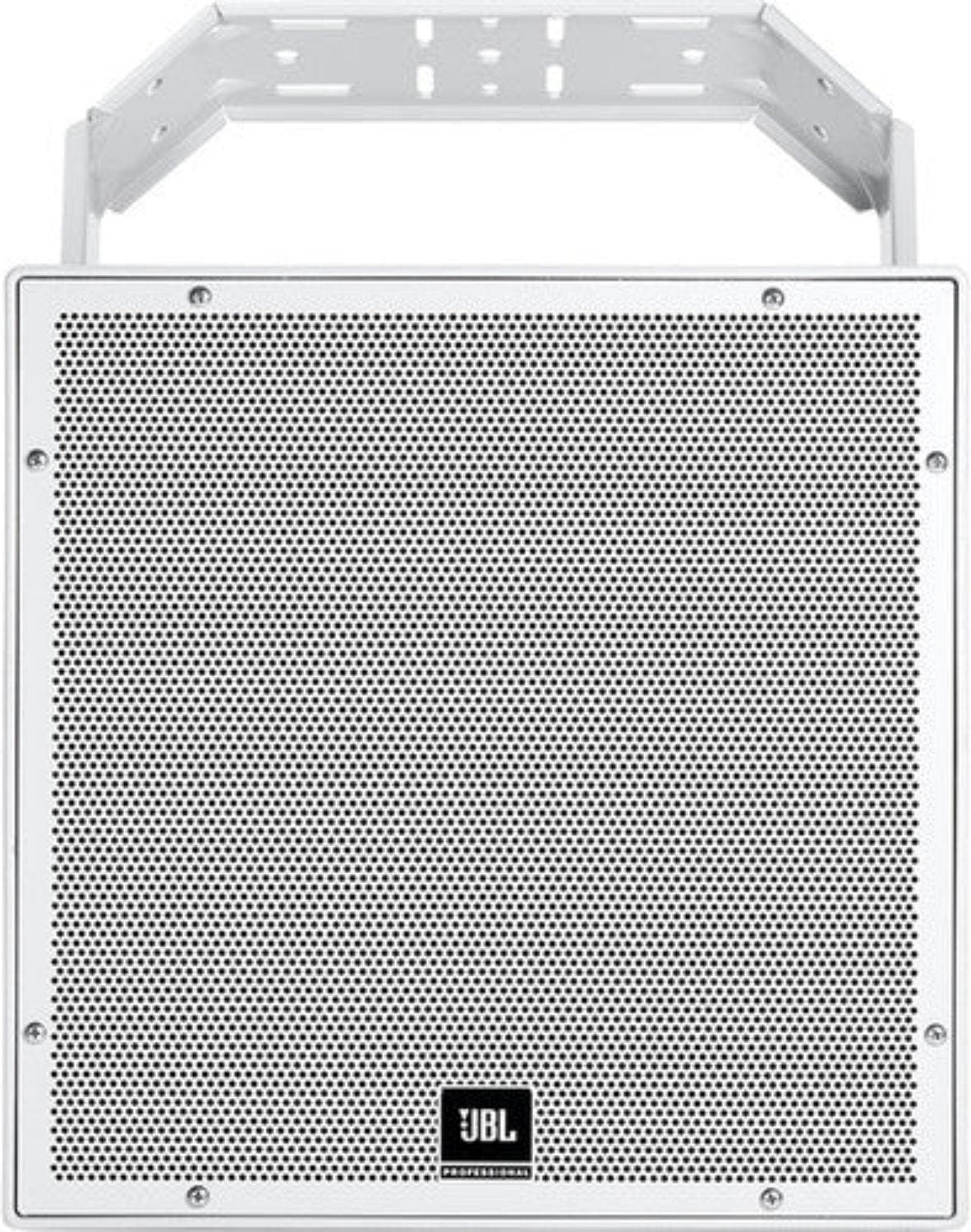

JBL AWC159 All-Weather 15-Inch 2-Way 90 x 90 Degree Co-axial Speaker

The AWC159 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system, ideal for speech and music in a wide variety of applications. This versatile speaker is perfect for sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Features:

  • Weather Resistance: Highly weather-resistant IP56 rating
  • Coverage Pattern: Consistent 90° x 90° broadband pattern control
  • Components:
    • 380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil
    • 38 mm (1.5 in) diaphragm compression driver with patented design and high-temperature polymer diaphragm
  • Sound Quality:
    • Extraordinary clarity for speech, with extended frequency response for music
    • Advanced high-slope crossover network for constant coverage and smooth, natural midrange
  • Power Handling:
    • 500 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability
    • High-power passive crossover network
  • Frequency Response: 52 Hz – 20 kHz
  • Power Options:
    • 300 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance

Specifications:

  • Frequency Range (-10 dB): 52 Hz – 20 kHz
  • Frequency Response (±3 dB): 80 Hz – 20 kHz
  • Coverage Pattern: 90° x 90°
  • Directivity Factor (Q): 11.1 (1 kHz – 16 kHz)
  • Directivity Index (DI): 9.7 dB (1 kHz – 16 kHz)
  • System Power Rating:
    • 500 W (2000 W peak), 2 hrs.
    • 300 W (1200 W peak), 100 hrs
  • Sensitivity (2.83V @ 1m): 98 dB (Ave. 80 Hz – 20 kHz)
  • Maximum SPL (1m):
    • Direct 8Ω: 125 dB (peaks of 131 dB)
    • 300 W Tap: 123 dB (peaks of 129 dB)
  • Crossover Network: 1.5 kHz, 4th order (24 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
  • Nominal Impedance: 8 ohms
  • Transformer Taps:
    • 70V: 300W, 150W, 75W, 38W
    • 100V: 300W, 150W, 75W
  • LF Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil
  • HF Driver: 2408H-2 38 mm (1.5 in) diaphragm and voice coil diameter, patented high-temperature annular polymer diaphragm, copper-clad aluminum coil, fluid-cooled
  • Enclosure: ABS with glass enclosure, heavily braced
  • Attachment:
    • Two M10 (course-thread) points for included U-bracket
    • M6 secondary safety attachment point on back panel
  • Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing
  • Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm² (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
  • Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs)
  • Dimensions:
    • Cabinet: 486 x 486 x 479 mm (19.1 x 19.1 x 18.8)
    • Cabinet depth with gland nut: 507 mm (19.9 in)
    • Including bracket extending to back: 546 mm (21.5 in)
  • Colors: Available in gray (similar to Pantone 420C) and black (-BK)
  • Included Accessories: U-bracket, matches loudspeaker color (gray or black), zinc-rich extra-thick powder coated, steel
  • Crossover Modes: Passive
  • Nominal LF Driver Impedance: 8 ohms
  • Suspension Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel
  • Net Weight (each): 20.6 kg (45.5 lbs)
