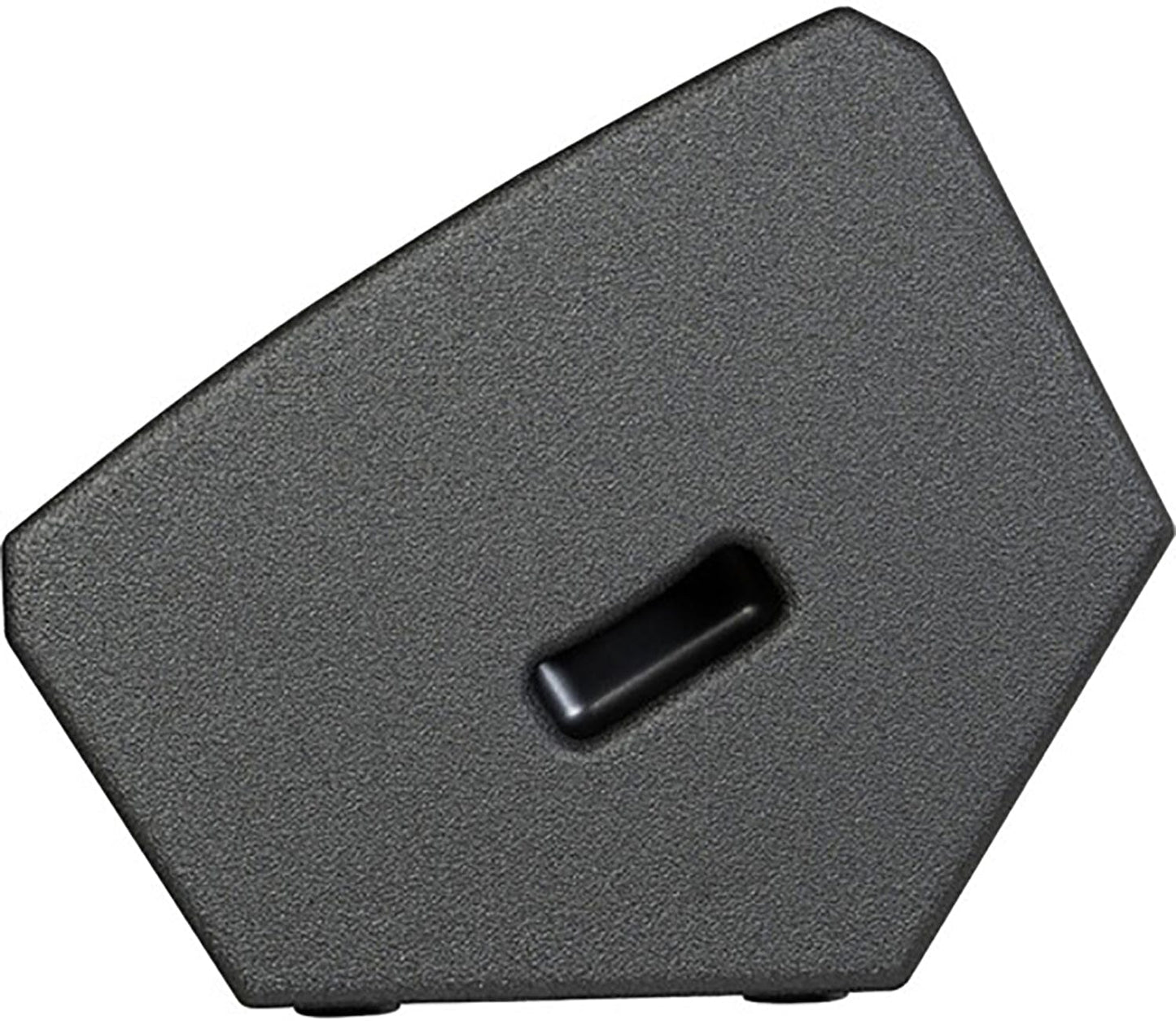

HK Audio Linear 9 112 XA 2-Way 700Watt 12Inch Powered Speaker
The dispersion angle of each speaker’s horn is optimised for its intended use. The 12" LINEAR 9 112 XA speaker offers a dispersion angle of 70° x 50 for medium sound coverage depths. It can be rigged either via the rigging points (steel cables or chains in combination with the AP-8 attachment point) or with the TB-28N tilt bracket.
Features:
- 700W RMS / 1400W Program
- 67 Hz to 19 kHz Frequency Response
- 131 dB Maximum SPL (Peak)
- 70 x 50° Rotatable Horn
- Network Controllable DSP with 4 Presets
- Flat, Monitor, Low Cut, Remote
- DSP: 10-Band Parametric EQ, Mute
- HPF, LPF, Polarity, Level, Delay, Limit
- Lightweight and Easy to Transport
Specifications:
- Max. SPL @ 10% THD: 128 dB half space (70 Hz – 12 kHz averaged)
- Max. SPL peak @ 10 % THD: 131 dB half space
- Frequency response +/-3 dB: 67 Hz – 19 kHz
- Frequency response -10 dB: 62 Hz – 20 kHz
- Power amp output (RMS): 700 W
- Amp type: Class D - biamped
- Low-/mid speaker: 1x 12", 2.5" voice coil
- HF driver: 1", 1.7" voice coil
- Horn directivity: 70° x 50° CD horn, rotatable
- Active crossover frequency: 1.6 kHz FIR X-over with 60 dB/oct.
- Maximum input level: +20 dBu
- Analog inputs: 1x XLR combo balanced
- Analog thru: 1x XLR balanced
- DSP Out: 1x XLR balanced
- Network port: Ethercon RJ45, 1x In, 1x Thru
- Filter presets: Flat, Monitor, Low Cut, Remote
- Remote software: DSP CONTROL (Windows, macOS)
- DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
- Sample rate: 96 kHz
- System latency: Less than 2.6 ms
- Mains connector: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
- Power consuption: 1 A / 100–240 V nominal according to EN 62368-1
- Angles up (Monitor angle): 30°
- Pole mount: DuoTilt 3°/7°
- Rigging points: 5x M8 (AP-8)
- Carrying handles: 1x SingleGrip, 1x MultiGrip
- Housing: Birch multiplex
- Finish: PU coating black
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD): 37 x 67 x 31 cm 14-9/16 x 26-3/8 x 12-13/64"
- Weight: 20.5 kg / 45.2 lbs
