HK Audio Linear 7 112 FA Active Full-Range 2000 Watt 12 Inch Speaker
The LINEAR 7 112 FA active and network-compatible full-range speaker delivers more sound pressure in the low-frequency range thanks to its larger cabinet volume. With the Bass Boost preset optimised for each speaker, the low-frequency range can be boosted as required.
Features:
- Advanced Milan/AVB Networking
- HK Audio DSP Control with Filter Presets
- 10-Band Parametric EQ, HP/LP Filter
- Polarity, Level, Delay, Limiter, Mute
- Combo XLR-1/4" Input + XLR & DSP Out
- 64 Hz to 19 kHz Frequency Response
- 131 dB Max SPL Output
- 70 x 50° CD Horn, Rotatable
- Dual Tilt Pole Cup + Two Handles
Specifications:
- Max. SPL @ 10% THD: 128 dB half space (70 Hz – 12 kHz averaged)
- Max. SPL peak @ 10 % THD: 131 dB half space
- Frequency response +/-3 dB: 64 Hz – 19 kHz
- Frequency response -10 dB: 55 Hz – 20 kHz
- Power amp output (peak power): 2000 W
- Amp type: Class D - biamped
- Low-/mid speaker: 1x 12", 2.5" voice coil
- HF driver: 1", 1.7" voice coil
- Horn directivity: 70° x 50° CD horn, rotatable
- Active crossover frequency: 1.6 kHz FIR X-over with 60 dB/oct.
- Maximum input level: +20 dBu
- Analog inputs: 1x XLR combo balanced
- Analog thru: 1x XLR balanced
- DSP Out: 1x XLR
- Network port: Ethercon RJ45, 1x In, 1x Thru
- Filter presets: Flat, Boost, Low Cut, Remote
- Remote software: DSP CONTROL (Windows, Mac OS)
- DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
- Sample rate: 96 kHz
- System latency: Less than 2.6 ms
- Mains connector; 1x Powercon NAC3 In, 100–240 V
- Power consumption: 1 A / 100–240 V nominal according to EN 62368-1
- Clustering angle: 70°

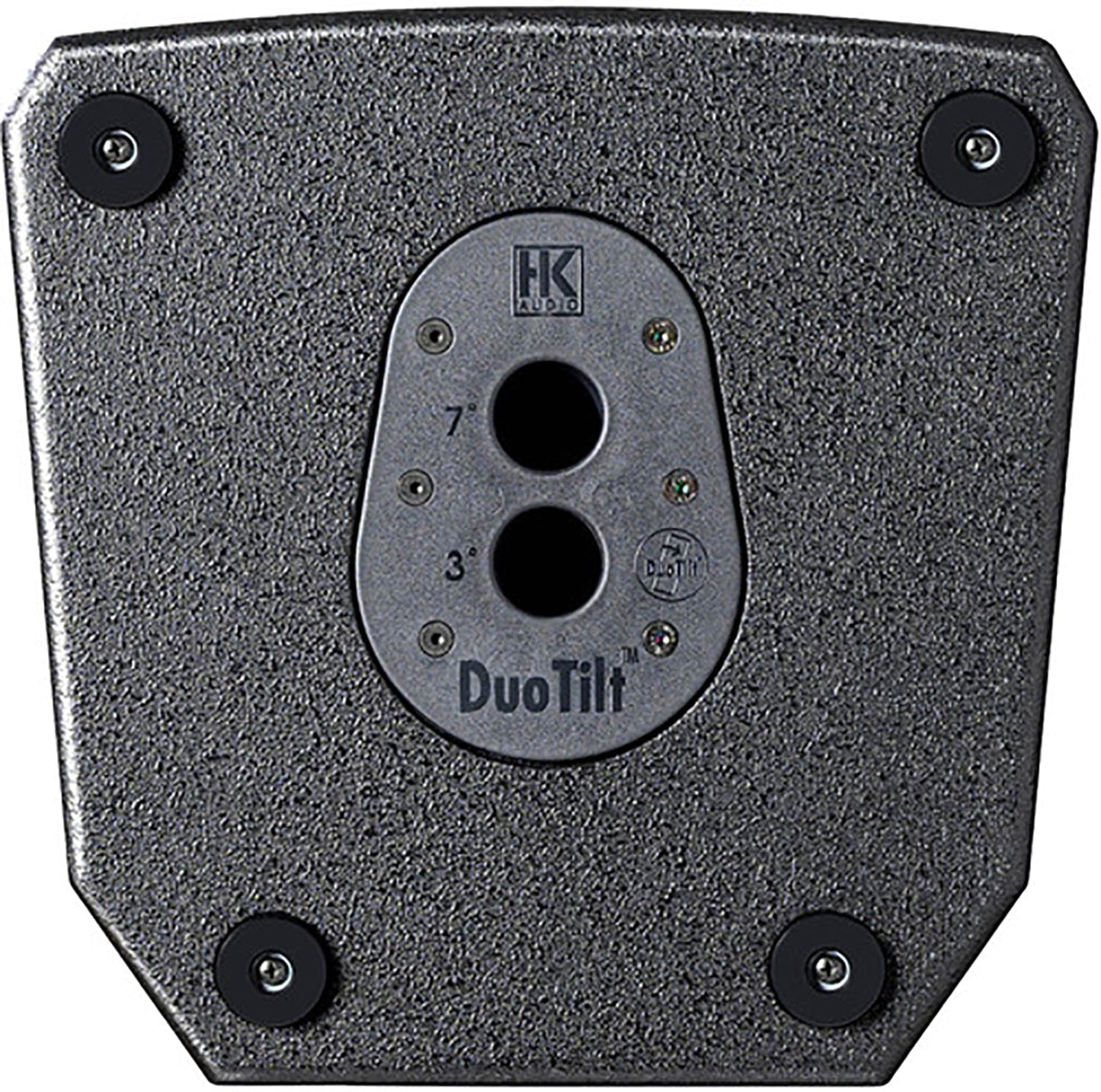

- Pole mount: DuoTilt 3°/7°
- Rigging points: 4x M8 (AP-8)
- Carrying handles: 2x MultiGrip
- Housing: Hybrid (birch multiplex/MDF)
- Finish: Black acrylic enamel
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD): 37 x 67 x 37 cm 14-9/16 x 26-3/8 x 14-9/16"
- Weight: 23 kg / 50.7 lbs
