HK Audio Linear 5 MKII 118 Sub HPA 1500 Watt 18 Inch Subwoofer

More HK Audio products

Write a review Q&A SKU: L5MKII-118SUBHP Solotech ID#: 132947
1 of 7
Unfortunately the HK Audio Linear 5 MKII 118 Sub HPA 1500 Watt 18 Inch Subwoofer is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Need help? Contact our product specialists.

View full details
Unfortunately the HK Audio Linear 5 MKII 118 Sub HPA 1500 Watt 18 Inch Subwoofer is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Need help? Contact our product specialists.

Description

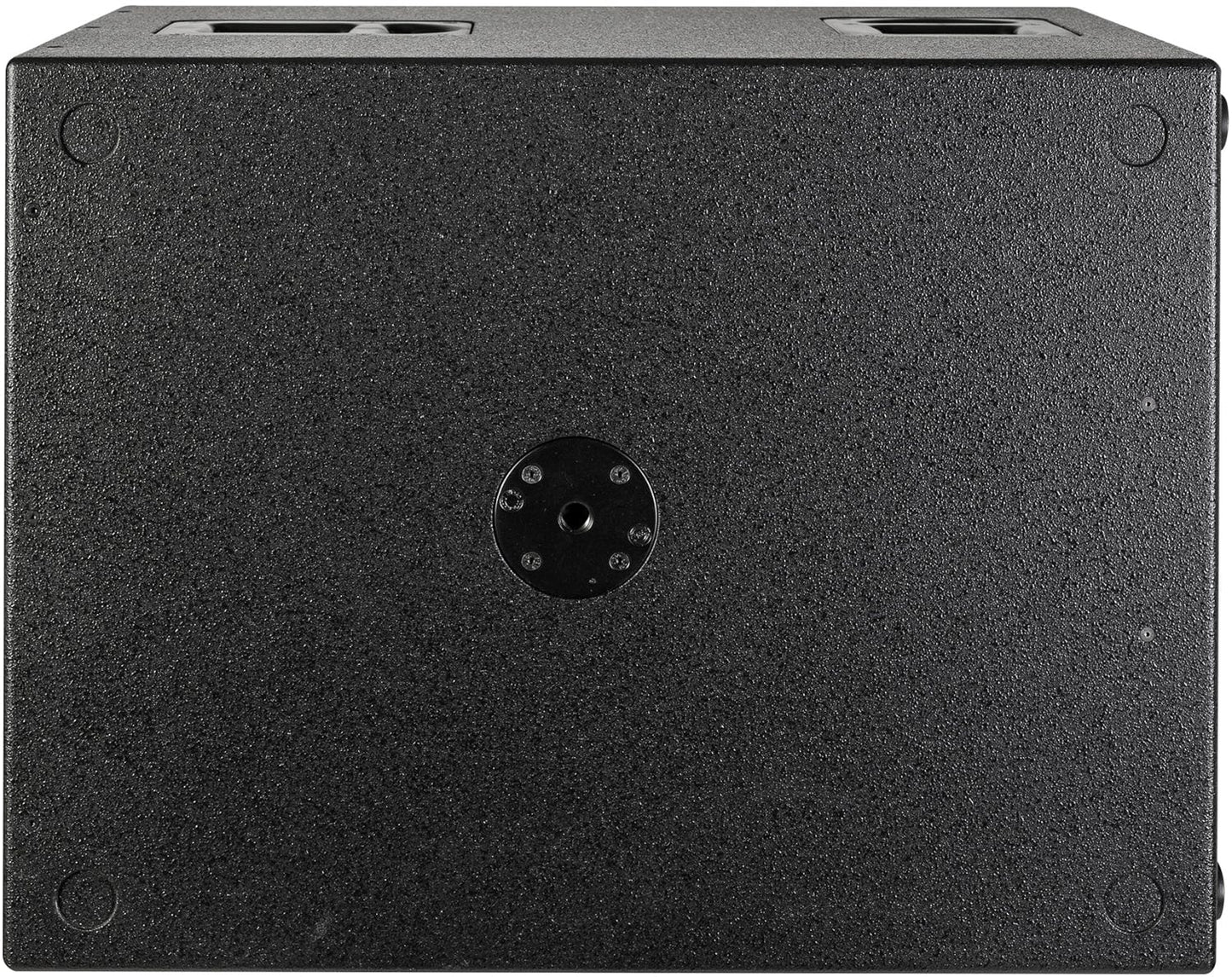

HK Audio Linear 5 MKII 118 Sub HPA 1500 Watt 18 Inch Subwoofer

The standard bass-reflex subwoofers form the solid foundation of the new LINEAR 5 MK II systems with their uncompromising performance and dry, defined bass down to the lowest of the lows. Cardioid settings that can be simply selected via a preset give the user an enormously expanded range of options for system configuration and access to the professional class. 2.1 setups are simplified thanks to the stereo preamplifiers.

Most powerful subwoofer in the LINEAR 5 MK II series with significantly more energy in the low-end range. PowerCon connections with link for easy cabling.

Specifications:

  • Max. SPL @ 10% THD: 130 dB half space (36 Hz – 100 Hz averaged)
  • Max. SPL peak @ 10 % THD: 131 dB half space
  • Frequency response +/-3 dB: 36 Hz – X-over
  • Frequency response -10 dB: 33 Hz – X-over
  • Power amp output (rms/peak): 1,500 / 3,000 W
  • Amp type: Class D
  • LF driver: 1x 18", 4" voice coil
  • Maximum input level: +20 dBu
  • Analog inputs: 2x XLR combo balanced
  • Analog thru: 2x XLR balanced
  • DSP Out: 1x XLR balanced
  • Network port: Ethercon RJ45, 1x In, 1x Thru
  • Filter presets: Front, Cardioid 1:1 vertical, Cardioid 2:1 vertical, Remote
  • Remote software: DSP CONTROL (Windows, Mac OS)
  • DSP functions: Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
  • Sample rate: 48 kHz
  • System latency: <= 2.6 ms
  • Mains connector: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
  • Power consumption: 2.5 A / 100–240 V nominal according to EN 62368-1
  • Carrying handles: 4x HK Audio MultiGrip
  • Housing: Birch multiplex
  • Finish: Black acrylic enamel
  • Front grille: 2 mm metal grille backed with black acoustic foam
  • Dimensions (WxHxD): 60 x 60,8 x79 cm 23-5/8 x 23-15/16 x 31-7/64"
  • Weight: 56,8 kg / 125,22 lbs
