HK Audio Linear 5 MKII 115 XA 1200 Watt 15 Inch Active Multifunctional Loudspeaker

The LINEAR 5 MK II XA models are compact, flexible, multifunctional mid/high units with impressive range and crystal clear, assertive sound. Due to the multifunctional enclosure shape with slanted monitor edge, they can be operated as low-feedback stage monitors or as powerful mid/high system units in conjunction with the subwoofers. The rotatable horns ensure optimal dispersion even when used on their side – although rotating the horn is not strictly necessary with the 110 XA and 112 XA due to the narrow dispersion angles. Even on small and narrow stages, precise sound coverage is possible without any problems.

Multifunctional mid/high unit with high level output and noticeable structure-borne sound

Specifications:

• Max. SPL @ 10 % THD: 130 dB half space (70 Hz – 12 kHz averaged)
• Max. SPL Peak @ 10 % THD: 138 dB half space
• Frequency response +/-3 dB: 64 Hz – 12 kHz
• Frequency response -10 dB: 59 Hz – 19 kHz
• Power amp output (RMS/Peak): 600 / 1,200 W
• Amplifier type: Class D – bi-amped
• Low/mid speaker: 1 x 15", 3" voice coil
• HF driver: 1", 1.7" voice coil
• Horn characteristics: 70° x 50° CD horn, rotatable
• Active x-over frequency: 1.6 kHz FIR X-over with 72 dB/oct.
• Maximum input level: 20 dBu

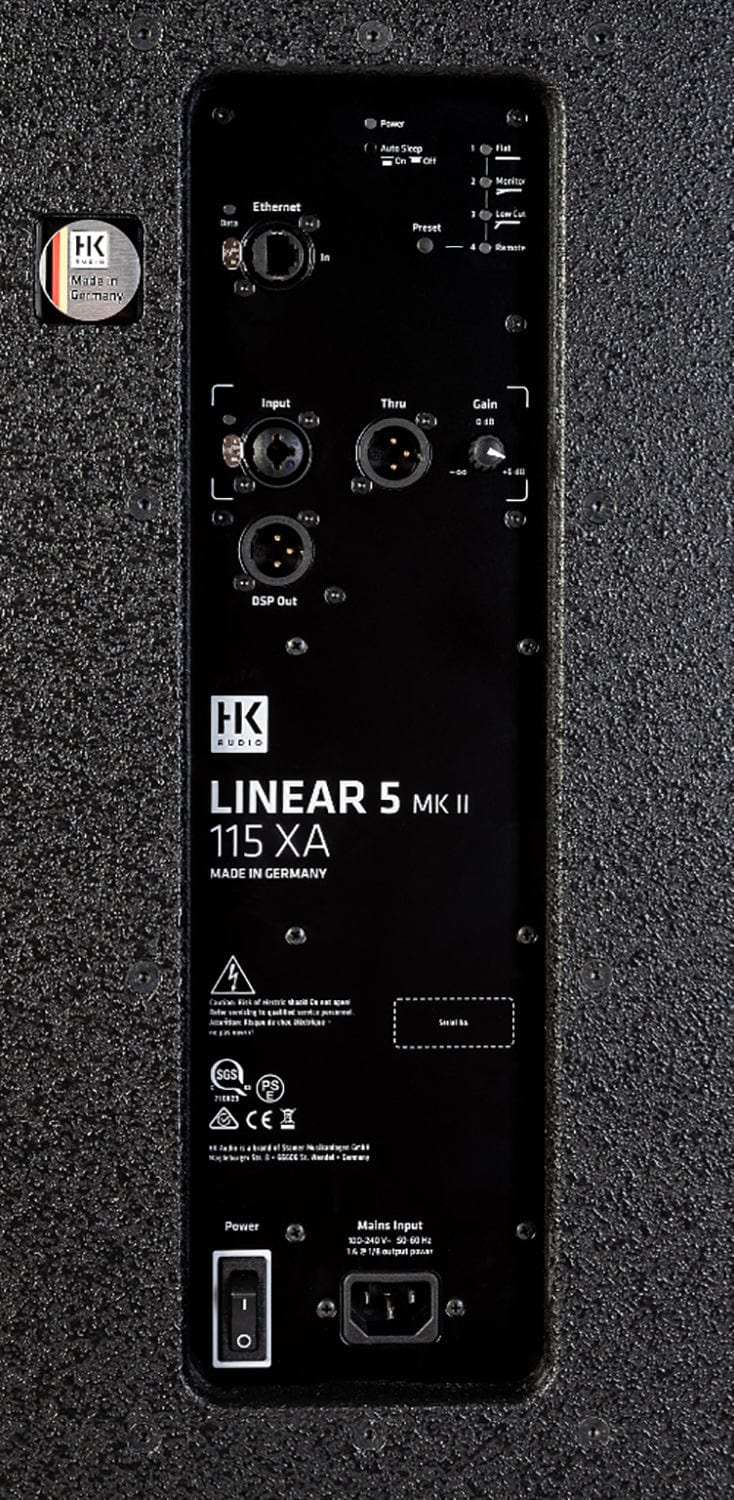

• Analogue inputs: 1 x XLR combo balanced
• Analogue Thru: 1 x XLR balanced
• DSP Out: 1 x XLR balanced
• Network port: EtherCON RJ45, 1 x In
• Filter presets: Flat, Monitor, Low Cut, Remote
• Remote software: DSP CONTROL (Windows, Mac OS)
• DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
• Sample rate: 48 kHz
• System latency: Less than 2 ms
• Mains connection: 1x IEC connector with V-Lock securing system, 100-240 V
• Power consumption: 1 A / 100–240 V nominal according to EN 62368-1
• Setup angle: 31°
• Pole mount: DuoTilt 3°/7°
• Rigging points: 3x M8 (AP-8)
• Carrying handles: 2 x MultiGrip, 1 x SingleGrip
• Housing: Hybrid (birch multiplex/MDF)
• Surface: Black acrylic enamel
• Front grille: 2 mm metal grille backed with black acoustic foam
• Dimensions (WxHxD): 45 x 68.5 x 42 cm 17-23/32 x 26-31/32 x 16-17/32"
• Weight: 27.6 kg / 60.85 lbs
