GLP X5 IP Bar Tourpack 3 with Stackable Case

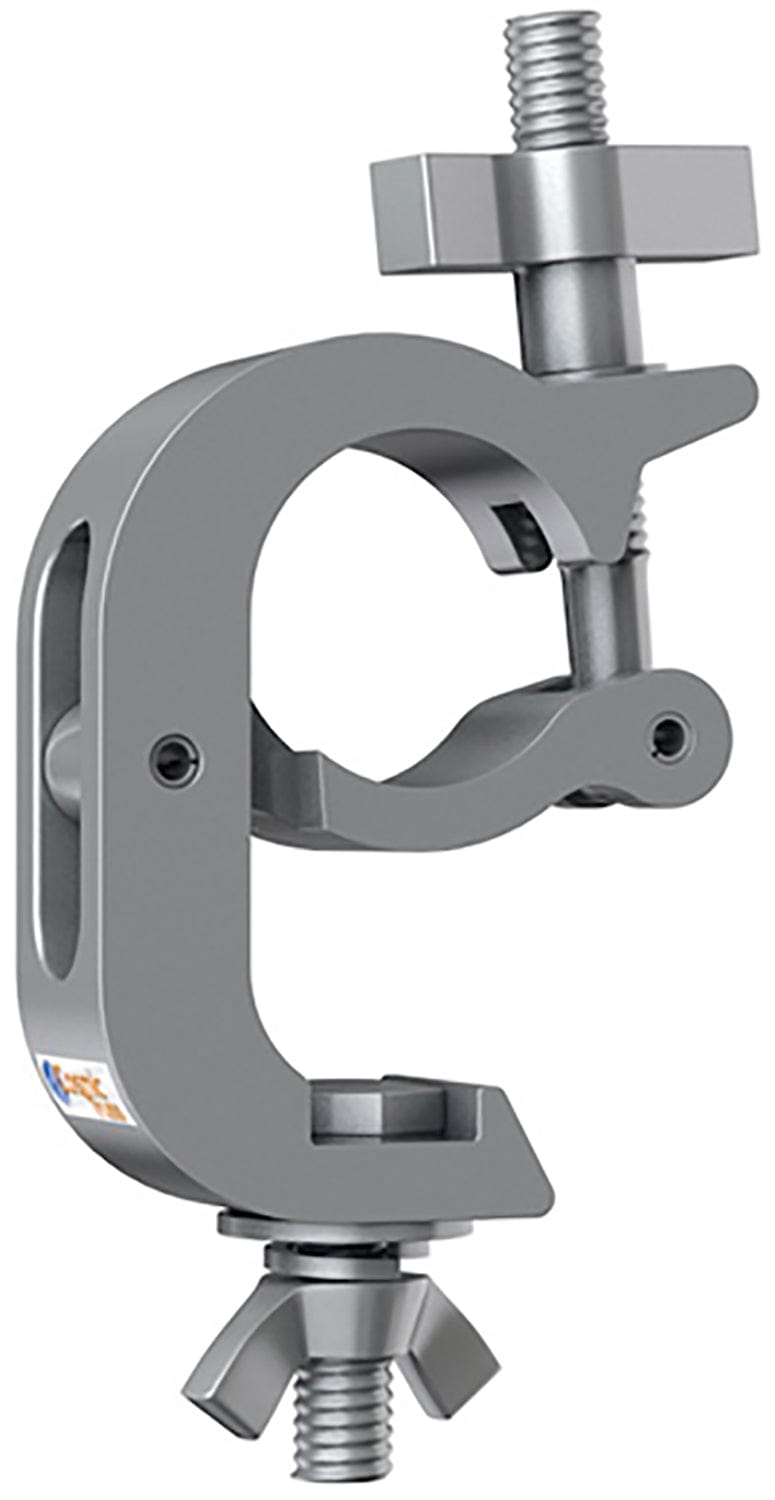

The X5 IP Bar Tourpack 3 is a professional lighting package that includes three X5 IP Bar fixtures, six Omega brackets, and six 5070-B clamps, all housed in a durable stacking case. This setup is designed for outdoor and indoor use, offering reliable IP-rated performance for a variety of lighting applications. The Omega brackets and 5070-B clamps ensure secure and flexible mounting options, while the stacking case provides safe transportation and easy storage. Ideal for touring and event production, this tour pack delivers high-performance lighting with convenience and protection.
GLP X5 IP Bar
The GLP impression X5 IP Bar is an IP65-rated, linear LED batten featuring 18 powerful 40W RGBL LEDs, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm for perfect white spectrums with excellent color rendering.
Its squared lens design ensures maximum lumen efficiency, producing an unprecedented curtain of light at its narrowest angle of just 4.5°, while delivering smooth and homogenous washes out to its widest 60° wash.
Part of the new GLP X5 family, the X5 IP Bar includes a comprehensive feature package: selectable calibrated white points, tungsten simulation channel, magenta/green correction, virtual color wheel, and variable CTC, along with twin-layer effects and dynamic pattern macros.
Featuring GLP's patented fast tilt movement and seamless pixel pitch across fixtures, the X5 IP Bar offers both wired and wireless control as standard. Its rugged enclosure is ideal for both indoor and outdoor use, protecting against confetti, fog, pyro, and dust.
Features:
- Fully weatherproof IP 65 housing with same pixel pitch between multiple fixtures
- Super fast zoom for punchy 4.5° narrow curtain to 60° homogen wide wash
- Up to 7,500 lm Output and high Color Rendering with CRI 90
- Innovative GLP iQ.Mesh and iQ.Gamut technology
Specifications:
- Light Source:
- Type: RGBL LED
- Light Source Count: 18
- Light Source Power: 18x 40 W
- Light Source Lifetime: 50,000 hours
- LED Refresh Rate: Low, Optimal (Default), High 1, High 2, Max
- CCT: 6,500 K
- Duv: Perfect white point matches with low Duv values
- CRI (Ra): 6,500 K: 90 | 3,200 K: 85
- TLCI: 6,500 K: 90 | 3,200 K: 75
- TM-30-15: 6,500 K: Rf/Rg: 87/105 | 3,200 K: Rf/Rg: 85/110
- Optical System:
- Output: Up to 7,500 lm
- Min. Zoom: 4.5°
- Max. Zoom: 60°
- Zoom Ratio: 1:13
- Output Lens: 18x 48x48mm (square)
- Effects:
- Dimmer: 0 – 100%, 16-bit
- Shutter: Strobe, Pulse, Sparkle, etc.
- Color Mixing: RGB, RGBL, x;y
- Color Mix Priority: Different Layer Priority settings
- CTC (Color Temperature Control): 2,500 – 10,000 K
- CQC (Color Quality Control): High Output (HO), High Quality (HQ)
- Desaturation: Magenta/Green-Shift
- Tungsten Simulation: 8x linked to fix CCT, 8x relative to Colormix
- Color Wheel: Virtual Color Wheel, 64 LEE-referenced colors
- Pattern Effects: 50 dynamic pattern macros with special effects
- Tilt Movement Angle: 195°, 16-bit
- Zoom Speed: Super-fast zoom mechanics
- Control:
- DMX Channels: M1: 20, M2: 33, M3: 48, M4: 84, M5: 63, M6: 81
- Control Modes: 6
- Protocol: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, iQ.Mesh, LumenRadio CRMX @ FPO
- Setting and Addressing: Control panel with backlit graphic display, 4 Button Menu Navigation
- DMX, RDM, iQ.Mesh, NFC via iQ.Service App
- Software Update: DMX link, via DProg, internal Web interface, iQ.Mesh, Fixture2Fixture Push
- High-Res Channels: Intensity Global, Tilt, Colormix
- Performance Modes: Fast, Normal (balanced), Smooth
- Dimming Curves: Linear, Soft, S-Curve
- Fan Modes: Regulated, High, Medium, Low, Minimum
- Subfixture Mode: Normal, Independent
- White Points: Optional: 8,000 K, 5,600 K, 4,200 K, 3,200 K
- Others: Stand Alone 1 captured scene, Art-Net/sACN Node, Data Conversion, iQ.Mesh, SW Fixture2Fixture Push, iQ.Gamut: Rec.709, Rec.2020, DCI P3.65
- Connectors:
- Signal Connection: XLR 5-Pin (In/Out), Neutrik etherCON port A & B (failsafe)
- Power Input: Neutrik powerCON TRUE1 (In/Out)
- Electrical Specifications:
- Power Input: 100 – 240 VAC / 50 – 60Hz
- Power Supply: Auto-ranging electronic switch-mode
- Power Supply Cable: US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft / EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
- Max. Power (@230V): 750 W
- Thermal Specifications:
- Cooling: Combined convection and forced air
- Max. Ambient Temperature: 45°C / 113°F
- Min. Ambient Temperature: 5°C / 40°F
- Total Heat Dissipation (calculated, +/-10%): 2,600 BTU/h
- Mounting Options:
- Mounting: 2 eyelets for safety cable, 4 pairs of 1/4-turn locks for two rigging/installation brackets
- Orientation: Any
- Location: Indoor permanent, Outdoor temporary
- Construction:
- Housing Color: Black
- Housing Material: High-impact flame-retardant thermoplastic, Aluminum, Steel metal plates
- Protection Rating: IP 65
- Construction Features: Handgrips for carrying, Tilt-Lock System, Alignment System, Threads for external accessory, Smart Slide-In Filter System
- Dimensions & Weight:
- Height: 316 mm / 12.44 in
- Height (Head Straight Down): 268.5 mm / 10.57 in
- Width (Across Yoke): 1,000 mm / 39.4 in
- Length: 143.5 mm / 5.65 in
- Weight: 27 kg / 59.52 lbs
- Light Source:
- Type: RGBL LED
- Light Source Count: 18
- Light Source Power: 18x 40 W
- Light Source Lifetime: 50,000 hours
- LED Refresh Rate: Low, Optimal (Default), High 1, High 2, Max
- CCT: 6,500 K
- Duv: Perfect white point matches with low Duv values
- CRI (Ra): 6,500 K: 90 | 3,200 K: 85
- TLCI: 6,500 K: 90 | 3,200 K: 75
- TM-30-15: 6,500 K: Rf/Rg: 87/105 | 3,200 K: Rf/Rg: 85/110
- Optical System:
- Output: Up to 7,500 lm
- Min. Zoom: 4.5°
- Max. Zoom: 60°
- Zoom Ratio: 1:13
- Output Lens: 18x 48x48mm (square)
- Effects:
- Dimmer: 0 – 100%, 16-bit
- Shutter: Strobe, Pulse, Sparkle, etc.
- Color Mixing: RGB, RGBL, x;y
- Color Mix Priority: Different Layer Priority settings
- CTC (Color Temperature Control): 2,500 – 10,000 K
- CQC (Color Quality Control): High Output (HO), High Quality (HQ)
- Desaturation: Magenta/Green-Shift
- Tungsten Simulation: 8x linked to fix CCT, 8x relative to Colormix
- Color Wheel: Virtual Color Wheel, 64 LEE-referenced colors
- Pattern Effects: 50 dynamic pattern macros with special effects
- Tilt Movement Angle: 195°, 16-bit
- Zoom Speed: Super-fast zoom mechanics
- Control:
- DMX Channels: M1: 20, M2: 33, M3: 48, M4: 84, M5: 63, M6: 81
- Control Modes: 6
- Protocol: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, iQ.Mesh, LumenRadio CRMX @ FPO
- Setting and Addressing: Control panel with backlit graphic display, 4 Button Menu Navigation
- DMX, RDM, iQ.Mesh, NFC via iQ.Service App
- Software Update: DMX link, via DProg, internal Web interface, iQ.Mesh, Fixture2Fixture Push
- High-Res Channels: Intensity Global, Tilt, Colormix
- Performance Modes: Fast, Normal (balanced), Smooth
- Dimming Curves: Linear, Soft, S-Curve
- Fan Modes: Regulated, High, Medium, Low, Minimum
- Subfixture Mode: Normal, Independent
- White Points: Optional: 8,000 K, 5,600 K, 4,200 K, 3,200 K
- Others: Stand Alone 1 captured scene, Art-Net/sACN Node, Data Conversion, iQ.Mesh, SW Fixture2Fixture Push, iQ.Gamut: Rec.709, Rec.2020, DCI P3.65
- Connectors:
- Signal Connection: XLR 5-Pin (In/Out), Neutrik etherCON port A & B (failsafe)
- Power Input: Neutrik powerCON TRUE1 (In/Out)
- Electrical Specifications:
- Power Input: 100 – 240 VAC / 50 – 60Hz
- Power Supply: Auto-ranging electronic switch-mode
- Power Supply Cable: US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft / EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
- Max. Power (@230V): 750 W
- Thermal Specifications:
- Cooling: Combined convection and forced air
- Max. Ambient Temperature: 45°C / 113°F
- Min. Ambient Temperature: 5°C / 40°F
- Total Heat Dissipation (calculated, +/-10%): 2,600 BTU/h
- Mounting Options:
- Mounting: 2 eyelets for safety cable, 4 pairs of 1/4-turn locks for two rigging/installation brackets
- Orientation: Any
- Location: Indoor permanent, Outdoor temporary
- Construction:
- Housing Color: Black
- Housing Material: High-impact flame-retardant thermoplastic, Aluminum, Steel metal plates
- Protection Rating: IP 65
- Construction Features: Handgrips for carrying, Tilt-Lock System, Alignment System, Threads for external accessory, Smart Slide-In Filter System
- Dimensions & Weight:
- Height: 316 mm / 12.44 in
- Height (Head Straight Down): 268.5 mm / 10.57 in
- Width (Across Yoke): 1,000 mm / 39.4 in
- Length: 143.5 mm / 5.65 in
- Weight: 27 kg / 59.52 lbs
