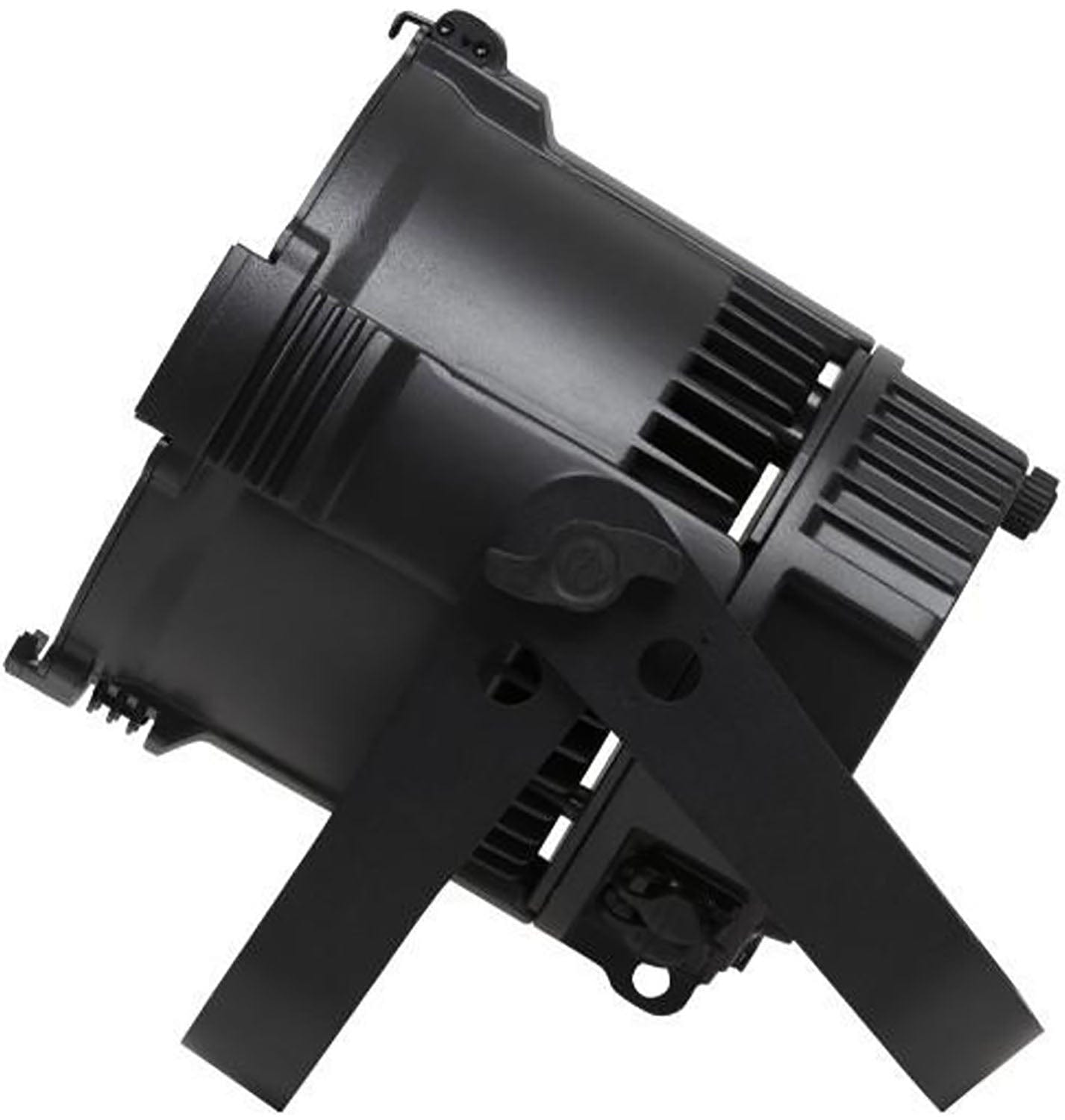

GLP Fusion X-Par 12Z OOM-PAR 120 Watt RGBL IP65 8 - 52 Degree Fixture with Motorized Zoom
Introducing the FUSION X-PAR 12 Z, a LED Par revolutionizing versatility with its 190 mm Fresnel Zoom Lens and single-source 120 W RGBL LED, seamlessly adapting to diverse applications. Its zoom capabilities, ranging from 8.5° to 55°, ensure precise beam control. Designed for freestanding use, its robust housing eliminates the need for a bracket, enabling both narrow beam uplighting and wide-angle illumination. The M12 Thread on the rear allows for vertical hanging and other mounting options. With a fanless IP65-rated design, it's suitable for indoor and outdoor use. Part of the GLP fixture series with GLP iQ.Gamut Technology, it offers exceptional color algorithms and calibration, coupled with RGBL LED, providing flexibility between Color Quality and Output for any application.
Features:
- 120 W RGBL LED
- Motorized Zoom: 8.5° – 55°
- High Color Rendering: CRI 85+ / TLCI 80+
- Versatile Mounting Options
- IP65 Rating
Specifications:
- Light Source:
- Type: RGBL LED
- Light Source Count: 1
- Light Source Power: 120 W
- CRI (Ra): 85+
- TLCI: 80+
- Optical System:
- Output: bis zu 2,520 lm
- Min. Zoom: 8.5°
- Max. Zoom: 55°
- Output Lens Diameter: 190 mm / 7.48 in
- Effects:
- Dimmer / Shutter: 0 – 100% electronic
- Color Wheel: virtual, 64 Lee Filter + 4 White Presets
- Zoom: motorized
- Control:
- Control Modes: 6
- Protocol:
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- Setting and addressing:
- OLED Display
- 4 Button Menu Navigation
- Others:
- Stand Alone 1 captured Scene
- 3 Layer Pattern-FX-Engine
- Electrical Specifications:
- Power input: 100 – 240 VAC / 50 – 60Hz
- Power supply: auto-ranging electronic switch-mode
- Power supply cable:
- US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft
- EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
- max. power (@230V): 135 W
- Thermal Specifications:
- Cooling: Convection cooling
- max. surface temperature (Ta = 40°C): 90 °C / 194 °F
- Total heat dissipation (calculated, +/-10%): 460 BTU/hr
- Temperature range, operating: -10 °C / 14 °F to 40 °C / 104 °F
- Mounting Options:
- Mounting:
- 1 Double Bracket with three mounting holes
- M10 thread, centred
- 1 Safety Cable attachment point
- Location: Outdoor temporary
- min. distance to combustible materials: 0.2 m / 8 in
- min. distance to illuminated surfaces: 0.5 m / 18.7 in
- Construction:
- Housing Color: Black
- Housing Material: Aluminum
- Protection Rating: IP 65
- Construction Features:
- floor standing with adjustable foot
- Direct M10 Thread for Drop Mounting
- low-ceiling mounting with bracket
- Holder for optional accessories (filter frame, barndoor)
- Dimensions & Weight:
- Height: 245 mm / 9.65 in
- Width: 245 mm / 9.65 in
- Length: 245 mm / 9.65 in
- Weight: 6.9 kg / 15.2 lbs
- Light Source:
- Type: RGBL LED
- Light Source Count: 1
- Light Source Power: 120 W
- CRI (Ra): 85+
- TLCI: 80+
- Optical System:
- Output: bis zu 2,520 lm
- Min. Zoom: 8.5°
- Max. Zoom: 55°
- Output Lens Diameter: 190 mm / 7.48 in
- Effects:
- Dimmer / Shutter: 0 – 100% electronic
- Color Wheel: virtual, 64 Lee Filter + 4 White Presets
- Zoom: motorized
- Control:
- Control Modes: 6
- Protocol:
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- Setting and addressing:
- OLED Display
- 4 Button Menu Navigation
- Others:
- Stand Alone 1 captured Scene
- 3 Layer Pattern-FX-Engine
- Electrical Specifications:
- Power input: 100 – 240 VAC / 50 – 60Hz
- Power supply: auto-ranging electronic switch-mode
- Power supply cable:
- US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft
- EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
- max. power (@230V): 135 W
- Thermal Specifications:
- Cooling: Convection cooling
- max. surface temperature (Ta = 40°C): 90 °C / 194 °F
- Total heat dissipation (calculated, +/-10%): 460 BTU/hr
- Temperature range, operating: -10 °C / 14 °F to 40 °C / 104 °F
- Mounting Options:
- Mounting:
- 1 Double Bracket with three mounting holes
- M10 thread, centred
- 1 Safety Cable attachment point
- Location: Outdoor temporary
- min. distance to combustible materials: 0.2 m / 8 in
- min. distance to illuminated surfaces: 0.5 m / 18.7 in
- Mounting:
- Construction:
- Housing Color: Black
- Housing Material: Aluminum
- Protection Rating: IP 65
- Construction Features:
- floor standing with adjustable foot
- Direct M10 Thread for Drop Mounting
- low-ceiling mounting with bracket
- Holder for optional accessories (filter frame, barndoor)
- Dimensions & Weight:
- Height: 245 mm / 9.65 in
- Width: 245 mm / 9.65 in
- Length: 245 mm / 9.65 in
- Weight: 6.9 kg / 15.2 lbs
