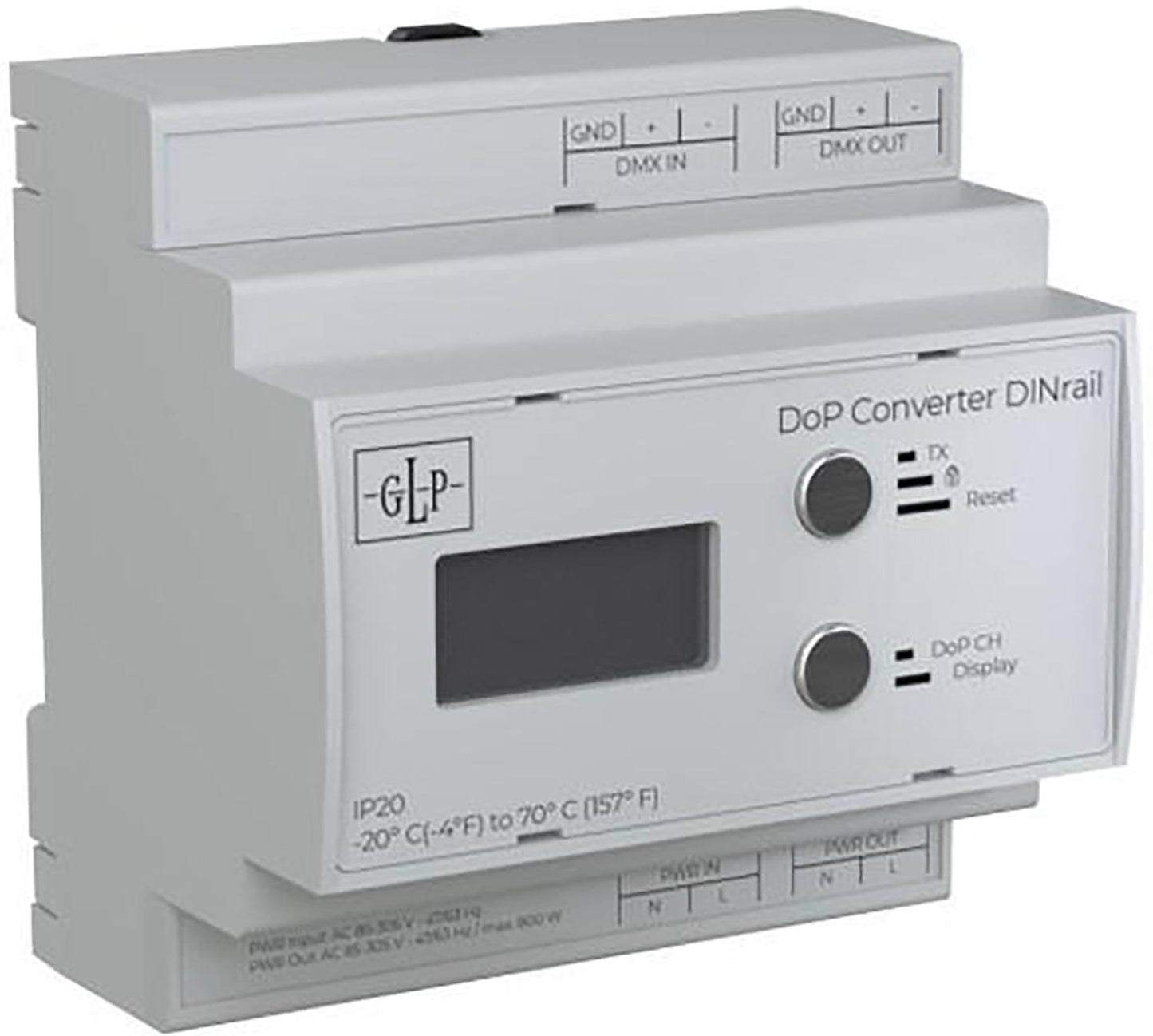

GLP 78171 DoP Converter TX 512 Channel / RX 128 Channel DIN Rail
With the new DoP Converter (DMX over Powerline), GLP is offering a unique system that can transmit up to 10 DMX universes via a single power cable. DoP can be used wherever DMX data is to be transmitted, but laying separate DMX lines is either not possible or not economical. GLP is thus providing a sensible alternative to standard wireless connections (WDMX, CRMX, etc.) that are sometimes susceptible to interference when each requires transmitter and receiver, and can be subject to severe limitations of the locally-available radio network. GLP’s DoP is therefore particularly suitable for integration into existing infrastructure within the entire architectural lighting sector, especially in historic buildings, with existing power rail systems (e.g. museums, galleries, hotels, restaurants and retail) as well as in the lighting of public spaces.
Specifications:
- Control:
- Protocol:
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- GLP DoP Protocol
- Function Modes:
- TX (Transmitter / DMX to DoP Conversion)
- RX (Receiver / DoP to DMX Conversion)
- Setting and addressing:
- control panel with backlit graphic display
- 2 Button Control
- Connectors:
- Signal connection: Metz-Connect PR043xxHBBN 3-pole
- Power input: Metz-Connect PT116xxHBBN 2-pole
- Electrical Specifications:
- Power input/output: 85 – 305 V AC nominal, 47/63 Hz
- Power supply: auto-ranging electronic switch-mode
- Fuse: T250 350 V SMD, not changeable
- DoP Signal Frequency Range: 4 – 28 MHz
- typ. Power (@ 230V): 2 W
- Electrical Protection: Overload protection
- Thermal Specifications:
- Cooling: Convection cooling
- max. ambient temperature (Ta max.): 70 °C / 158 °F
- min. ambient temperature (Ta min.): -20 °C / -4 °F
- Total heat dissipation (calculated, +/-10%): 23.9 BTU/h
- Mounting Options:
- Mounting: DIN EN 50222 rail mounting, 35 mm
- Orientation: any
- Location: dry
- Dimensions & Weight:
- Height: 111 mm / 4.37 in
- Width: 26 mm / 1.023 in
- Length: 75 mm / 2.95 in
