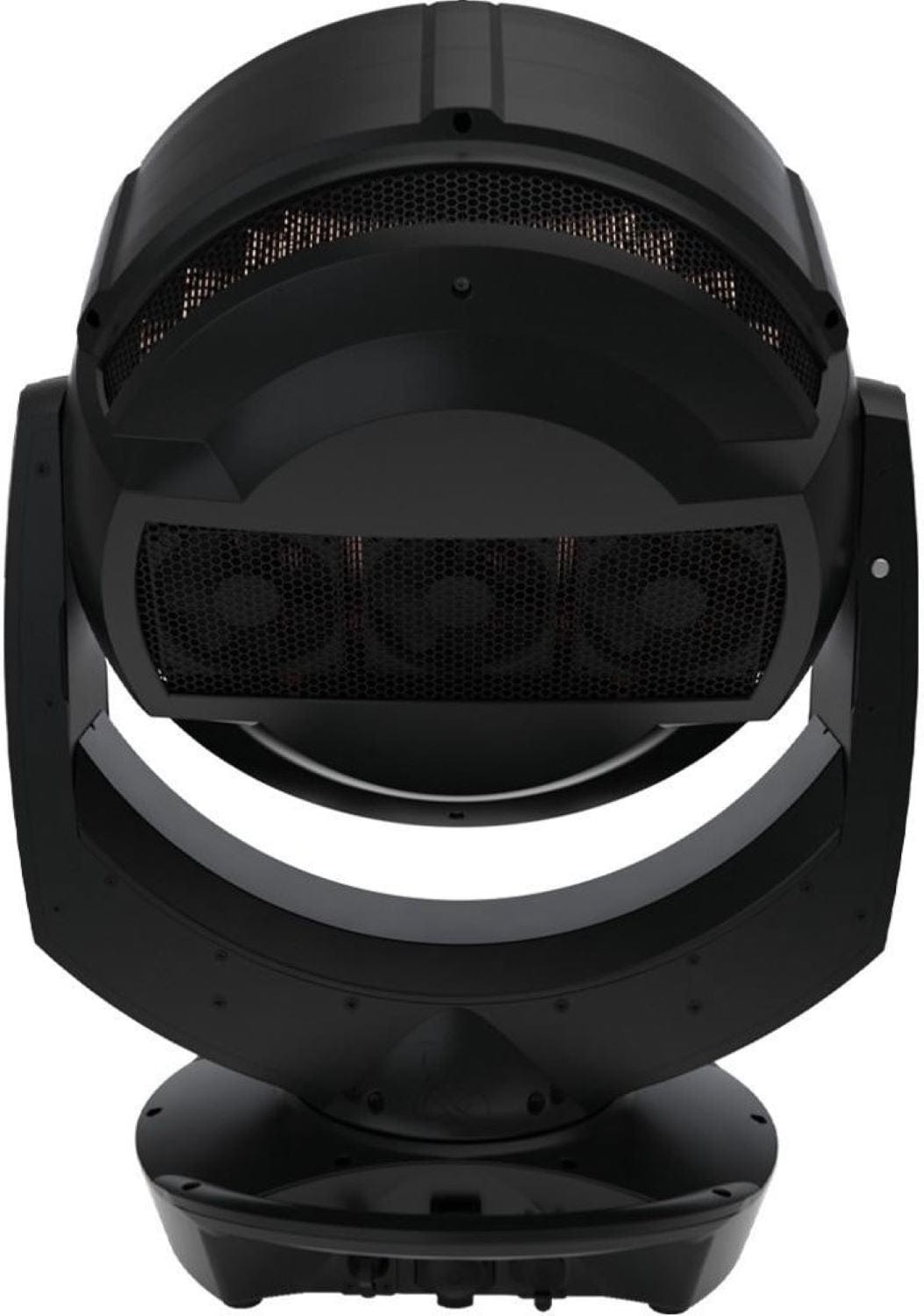

GLP 7796 Impression X5 Maxx Moving Head Light
The GLP impression X5 is the next generation of high performance, professional LED washlights. Building on the legacy of its highly renowned predecessors, it incorporates cutting edge technology with extensive user input. The 19 powerful and exclusive 40 Watt LEDs provide enormous power and allow the fixture to penetrate through even the most difficult lighting environments.
Features:
- LED Light Source - 19x 40 W RGBL with individual pixel control circular ring and line arrangement
- Super fast Movement - 540°/650° Pan, 230° Tilt 16 bit with automatic position correction
- Zoom - punchy 3.5° narrow beam 60° homogen wide wash
- Innovative Features and Technologies - iQ.Gamut color algorithm, Tungsten Simulation, Magenta/Green-Shift NFC via iQ.Service App, Subfixture Mode
Specifications:
- Light Source:
- Type: RGBL LED
- Light Source Count: 19
- Light Source Power: 40 W
- Light Source Lifetime: 50,000 h
- LED Refresh Rate: Low, Optimal (Default), High 1, High 2, Max
- CCT: Default white point: 6,500 K; optional: 8,000 K; 5,600 K; 4,200 K; 3,200 K
- Duv: perfect white point matches with low Duv values
- CRI (Ra): 6,500 K: 90 | 3,200 K: 85
- TLCI: 6,500 K: 90 | 3,200 K: 75
- Optical System:
- Output: up to 12,500 lm
- Peak Luminous Intensity: 2 Mcd
- Min. Zoom: 3.5°
- Max. Zoom: 60°
- Zoom Ratio
- 1:16
- Output Lens Diameter
- 260 mm
- Effects:
- Dimmer: 0 – 100%; 16 bit
- Shutter: Strobe, Pulse, Sparkel, etc.
- Color mixing:
- RGB
- RGBL
- x;y
- CTC (Color Temperature Control): 2,500 – 10,000 K
- CQC (Color Quality Control):
- High Output (HO)
- High Quality (HQ)
- Desaturation
- Magenta/Green-Shift: yes
- Tungsten Simulation: 8 selectable curves
- Color Wheel: virtual Color wheel, 64 LEE referenced colors
- Pattern Effects: 50 dynamic pattern macros with special effects
- Pan Movement Angle: 540° normal (650° extended), 16 Bit Resolution
- Tilt Movement Angle: 240°, 16 Bit Resolution
- Pan/Tilt Movement Speed: super fast
- Control:
- DMX channels: M1: CH24 / M2: CH35 / M3: CH41 / M4: CH89 / M5: CH70 / M6: CH89
- Control Modes: 6
- Protocol:
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- Art-Net
- sACN
- iQ.Mesh
- optional: Lumenradio CRMX @ FPO
- Setting and addressing:
- control panel with backlit graphic display
- 4 Button Menu Navigation
- DMX
- RDM
- NFC via iQ.Service App
- Software Update:
- DMX link
- via DProg
- iQ.Mesh
- Fixture2Fixture Push
- High-Res Channels:
- Intensity
- Pan
- Tilt
- Colormix
- Performance Modes:
- fast
- normal (balanced)
- smooth
- Dimming Curves:
- linear
- soft
- S-Curve
- Fan Modes:
- regulated
- high
- medium
- low
- off
- Subfixture Mode:
- Normal
- independent
- White points: Default white point: 6,500 K; optional: 8,000 K; 5,600 K; 4,200 K; 3,200 K
- Others:
- Stand Alone 1 captured Scene
- Art-Net/sACN Node
- Data Conversion
- iQ.Mesh
- FPO (Flexible Protocol Option)
- SW Fixture2Fixture Push
- iQ.Gamut:
- Rec.709
- Rec.2020
- DCI P3.65
- Connectors:
- Signal connection:
- XLR 5-Pin
- In/Out
- Neutrik etherCON port A & B (failsafe)
- GLP FX.Port
- Power input:
- Neutrik powerCON TRUE1
- In/Out
- Electrical Specifications:
- Power input: 100 – 240 VAC / 50 – 60Hz
- Power supply: auto-ranging electronic switch-mode
- Power supply cable:
- US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft
- EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
- max. power (@230V): 710 W
- Thermal Specifications:
- Cooling: combined convection and forced air
- max. surface temperature (Ta = 40°C): 45 °C / 115 °F
- min. ambient temperature (Ta min.): 5 °C / 40 °F
- Total heat dissipation (calculated, +/-10%): 2,500 BTU/h
- Mounting Options:
- Mounting:
- 1 pair of 1/4-turn locks
- 2 eyelets for safety cable
- M10 Screw Thread(s)
- Orientation: any
- Location: Indoor permanent
- Construction:
- Housing Color: Black
- Housing Material:
- high-impact flame-retardant thermoplastic
- Aluminum
- steel metal plates
- Protection Rating: IP 20
- Construction Features:
- baseless design
- prepared for external accessories (Egg Crate; Tubus, etc)
- Dimensions & Weight:
- Height: 402 mm / 15.83 in
- Width (across yoke): 415 mm / 16.4 in
- Length: 290 mm / 11.4 in
- Weight: 13.3 kg / 29.3 lbs
- Light Source:
- Type: RGBL LED
- Light Source Count: 19
- Light Source Power: 40 W
- Light Source Lifetime: 50,000 h
- LED Refresh Rate: Low, Optimal (Default), High 1, High 2, Max
- CCT: Default white point: 6,500 K; optional: 8,000 K; 5,600 K; 4,200 K; 3,200 K
- Duv: perfect white point matches with low Duv values
- CRI (Ra): 6,500 K: 90 | 3,200 K: 85
- TLCI: 6,500 K: 90 | 3,200 K: 75
- Optical System:
- Output: up to 12,500 lm
- Peak Luminous Intensity: 2 Mcd
- Min. Zoom: 3.5°
- Max. Zoom: 60°
- Zoom Ratio
- 1:16
- Output Lens Diameter
- 260 mm
- Effects:
- Dimmer: 0 – 100%; 16 bit
- Shutter: Strobe, Pulse, Sparkel, etc.
- Color mixing:
- RGB
- RGBL
- x;y
- CTC (Color Temperature Control): 2,500 – 10,000 K
- CQC (Color Quality Control):
- High Output (HO)
- High Quality (HQ)
- Desaturation
- Magenta/Green-Shift: yes
- Tungsten Simulation: 8 selectable curves
- Color Wheel: virtual Color wheel, 64 LEE referenced colors
- Pattern Effects: 50 dynamic pattern macros with special effects
- Pan Movement Angle: 540° normal (650° extended), 16 Bit Resolution
- Tilt Movement Angle: 240°, 16 Bit Resolution
- Pan/Tilt Movement Speed: super fast
- Control:
- DMX channels: M1: CH24 / M2: CH35 / M3: CH41 / M4: CH89 / M5: CH70 / M6: CH89
- Control Modes: 6
- Protocol:
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- Art-Net
- sACN
- iQ.Mesh
- optional: Lumenradio CRMX @ FPO
- Setting and addressing:
- control panel with backlit graphic display
- 4 Button Menu Navigation
- DMX
- RDM
- NFC via iQ.Service App
- Software Update:
- DMX link
- via DProg
- iQ.Mesh
- Fixture2Fixture Push
- High-Res Channels:
- Intensity
- Pan
- Tilt
- Colormix
- Performance Modes:
- fast
- normal (balanced)
- smooth
- Dimming Curves:
- linear
- soft
- S-Curve
- Fan Modes:
- regulated
- high
- medium
- low
- off
- Subfixture Mode:
- Normal
- independent
- White points: Default white point: 6,500 K; optional: 8,000 K; 5,600 K; 4,200 K; 3,200 K
- Others:
- Stand Alone 1 captured Scene
- Art-Net/sACN Node
- Data Conversion
- iQ.Mesh
- FPO (Flexible Protocol Option)
- SW Fixture2Fixture Push
- iQ.Gamut:
- Rec.709
- Rec.2020
- DCI P3.65
- Connectors:
- Signal connection:
- XLR 5-Pin
- In/Out
- Neutrik etherCON port A & B (failsafe)
- GLP FX.Port
- Power input:
- Neutrik powerCON TRUE1
- In/Out
- Electrical Specifications:
- Power input: 100 – 240 VAC / 50 – 60Hz
- Power supply: auto-ranging electronic switch-mode
- Power supply cable:
- US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft
- EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
- max. power (@230V): 710 W
- Thermal Specifications:
- Cooling: combined convection and forced air
- max. surface temperature (Ta = 40°C): 45 °C / 115 °F
- min. ambient temperature (Ta min.): 5 °C / 40 °F
- Total heat dissipation (calculated, +/-10%): 2,500 BTU/h
- Mounting Options:
- Mounting:
- 1 pair of 1/4-turn locks
- 2 eyelets for safety cable
- M10 Screw Thread(s)
- Orientation: any
- Location: Indoor permanent
- Mounting:
- Construction:
- Housing Color: Black
- Housing Material:
- high-impact flame-retardant thermoplastic
- Aluminum
- steel metal plates
- Protection Rating: IP 20
- Construction Features:
- baseless design
- prepared for external accessories (Egg Crate; Tubus, etc)
- Dimensions & Weight:
- Height: 402 mm / 15.83 in
- Width (across yoke): 415 mm / 16.4 in
- Length: 290 mm / 11.4 in
- Weight: 13.3 kg / 29.3 lbs
