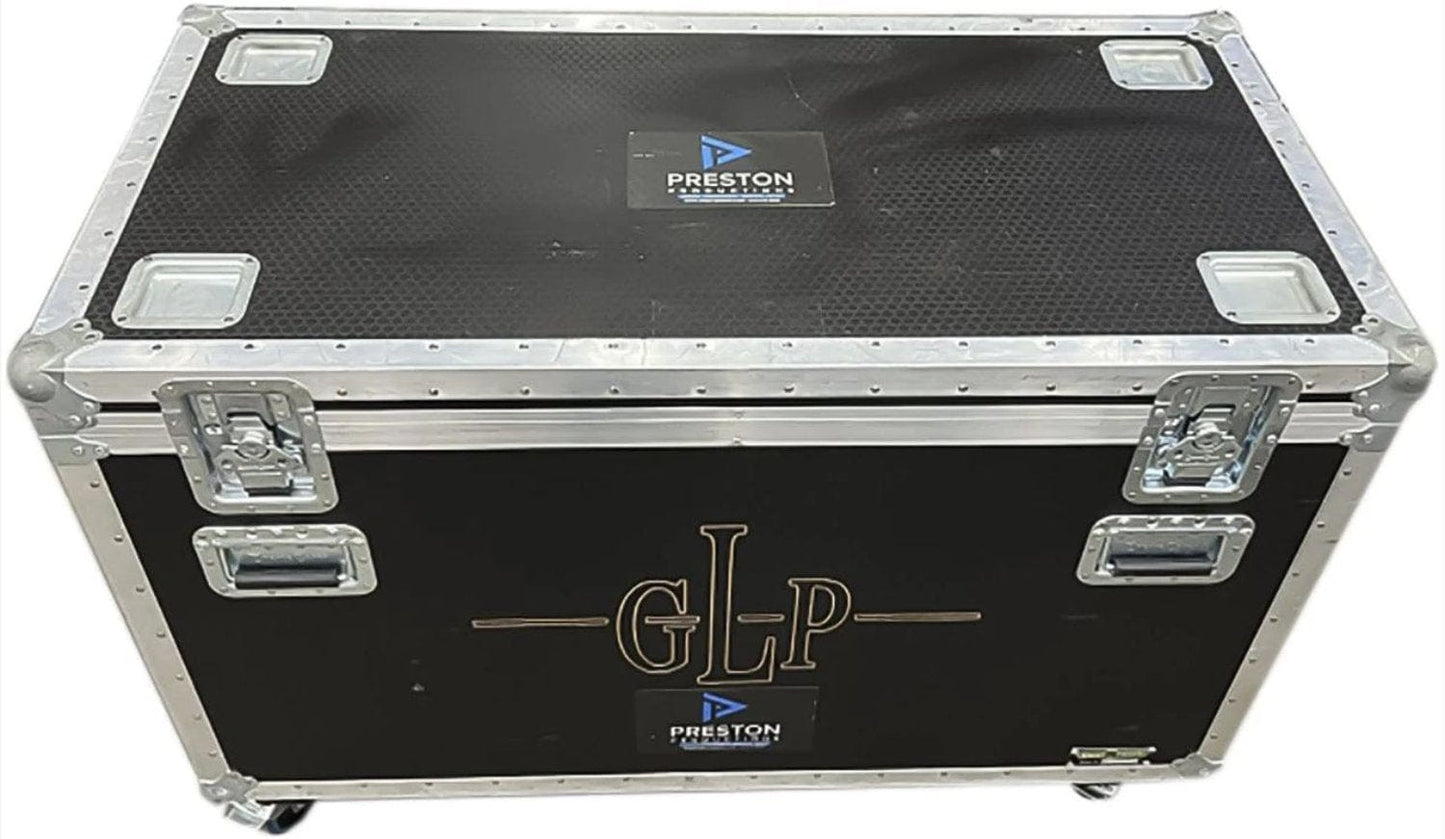

GLP 4x Fusion FS20 Set with 8x 4930009 Omega Bracket/8x 5035-B Half Coupler/Stacking Case
4x German Light Products Fusion FS20 Batten
The FUSION Stick has the ability to easily add various beam angle filters, including asymmetrical options, producing a perfectly homogeneous light output. The FUSION Stick features 20°, 40°, 60° and 60°x 10° diffuser plates which can be fixed to the front of the fixture. With these diffuser plates attached, the Stick outputs enough power to produce light beams that cut through modern stage designs.
As with all FUSION by GLP fixtures, the FUSION Stick fixtures feature an IP rating of 65, allowing for full outdoor use regardless of poor weather conditions. To that end, the Stick features a fanless design, which not only ensures an IP65 rating, but also enables silent operation for sound sensitive environments such as theatre or television.
The Stick fixtures feature FUSION’s SteadyColor™ technology which allows color mixing through the RGBW LED’s to remain exact through all dimming levels removing the possibility of color shifts and the need for single color correction.
Additionally, the Stick fixtures feature the uniquely designed ConsistentColor™ optic which creates the perfect balance of output and homogeneity, producing high quality light output without coronas or color shifts.
No matter what the application, the FUSION Stick is the right choice.
8x Fusion 4930009 Omega Bracket
The German Light Products Fusion 4930009 Omega Bracket is a durable and reliable mounting accessory for the FS10 or FS20 fixtures. It offers secure and flexible positioning, ensuring optimal stability during use. Designed for quick installation, the bracket enhances the versatility of your lighting setup in various environments.
8x 5035-B Half Coupler
The 5035-B half coupler is the standard for heavy duty clamps, featuring a wide width the clamp offers a high load rating of 1100 lbs. / 500kg and fits all standard bars with a 2 inch (48-51mm) diameter. The 5035 comes complete with an M10 bolt set.
Features:
- German Light Products Fusion FS20 Batten:
- 20 x 15W RGBW LEDs – Provides vibrant, high-quality color mixing.
- IP65 Rating – Weatherproof for outdoor use, suitable for all environments.
- 6° Beam Angle – Creates a narrow, focused light beam.
- Pixel Control – Allows individual control of each LED for dynamic and customizable effects.
- Selectable Dimming Curves – Offers flexibility for smooth and precise dimming.
- Strobe and Pulse Effects – Includes regular and random strobe, with pulse effects for creative lighting options.
- DMX Control – Compatible with DMX 512-A and optional wireless CRMX for remote control.
- Rugged Construction – Built to withstand demanding conditions, suitable for both stage and architectural lighting.
- OLED Display – Equipped with a user-friendly 4-button OLED display for easy navigation and configuration.
- Power Efficiency – Auto-ranging power supply (100-240V AC) with a max consumption of 330W at 230V.
- Fusion 4930009 Omega Bracket:
- Compatible with FS10 and FS20 – Specifically designed for secure mounting of FS10 and FS20 fixtures.
- Flexible Positioning – Allows for adjustable positioning of lights for precise alignment.
- Secure Mounting – Provides stable and reliable fixture mounting, even in demanding environments.
- Lightweight Design – Easy to transport and handle without adding unnecessary weight.
- Versatile Use – Suitable for both stage and architectural lighting setups.
- 5035-B Half Coupler:
- Heavy-Duty Construction – Made from robust materials for high load capacity.
- Quick and Secure Attachment – Easily clamps onto truss systems or pipes for reliable mounting.
- Universal Fit – Designed to fit standard 48-51mm diameter tubing, compatible with various rigging setups.
- Black Finish – Discreet, non-reflective finish ideal for stage and event environments.
- High Load Capacity – Supports substantial weight, suitable for heavy lighting or equipment.
- Compact and Lightweight – Streamlined design for ease of handling and transportation.
- Safety Certified – Meets industry safety standards for secure rigging.
- Versatile Application – Ideal for use in stage, theater, and event production setups
Specifications:
- German Light Products Fusion FS20 Batten:
- Light Source:
- 20 x 15 W RGBW LEDs
- 20,000 lifetime hours
- Control:
- 4 button OLED display
- USITT DMX 512-A
- Optional Wireless Lumen Radio CRMX DMX/RDM
- 8 control modes
- Effects:
- 0-100% electronic dimmer
- Regular and random strobe
- Pulse effects
- Selectable dimmer curves
- Connectors:
- XLR 5-pin
- Neutrik powerCON True
- Power:
- 100-240 VAC/50-60 Hz
- Auto ranging electronic switch-mode
- Max. 330 W @ 230 V
- Operating Conditions:
- Temperature overheating protection
- 113°F (45°C)
- IP65
- Mounting Options:
- 1 eyelet for safety wire attachment
- M10 screw thread
- Optical System:
- 6° beam angle
- Dimensions:
- Height including bracket: 9.09 in. / 231 mm
- Height without bracket: 7.12 in. / 181 mm
- Width: 3.54 in. / 90 mm
- Depth: 39.60 in. / 1006 mm
- Net Weight:
- Weight: 12.5 kg (27.6 lbs.)
- 5035-B Half Coupler:
- Finish: Powder coated black finish
- Load Rating: 1100 lbs/500 kg
- Diameter range: 48-51mm/2" bars
