ETC Selador Desire D40XTI Vivid LED Par with Edison Plug - White

ETC Selador Desire D40XTI Vivid LED Par - White

The Selador Desire D40XTI brings the amazing control of the seven-color x7 Color System to your permanent application. With its IP66 rating, this fixture is ready for installation inside or outside – wherever you need it. The x7 Color System produces the widest range of spectrally balanced saturated and tinted color choices available. The D40XTI offers a rugged die-cast enclosure, noiseless fan-free operation, and multiple lens options that can be changed on-site.

D40XTI Vivid: Best all-around use as a color-changing wash fixture

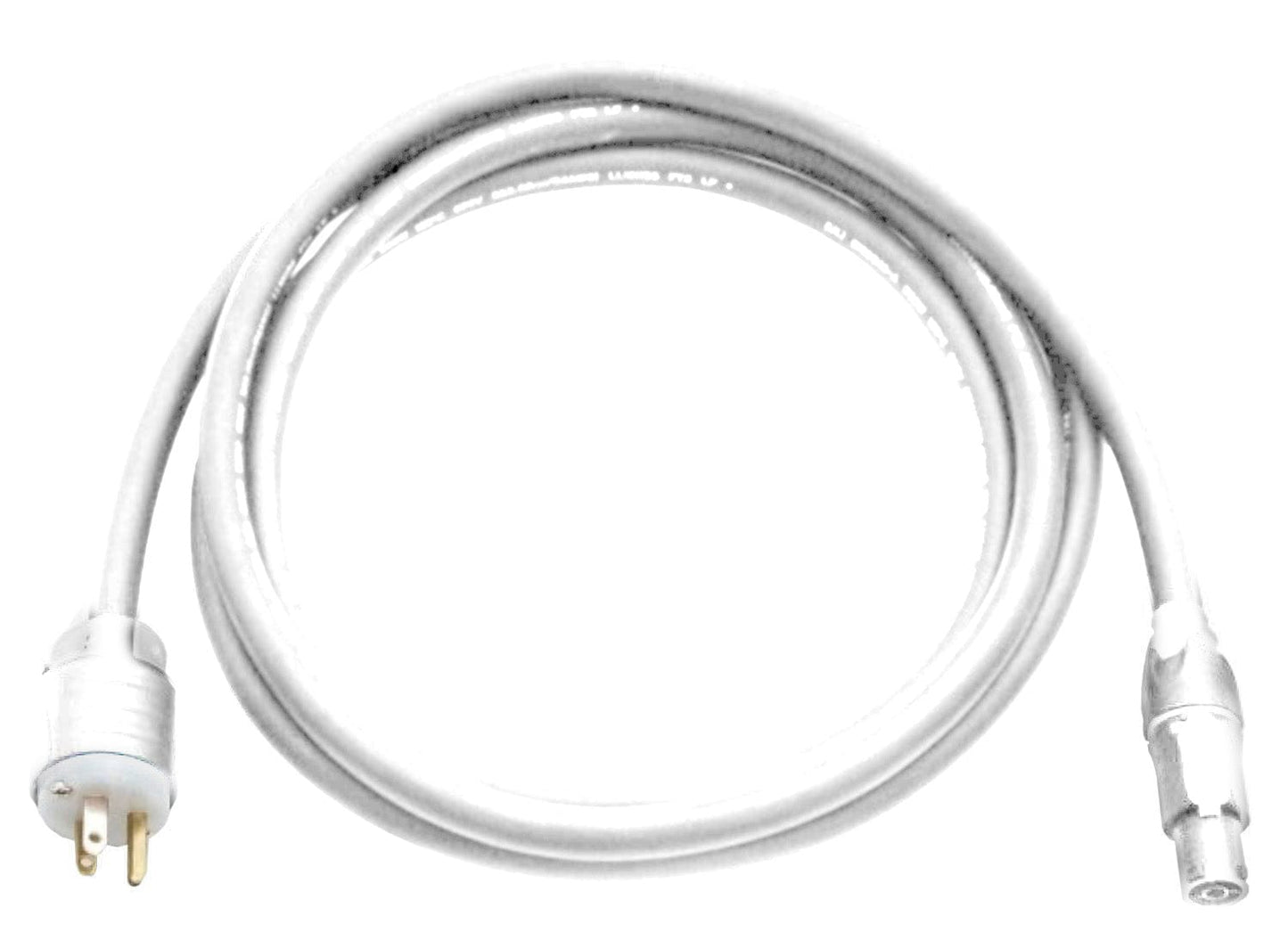

ETC T1PA-A-1 Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable - White

6 ft TRUE1 TOP to parallel blade U-ground (Edison) connector.

Specifications:

• Source:
  • LED details: 40 Lumileds LUXEON® Rebel LED
  • Max lumens: Vivid: 2,252
  • Lumens per watt: Vivid: 23.6
  • L70 rating (hours to 70% output): 50,000 hours
• Color:
  • Colors used: Vivid: Red, Red-Orange, Amber, Green, Cyan, Blue, Indigo
  • Color temperature range: 2,700–6,500 K
  • Calibrated array: Vivid: Yes
  • Red shift: Yes (not available on static-white)
• Optical:
  • Beam angle range: 8°–17°
  • Gate size: N/A
  • Aperture size: 7.5 in
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: Yes: 900–25,000 Hz
  • Notes: Secondary lenses available for multiple beam-spread options
• Control:
  • Input method: DMX512 via termination board
  • Protocols: DMX512/RDM
  • RDM configuration: Yes
  • UI type: None (configure via RDM)
  • Local control: No
  • Onboard presets: Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: No
  • Notes: 15-bit virtual dimming engine
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: Waterproof, 72 in power lead Requires power from non-dimmable source
  • Inrush: 15 A at 120 V (First half-cycle)/40 A at 240 V (First half-cycle)
  • Fixtures per circuit (All measurements are for 120 V, 60 Hz. Results may vary in different regions.)- 10 (15 A may be fed on same circuit)
  • Wattage typical: 110
  • Current draw: 1/0.5 A
• Thermal:
  • Ambient operating temp: -20°–40° C (-4°–104° F)
  • Fan (controllable): No
  • Droop compensation: Yes
  • dB range: N/A
  • BTUs/hour: 375.32
• Physical:
  • Materials: Die-cast, all metal housing
  • Color options: White
  • Mounting options: Single-pole mount, wall or square pole mount, twin fixture pole mount
  • IP rating: IP66 for exterior, wet location use
  • Weight: 6.8 kg (15 lb)
  • Included accessories: Hanging yoke, termination board, accessory ring for installation of secondary lenses
  • Notes: Cable diameter: Power 0.36 in / Data 0.34 in Effective projected area (EPA): 0.74
• Warranty:
  • Fixture: 5 years
  • LED array: 10 years
• Regulatory and Compliance:
  • Approved regulatory standards :
    • cETLus Listed
    • Conforms to UL1598
    • Certified to CSA C22.2 No. 250.0
    • CE Compliant
