ETC Selador Desire D40XTI Lustr+ LED Par with Edison Plug - Black
ETC Selador Desire D40XTI Lustr+ LED Par - Black
The Selador Desire D40XTI brings the amazing control of the seven-color x7 Color System to your permanent application. With its IP66 rating, this fixture is ready for installation inside or outside – wherever you need it. The x7 Color System produces the widest range of spectrally balanced saturated and tinted color choices available. The D40XTI offers a rugged die-cast enclosure, noiseless fan-free operation, and multiple lens options that can be changed on-site.
D40XTI Lustr+: Optimized with six colors plus high-intensity white LEDs to create an ideal frontlight wash fixture; full-range color, with an emphasis on lighter colors and white

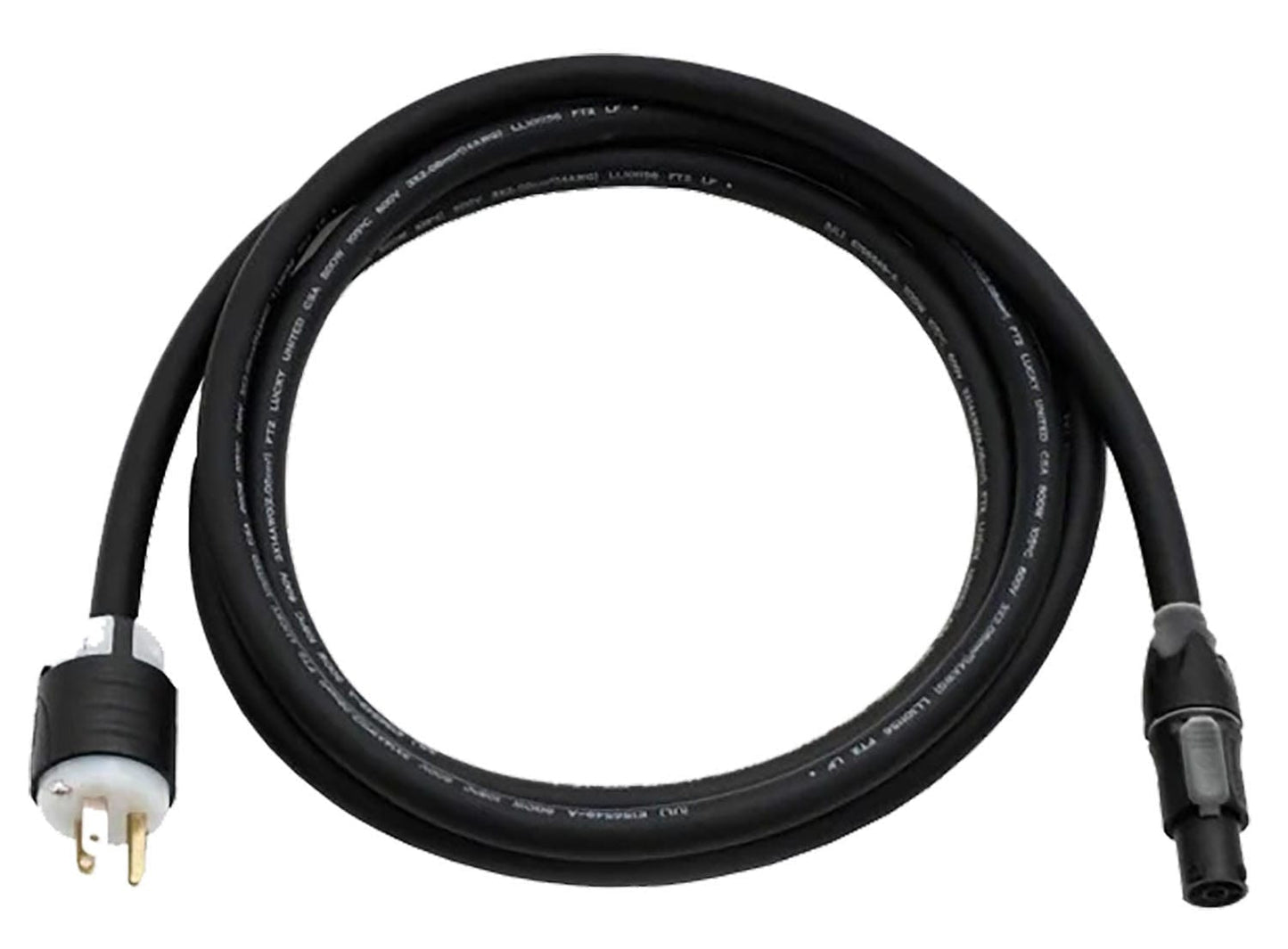

ETC T1PA-A-1 Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable - Black
6 ft TRUE1 TOP to parallel blade U-ground (Edison) connector.
Specifications:
- Source:
- LED details: 40 Lumileds LUXEON® Rebel LED
- Max lumens: Lustr+: 2,593
- Lumens per watt: Lustr: 25.2
- L70 rating (hours to 70% output): 50,000 hours
- Color:
- Colors used: Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
- Color temperature range: 2,700–6,500 K
- Calibrated array: Lustr: Yes
- Red shift: Yes (not available on static-white)
- Optical:
- Beam angle range: 8°–17°
- Gate size: N/A
- Aperture size: 7.5 in
- Pattern projection: No
- Pattern size: N/A
- Camera flicker control/Hz range: Yes: 900–25,000 Hz
- Notes: Secondary lenses available for multiple beam-spread options
- Control:
- Input method: DMX512 via termination board
- Protocols: DMX512/RDM
- RDM configuration: Yes
- UI type: None (configure via RDM)
- Local control: No
- Onboard presets: Yes
- Onboard sequences: Yes
- Onboard effects: No
- Fixture-to-fixture control: No
- Notes: 15-bit virtual dimming engine
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: Waterproof, 72 in power lead Requires power from non-dimmable source
- Inrush: 15 A at 120 V (First half-cycle)/40 A at 240 V (First half-cycle)
- Fixtures per circuit (All measurements are for 120 V, 60 Hz. Results may vary in different regions.)- 10 (15 A may be fed on same circuit)
- Wattage typical: 110
- Current draw: 1/0.5 A
- Thermal:
- Ambient operating temp: -20°–40° C (-4°–104° F)
- Fan (controllable): No
- Droop compensation: Yes
- dB range: N/A
- BTUs/hour: 375.32
- Physical:
- Materials: Die-cast, all metal housing
- Color options: Black
- Mounting options: Single-pole mount, wall or square pole mount, twin fixture pole mount
- IP rating: IP66 for exterior, wet location use
- Weight: 6.8 kg (15 lb)
- Included accessories: Hanging yoke, termination board, accessory ring for installation of secondary lenses
- Notes: Cable diameter: Power 0.36 in / Data 0.34 in Effective projected area (EPA): 0.74
- Warranty:
- Fixture: 5 years
- LED array: 10 years
- Regulatory and Compliance:
- Approved regulatory standards- :
- cETLus Listed
- Conforms to UL1598
- Certified to CSA C22.2 No. 250.0
- CE Compliant
- LED details: 40 Lumileds LUXEON® Rebel LED
- Max lumens: Lustr+: 2,593
- Lumens per watt: Lustr: 25.2
- L70 rating (hours to 70% output): 50,000 hours
- Colors used: Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
- Color temperature range: 2,700–6,500 K
- Calibrated array: Lustr: Yes
- Red shift: Yes (not available on static-white)
- Beam angle range: 8°–17°
- Gate size: N/A
- Aperture size: 7.5 in
- Pattern projection: No
- Pattern size: N/A
- Camera flicker control/Hz range: Yes: 900–25,000 Hz
- Notes: Secondary lenses available for multiple beam-spread options
- Input method: DMX512 via termination board
- Protocols: DMX512/RDM
- RDM configuration: Yes
- UI type: None (configure via RDM)
- Local control: No
- Onboard presets: Yes
- Onboard sequences: Yes
- Onboard effects: No
- Fixture-to-fixture control: No
- Notes: 15-bit virtual dimming engine
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: Waterproof, 72 in power lead Requires power from non-dimmable source
- Inrush: 15 A at 120 V (First half-cycle)/40 A at 240 V (First half-cycle)
- Fixtures per circuit (All measurements are for 120 V, 60 Hz. Results may vary in different regions.)- 10 (15 A may be fed on same circuit)
- Wattage typical: 110
- Current draw: 1/0.5 A
- Ambient operating temp: -20°–40° C (-4°–104° F)
- Fan (controllable): No
- Droop compensation: Yes
- dB range: N/A
- BTUs/hour: 375.32
- Materials: Die-cast, all metal housing
- Color options: Black
- Mounting options: Single-pole mount, wall or square pole mount, twin fixture pole mount
- IP rating: IP66 for exterior, wet location use
- Weight: 6.8 kg (15 lb)
- Included accessories: Hanging yoke, termination board, accessory ring for installation of secondary lenses
- Notes: Cable diameter: Power 0.36 in / Data 0.34 in Effective projected area (EPA): 0.74
- Fixture: 5 years
- LED array: 10 years
- Approved regulatory standards- :
- cETLus Listed
- Conforms to UL1598
- Certified to CSA C22.2 No. 250.0
- CE Compliant
