ETC Selador Desire D40XT Studio Tungsten LED Par with Edison Plug - Black

The SELD40TO-0X-A package contains the following components:

*ETC Selador Desire D40XT Studio Tungsten LED Par - Black

ETC’s Desire Series D40XT Studio lighting fixture puts the newest technology in high-output white-light LEDs into a sealed IP66 outdoor-rated enclosure to create an ideal luminaire for video, film and other ‘white light only’ applications. Its watertight construction makes it ideal for location lighting. Three different LED options give the user a choice for just the right white light output for the job. The D40XT Studio offers a rugged die-cast enclosure; noiseless, no fan cooling; multiple lens options and advanced user interface. The user interface enables easy configuration and specific features for video and film professionals. The fixture can be configured to operate under console control for studio systems or in stand-alone ‘no console required’ settings.

D40XT Studio Tungsten – Studio Tungsten contains forty 3000 K LEDs for high-intensity, non-variable warm-white output.

PRODUCT SPECIFICATIONS

• Source
• LED details- 40 Lumileds LUXEON® Rebel LED
• Max lumens- Studio Tungsten: 5,023
• Lumens- Studio Tungsten: 52.8
• L70 rating (hours to 70% output)- 50,000 hours
• Color
• Colors used- Studio Tungsten: White
• Color temperature range- Studio Tungsten: 5600 K
• Calibrated array- Studio Tungsten: No
• Red shift- Yes
• Optical
• Beam angle range- 8°–71°
• Aperture size- 7.5 in
• Pattern projection- No
• Pattern size- N/A
• Camera flicker control/Hz range- Yes: 900–25,000 Hz
• Notes-
• Secondary lenses available for multiple beam-spread options
• Sealed, factory-installed lenses available for permanent installations
• Control
• Input method- DMX512 via watertight 5-pin XLR
• Protocols- DMX512/RDM
• Modes (footprint)- See page 5
• RDM configuration- Yes
• UI type- LCD
• Local control- Yes
• Onboard presets- Yes
• Onboard sequences- Yes
• Onboard effects- No
• Fixture-to-fixture control- Yes
• Notes- 15-bit virtual dimming engine
• Electrical
• Voltage range- 100–240 VAC 50/60 Hz
• Input method- Waterproof, 39 in power in and thru Requires power from non-dimmable source
• Inrush-
• 15 A at 120 V (First half-cycle)
• 40 A at 240 V (First half-cycle)
• Fixtures per circuit (Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.)- 10 (15 A may be fed on same circuit)
• Wattage typical- 110
• Current draw- 1/0.5 A
• Thermal
• Ambient operating temp- -20°–40° C (-4°–104° F)
• Fan (controllable)- No
• Droop compensation- Yes
• dB range- N/A
• BTUs/hour- 375.32
• Physical
• Materials- Die-cast, all metal housing
• Color options- Black
• IP rating- IP66 for exterior, wet location use
• Weight- 6.4 kg (14 lb)
• Included accessories- Hanging yoke, optional yoke/floor stand
• Warranty
• Fixture- 5 years
• LED array- 10 years
• Regulatory and Compliance
• Approved regulatory standards-
• cETLus Listed
• Conforms to UL1598
• Certified to CSA C22.2 No. 250.0
• CE Compliant

ETC utilizes a nationally recognized 3rd party lab for luminaire testing according to IES LM-84. See etcconnect.com/About/News/ETCFixture-Ratings-and-Warranties-Extended.aspx.

All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. In individual situations, LEDs will be used for different durations and levels. This can eventually lead to minor alterations in color performance, necessitating slight adjustments to presets, cues or programs.

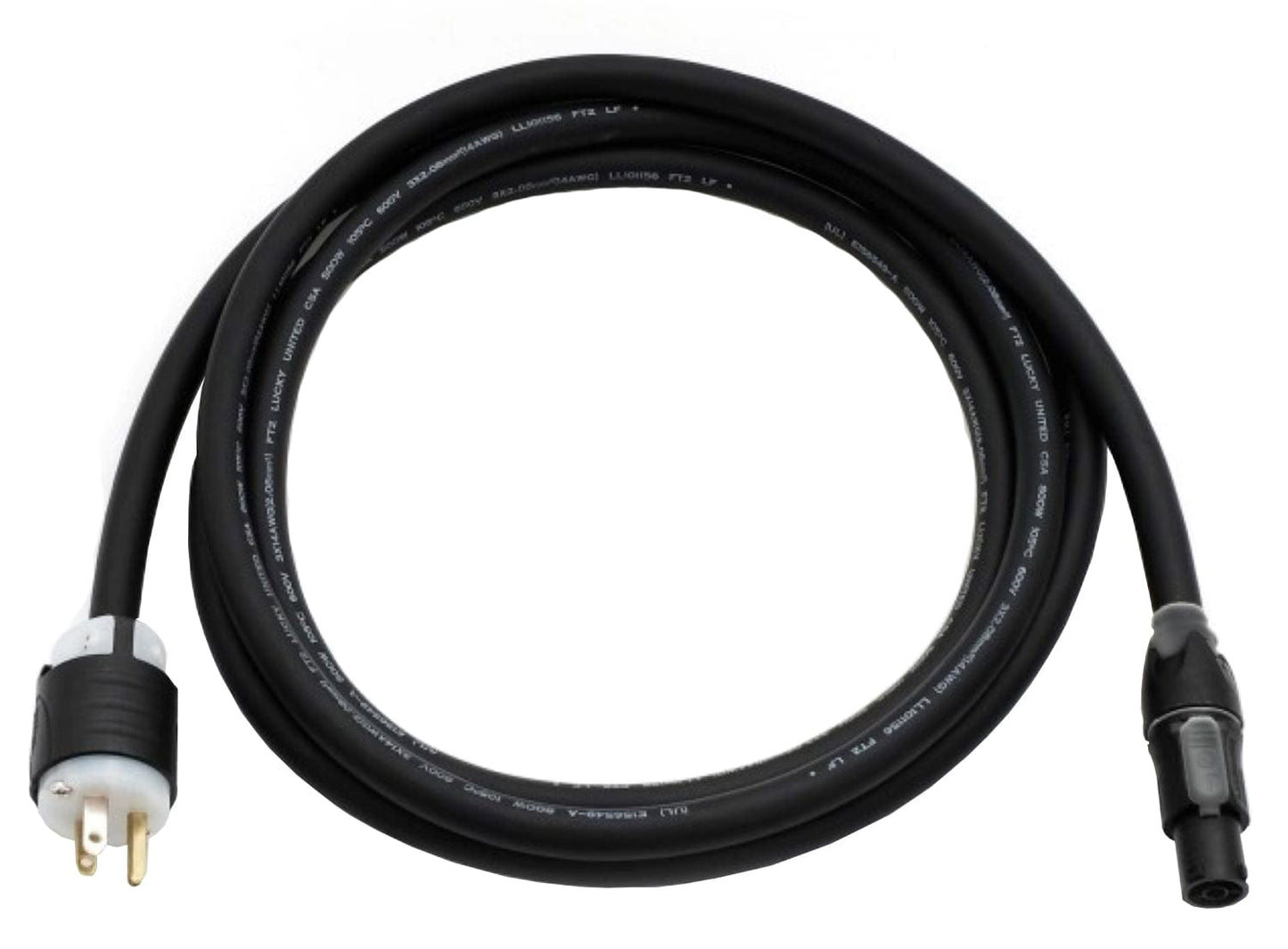

*ETC T1PA-A Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable, Black

6-foot TRUE1 TOP to parallel blade U-ground (Edison) connector.
