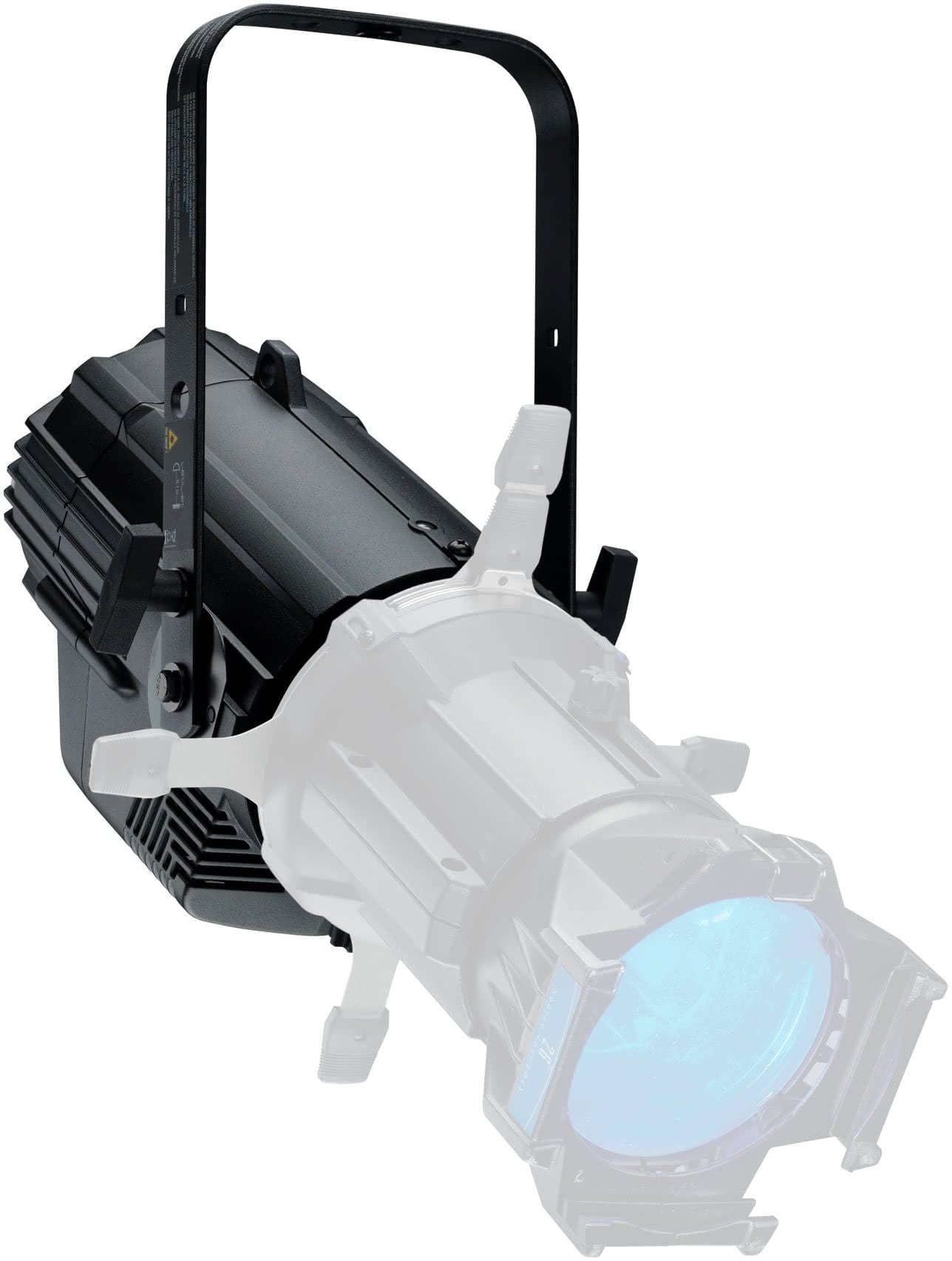

ETC S4LEDS2L-0 Source Four LED Series 2 Lustr, Light Engine Only (without Shutter Barrel), Black
The S4LEDS2L-0-A from ETC is a Source Four LED Series 2 Lustr Light Engine Body Only in the color black. Comes with one of the following connectors: Bare End, Edison, Twist Lock, or Stage Pin. This unit is intended for use with zoom lens tubes and retrofit of existing fixtures.
The Source Four LED Series 2 is the evolution of LED lighting. While it may look the same on the outside, the Series 2 offers even more of what makes the Source Four LED the best LED profile available. With optimized arrays and finely-tuned electronics, the Series 2 offers a combination of color and output that cannot be matched. Source Four LED Series 2 Lustr® luminaires are based on the x7 Color System™, utilizing seven colors including high-output lime to achieve true, usable broad-spectrum color with a depth and feel beyond any RGB fixture.
Series 2 Lustr light engines work with all Source Four lens tubes to deliver a high-quality, controllable beam of LED light. For the best results, it is highly recommended that EDLT versions are used. ETC also offers a special LED-only version of the 50° lens tube.
Features:
- 60 Luxeon® Rebel LED emitters
- 20,000-hour LED life
- Patented x7 Color System array
- Includes slots for glass or stainless steel gobopatterns and soft focus diffuser media
- Accessory slot for motorised pattern devices oroptional iris
- Power in/thru via PowerCon connections
- Up to three fixtures can be linked in via powerin/thru connectors (four total fixtures per circuit)
- DMX512-A/RDM in/thru via five-pin XLR connectors
- Multiple control options, including RGB, strobe, andconsole-free Primary/Secondary mode
- 15-bit virtual dimming engine for smooth fades andminimal color shift during dimming
- CE compliant; IP20 rated
- Available in black (standard), white or silver grey (optional) or custom colors by request
Specifications:
- General:
- 60-LED array
- ETL listed to UL1573 – the standard for stage and studio lighting units
- IP20-rated for indoor use
- Power and DMX in/thru connections for easy setup
- User-friendly control interface with multiple modes and fixture settings
- Physical:
- Rugged die-cast all-metal housing
- Available in black (standard), white or silver gray (optional) or custom colors (contact factory)
- C-clamp
- Positive-locking double-clutch fixture body
- Slot for glass or stainless steel patterns and softfocus diffuser
- Wide accessory slot with sliding cover for motorized pattern devices or optional iris
- Hanging yoke standard. Optional yoke/floor stand available
- Electrical:
- 100VAC to 240VAC 50/60 Hz universal power input
- Neutrik power in and thru connections
- Up to three fixtures (15A max) may be linked via power thru connector (four fixtures total per circuit)
- Requires power from a non-dim source
- LED:
- 20,000-hour LED life (20,000 hours to 70% intensity)
- 60 Luxeon® Rebel LED emitters
- Color:
- Exclusive x7 Color System seven-color LED array
- Beautifully illuminates skin tones and other objects for natural appearance and high color rendering
- Broad-spectrum color interacts seamlessly with conventional sources
- Exclusive optional red-shift option emulates tungsten dimming performance
- Optical:
- Use the included soft-focus diffuser for creating washes or soft light
- Best performance using ETC’s EDLT lens tubes
- Can use all ETC Source Four interchangeable lens barrels: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 70°, and 90° field angles, as well as 19°, 26°, 36°, and 50° EDLT lenses
- For better performance, use the LED 50° barrel
- Control:
- DMX512 in and thru via five-pin XLR connectors
- Multiple control options, including RGB, strobe, and console free Primary/Secondary mode
- 15-bit virtual dimming engine provides smooth,high-quality theatrical fades and minimizes color shift during dimming
- RDM functionality for address and setting changes
- Thermal:
- Ambient operating temperature of 32° to 104°F (0° to40°C)
- A ctive electronic thermal management for droop-free operation
- Quiet fan cooling
- Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
- Weight:
- With Barrel: 18.3 lbs (8.3 kgs)
- Without Barrel: 14.3 lbs (6.5 kgs)
