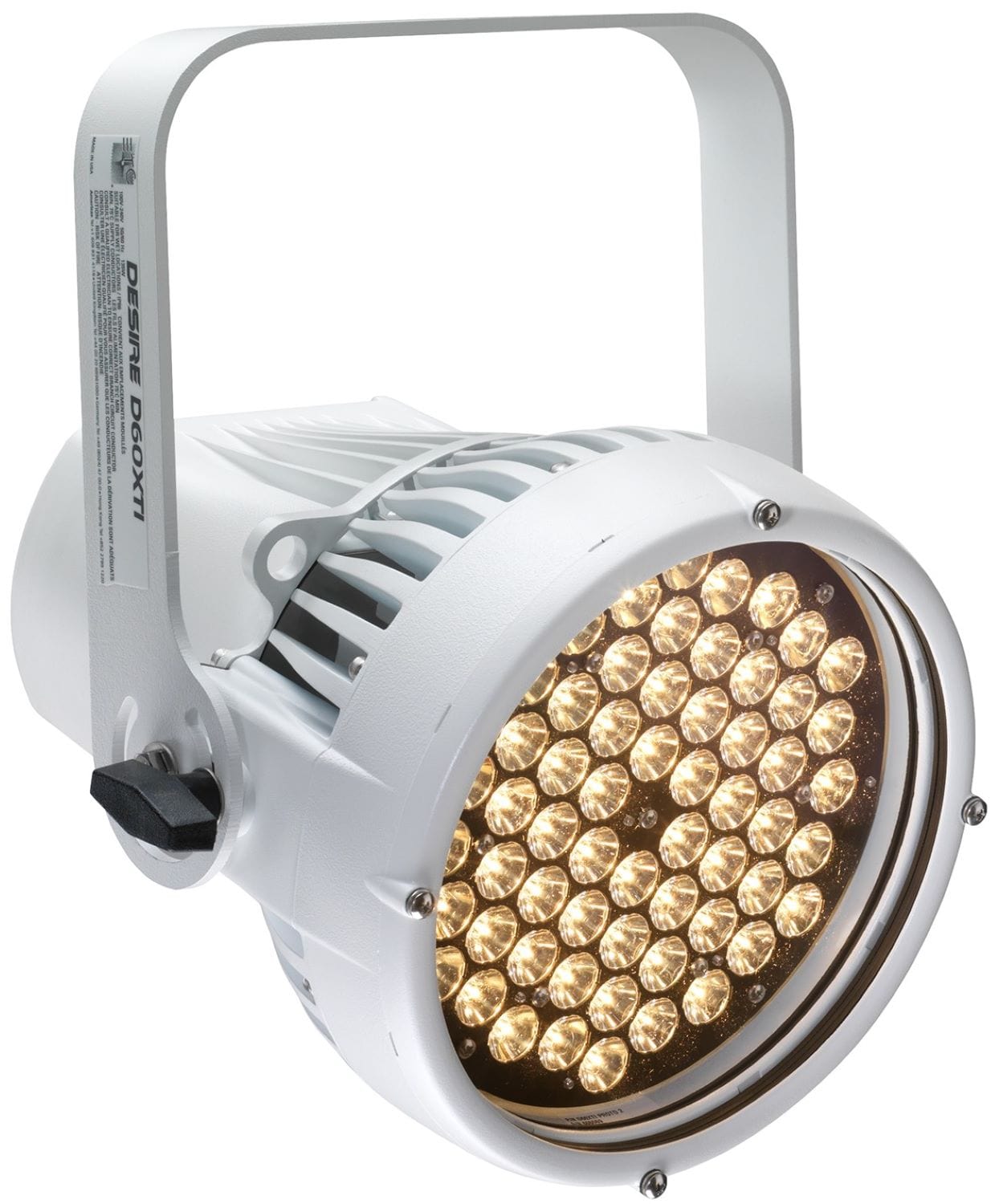

ETC Desire D60XTI Studio HD LED Par - White
ETC’s Desire Series D60XTI brings the amazing control of the x7 Color System and the long throw of a D60 to your facility for permanent installation. With its IP66 rating, this luminaire is ready for mounting inside or outside–wherever you need it. The x7 Color System produces the widest range of spectrally-balanced saturated and tinted color choices available. The D60XTI offers a rugged die-cast enclosure, noiseless fanfree operation and multiple lens options that can be changed on site.
D60XTI Studio HD – Studio HD combines warm white and cool white LEDs for variable color temperature mixing. Added to this are five carefully chosen LED colors from the Selador x7 color system to fill in the white LED spectral gaps. D60XTI Studio HD provides the richest variable white light possible in an LED luminaire.
Specifications:
- Source:
- LED details: 60 Lumileds LUXEON® Rebel LED
- Max lumens: Studio HD: 4,532
- Lumens per watt: Studio HD: 33.4
- L70 rating (hours to 70% output): 50,000 hours
- Color:
- Colors used: Studio HD: Red, Amber, Green/Cyan, Blue, Warm White, Cool White
- Color temperature range: 2,700–6,500 K
- Calibrated array: Studio HD: Yes
- Red shift: Yes (not available on static white)
- Optical:
- Beam angle range: 8°–17°
- Aperture size: 9 in
- Pattern projection: No
- Pattern size: N/A
- Camera flicker control/Hz range: Yes: 900–25,000 Hz
- Notes: Secondary lenses available for multiple beam-spread options
- Control:
- Input method: DMX512 via termination board
- Protocols: DMX512/RDM
- RDM configuration: Yes
- UI type: None (configure via RDM)
- Local control: No
- Onboard presets: Yes
- Onboard sequences: No
- Onboard effects: No
- Fixture-to-fixture control: No
- Notes: 15-bit virtual dimming engine
- Electrical:
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: Waterproof, 72” outdoor power lead/Requires power from non-dim source
- Inrush: 46 A at 120 V (First half-cycle) 77 A at 240 V (First half-cycle)
- Fixtures per circuit(All measurements are for 120 V, 60 Hz. Results may vary in different regions.): 10 (15 A may be fed on same circuit)
- Wattage typical: 124
- Current draw: 1 A
- Thermal:
- Ambient operating temp: -20°–40° C (-4°–104° F)
- Fan (controllable): No
- Droop compensation: Yes
- dB range: N/A
- BTUs/hour: 423.088
- Physical:
- Materials: Die-cast, all metal housing
- Color options: White
- Mounting options: Single-pole mount, wall or square pole mount, twin fixture pole mount
- IP rating: IP66 for exterior wet-location
- Weight: 10.43 kg (23 lb)
- Included accessories: Hanging yoke, data termination board, accessory ring for installations of secondary lenses
- Notes:
- Cable diameter: power 0.53 in
- Effective projected area (EPA): 0.95
- Warranty:
- Fixture: 5 years
- LED array: 10 years
- Regulatory and Compliance:
- Approved regulatory standards:
- cETLus Listed
- Conforms to UL1598
- Certified to CSA C22.2 No. 250.0
- CE Compliant
