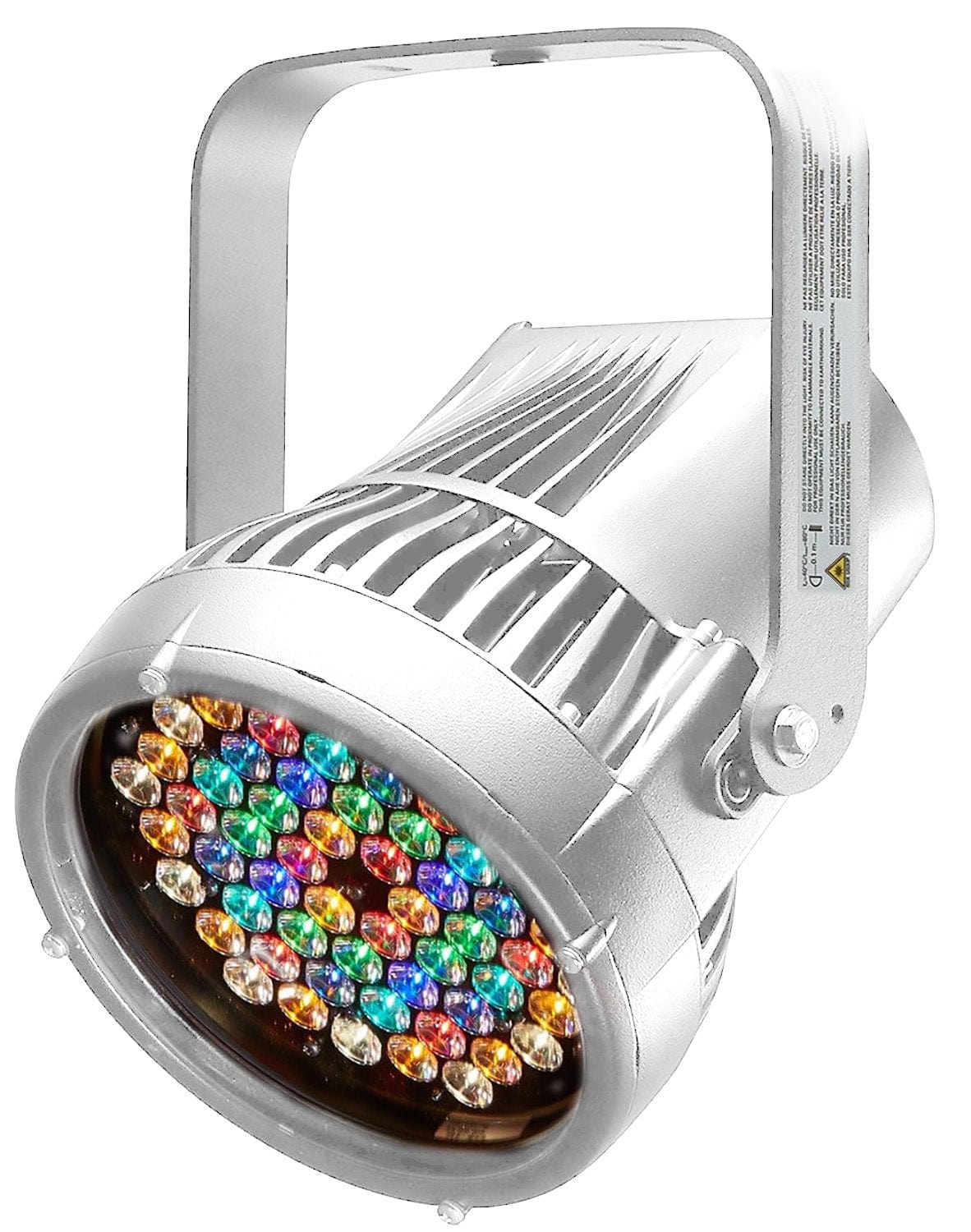

ETC Desire D60X Lustr+ LED Par - White
ETC’s Desire Series D60X brings the amazing control of the x7 Color System and the long throw of a D60 to a portable, IP66 rated fixture. This luminaire is ready for mounting inside or outside–wherever you need it. The x7 Color System produces the widest range of spectrally-balanced saturated and tinted color choices available. The D60X offers a rugged die-cast enclosure, noiseless fan-free operation and multiple lens options that can be changed on-site.
D60X Lustr+ – optimized with six colors plus high-intensity white LEDs to create an ideal frontlight wash fixture. Full range color, with an emphasis on lighter colors and white.
Specifications:
- Source:
- LED details: LED details
- Max lumens: Lustr+: 4,317
- Lumens per watt: Lustr+: 34.9
- L70 rating (hours to 70% output): 50,000 hours
- Color:
- Colors used: Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
- Color temperature range: 2,700–6,500K
- Calibrated array: Lustr+: Yes
- Red shift- Yes (not available on static white)
- Optical:
- Beam angle range: 8°–17°
- Aperture size: 9 in
- Pattern projection: No
- Pattern size: N/A
- Camera flicker control/Hz range: Yes: 900–25,000 Hz
- Notes: Secondary lenses available for multiple beam-spread options
- Control:
- Input method: DMX512 via termination board
- Protocols: DMX512/RDM
- RDM configuration: Yes
- UI type: None (configure via RDM)
- Local control: No
- Onboard presets: Yes
- Onboard sequences: No
- Onboard effects: No
- Control:
- Onboard sequences: Yes
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Notes: 15-bit virtual dimming engine
- Electrical:
- Voltage range: 100 VAC–240 VAC 50/60 Hz
- Input method: Waterproof, 39 in power lead Requires power from non-dim source
- Inrush: 46 A at 120 V (First half-cycle) 77 A at 240 V (First half-cycle)
- Fixtures per circuit(All measurements are for 120 V, 60 Hz. Results may vary in different regions.)- 10 (15 A may be fed on same circuit)
- Wattage typical: 124
- Current draw: 1 A
- Thermal:
- Ambient operating temp: -20°–40° C (-4°–104° F)
- Fan (controllable): No
- Droop compensation: Yes
- dB range: N/A
- BTUs/hour: 423.088
- Physical:
- Materials: Die-cast, all metal housing
- Color options: White
- IP rating: IP66 for exterior wet-location
- Weight: 10.43 kg (23 lb)
- Included accessories: Hanging yoke
- Warranty:
- Fixture: 5 years
- LED array: 10 years
- Regulatory and Compliance:
- Approved regulatory standards:
- cETLus Listed
- Conforms to UL1598
- Certified to CSA C22.2 No. 250.0
- CE Compliant
- LED details: LED details
- Max lumens: Lustr+: 4,317
- Lumens per watt: Lustr+: 34.9
- L70 rating (hours to 70% output): 50,000 hours
- Colors used: Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
- Color temperature range: 2,700–6,500K
- Calibrated array: Lustr+: Yes
- Red shift- Yes (not available on static white)
- Beam angle range: 8°–17°
- Aperture size: 9 in
- Pattern projection: No
- Pattern size: N/A
- Camera flicker control/Hz range: Yes: 900–25,000 Hz
- Notes: Secondary lenses available for multiple beam-spread options
- Input method: DMX512 via termination board
- Protocols: DMX512/RDM
- RDM configuration: Yes
- UI type: None (configure via RDM)
- Local control: No
- Onboard presets: Yes
- Onboard sequences: No
- Onboard effects: No
- Onboard sequences: Yes
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Notes: 15-bit virtual dimming engine
- Voltage range: 100 VAC–240 VAC 50/60 Hz
- Input method: Waterproof, 39 in power lead Requires power from non-dim source
- Inrush: 46 A at 120 V (First half-cycle) 77 A at 240 V (First half-cycle)
- Fixtures per circuit(All measurements are for 120 V, 60 Hz. Results may vary in different regions.)- 10 (15 A may be fed on same circuit)
- Wattage typical: 124
- Current draw: 1 A
- Ambient operating temp: -20°–40° C (-4°–104° F)
- Fan (controllable): No
- Droop compensation: Yes
- dB range: N/A
- BTUs/hour: 423.088
- Materials: Die-cast, all metal housing
- Color options: White
- IP rating: IP66 for exterior wet-location
- Weight: 10.43 kg (23 lb)
- Included accessories: Hanging yoke
- Fixture: 5 years
- LED array: 10 years
- Approved regulatory standards:
- cETLus Listed
- Conforms to UL1598
- Certified to CSA C22.2 No. 250.0
- CE Compliant
