ETC Desire D60X Lustr+ LED Par with Edison Plug - White

ETC Desire D60X Lustr+ LED Par - White

ETC’s Desire Series D60X brings the amazing control of the x7 Color System and the long throw of a D60 to a portable, IP66 rated fixture. This luminaire is ready for mounting inside or outside–wherever you need it. The x7 Color System produces the widest range of spectrally-balanced saturated and tinted color choices available. The D60X offers a rugged die-cast enclosure, noiseless fan-free operation and multiple lens options that can be changed on-site.

D60X Lustr+ – optimized with six colors plus high-intensity white LEDs to create an ideal frontlight wash fixture. Full range color, with an emphasis on lighter colors and white.

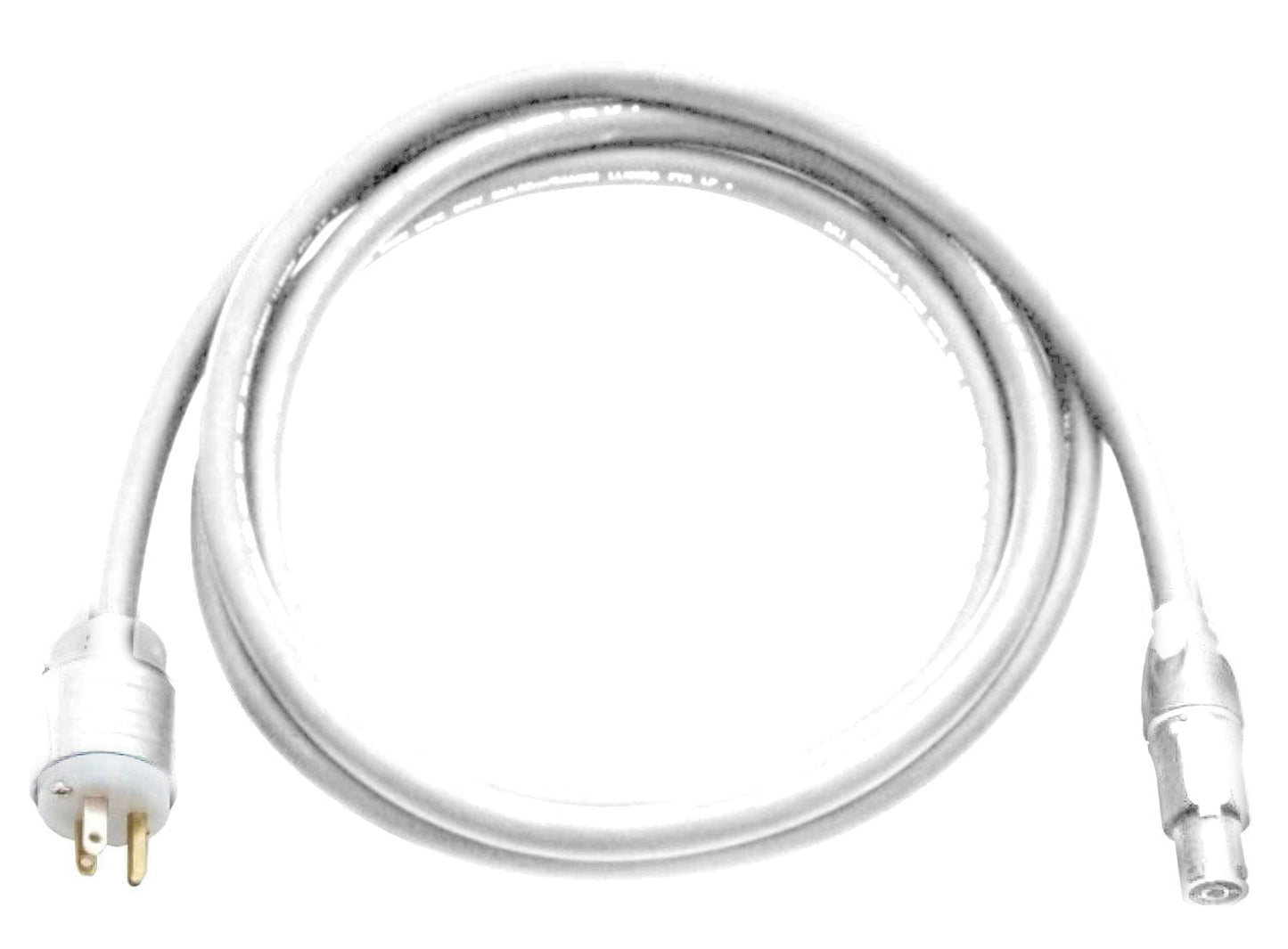

ETC T1PA-A-1 Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable - White

6 ft TRUE1 TOP to parallel blade U-ground (Edison) connector.

Specifications:

• Source:
  • LED details: LED details
  • Max lumens: Lustr+: 4,317
  • Lumens per watt: Lustr+: 34.9
  • L70 rating (hours to 70% output): 50,000 hours
• Color:
  • Colors used: Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
  • Color temperature range: 2,700–6,500K
  • Calibrated array: Lustr+: Yes
  • Red shift: Yes (not available on static white)
• Optical:
  • Beam angle range: 8°–17°
  • Aperture size: 9 in
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: Yes: 900–25,000 Hz
  • Notes: Secondary lenses available for multiple beam-spread options
• Control:
  • Input method: DMX512 via termination board
  • Protocols: DMX512/RDM
  • Modes (footprint): See page 6
  • RDM configuration: Yes
  • UI type: None (configure via RDM)
  • Local control: No
  • Onboard presets: Yes
  • Onboard sequences: No
  • Onboard effects: No
• Control:
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100 VAC–240 VAC 50/60 Hz
  • Input method: Waterproof, 39 in power lead Requires power from non-dim source
  • Inrush: 46 A at 120 V (First half-cycle) 77 A at 240 V (First half-cycle)
  • Fixtures per circuit(All measurements are for 120 V, 60 Hz. Results may vary in different regions.)- 10 (15 A may be fed on same circuit)
  • Wattage typical: 124
  • Current draw: 1 A
• Thermal:
  • Ambient operating temp: -20°–40° C (-4°–104° F)
  • Fan (controllable): No
  • Droop compensation: Yes
  • dB range: N/A
  • BTUs/hour: 423.088
• Physical:
  • Materials: Die-cast, all metal housing
  • Color options: White
  • IP rating: IP66 for exterior wet-location
  • Weight: 10.43 kg (23 lb)
  • Included accessories: Hanging yoke
• Warranty:
  • Fixture: 5 years
  • LED array: 10 years
• Regulatory and Compliance:
  • Approved regulatory standards:
    • cETLus Listed
    • Conforms to UL1598
    • Certified to CSA C22.2 No. 250.0
    • CE Compliant
