ETC Desire D60 Vivid LED Par with Edison Plug - Black

ETC Desire D60 Vivid LED Par - Black

The ETC Desire D60 fixture puts the seven-color x7 system into a high-brightness, 60-emitter, round theatrical washlight. Highly efficient primary lenses and careful color choices make the D60 fixture ideal for stage, studio and anywhere strong color and high-intensity are requirements. The x7 Color System produces the widest range of spectrally-balanced saturated and tinted color choices available. The D60’s rugged die-cast enclosure; quiet, fan-cooled operation; multiple lens options; and advanced user interface make it ideal for multiple applications.

D60 Vivid – the x7 Color System array balanced for best all-around use as a color-changing wash fixture

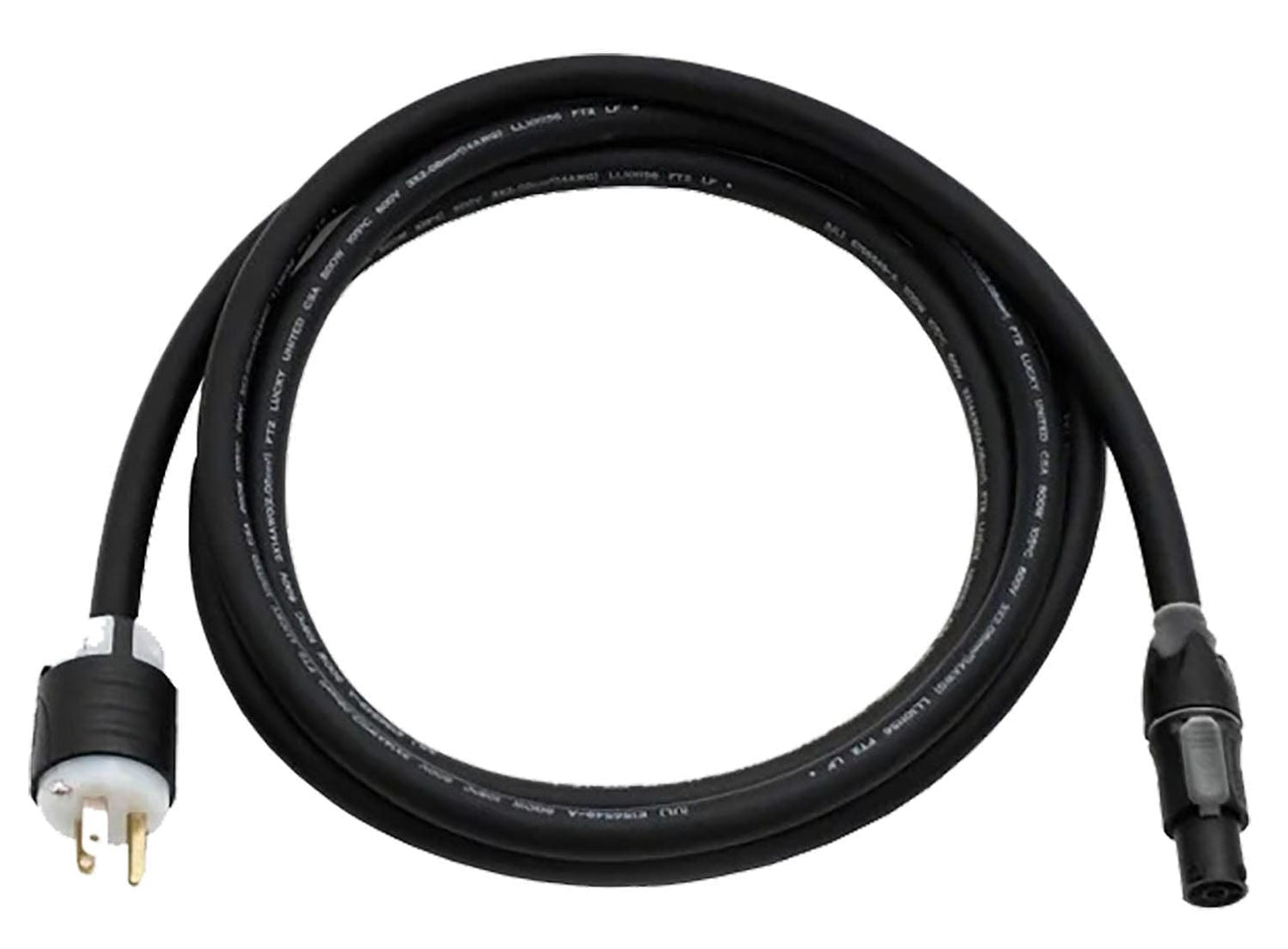

ETC T1PA-A Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable, Black

6-foot TRUE1 TOP to parallel blade U-ground (Edison) connector.

Specifications:

• Source:
  • LED details: 60 Lumileds LUXEON® Rebel LED
  • Max lumens: Vivid: 3,760
  • Lumens per watt: Vivid: 28.8
  • L70 rating (hours to 70% output): 50,000 hours
• Color:
  • Colors used: Vivid: Red, Red-Orange, Amber, Green, Cyan, Blue, Indigo
  • Color temperature range: 2700–6500 K
  • Calibrated array: Yes
  • Red shift: Yes
• Optical:
  • Beam angle range: 8°–71°
  • Aperture size: 9 in
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: Yes: 900–25,000 Hz
  • Notes: Secondary lenses available for multiple beam-spread options
• Control:
  • Input method: DMX512 via 5-pin XLR
  • Protocols: DMX512/RDM
  • RDM configuration: Yes
  • UI type: LCD
  • Local control: Yes
  • Onboard presets: Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: Neutrik powerCON® in and thru Requires power from non-dimmable source
  • Inrush:
    • 15 A at 120 V (First half-cycle)
    • 40 A at 240 V (First half-cycle)
  • Fixtures per circuit(All measurements are for 120 V, 60 Hz. Results may vary in different regions.):
    • 9 (15 A via power thru)
    • 10 (R20 via module or similar)
  • Wattage typical: 161 W
  • Current draw- :
    • 1.21 A at 120 V
    • 0.57 A at 240 V
• Thermal:
  • Ambient operating temp: -20°–40°C (-4°–104°F)
  • Fan (controllable): Yes (yes)
  • Droop compensation: Yes
  • dB range: 25 dBa average at 1 m
  • BTUs/hour: 549
• Physical:
  • Materials: Die-cast, all metal housing
  • Color options: Black
  • Mounting options: Yoke
  • IP rating: IP20
  • Weight: 8.7 kg (19.1 lb)
• Warranty:
  • Fixture: 5 years
  • LED array: 10 years
• Regulatory and Compliance:
  • Approved regulatory standards:
    • UL 1573
    • CSA C22.2 No. 166
    • CE Compliant
    • EAC Compliant
