ETC Desire D40XT Lustr+ LED Par with Edison Plug - Black

ETC Desire D40XT Lustr+ LED Par - Black

ETC’s Desire Series D40XT puts the seven-color x7 system into a round theatrical wash light fully sealed and rated for IP66 outdoor use. The x7 Color System produces the widest range of spectrally-balanced saturated and tinted color choices available. The D40XT offers a rugged die-cast enclosure, noiseless fan-free operation, multiple lens options and advanced user interface. Its watertight construction makes it ideal for outdoor events and installations.

D40XT LED ARRAY OPTIONS - D40XT fixtures are based on the x7 Color System that uses seven different LED colors to achieve true, usable broad-spectrum color. The D40XT luminaire is available with any one of the following x7 color arrays to best suit the intended application.

D40XT Lustr+ – optimized with six colors plus high-intensity white LEDs to create an ideal front light wash fixture. Full range color, with an emphasis on lighter colors and white.

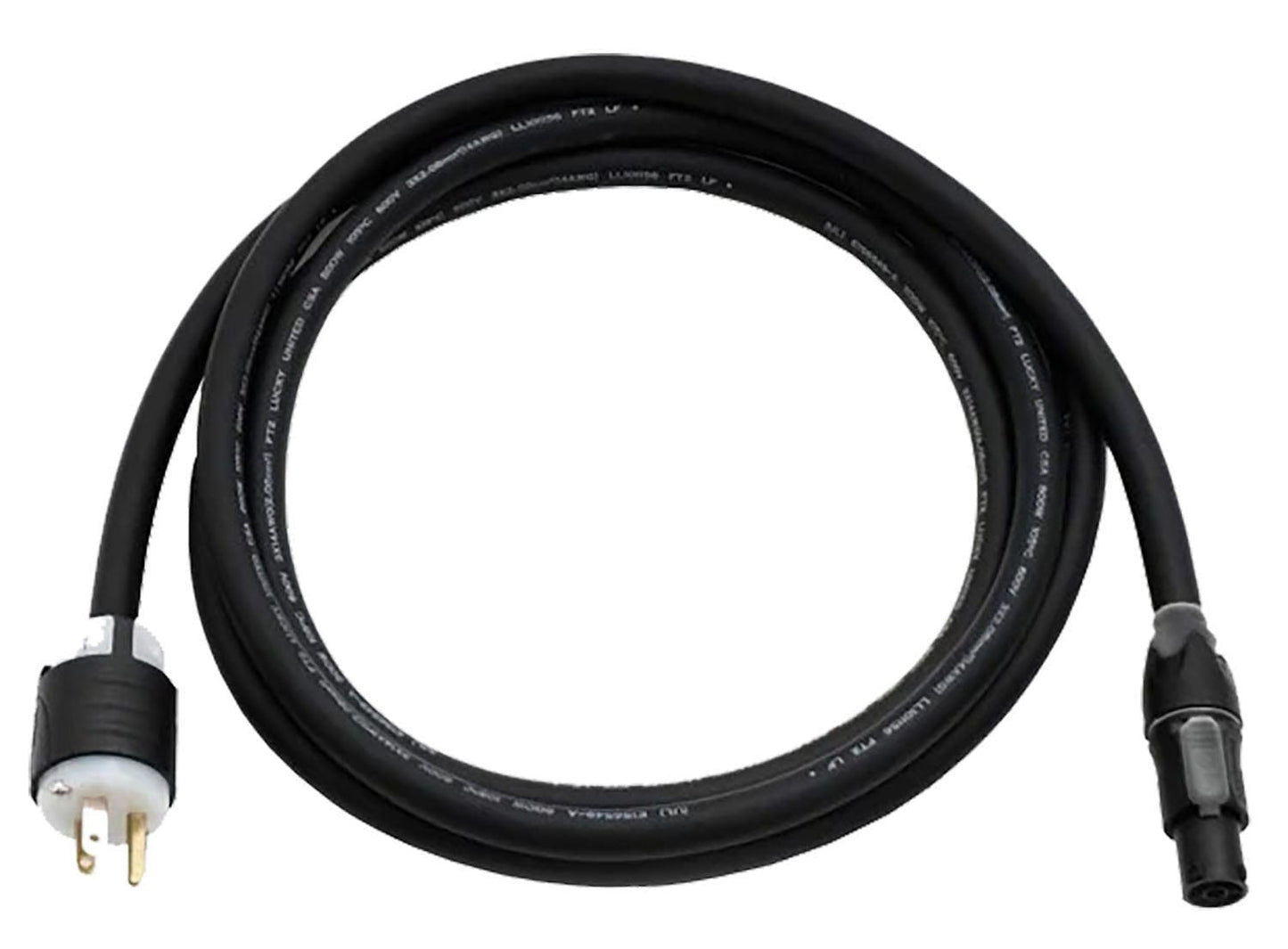

ETC T1PA-A Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable, Black

6-foot TRUE1 TOP to parallel blade U-ground (Edison) connector.

Specifications:

• Source:
  • LED details: 40 Lumileds LUXEON® Rebel 2.5 W LED
  • Max lumens: Lustr+: 2,593
  • Lumens per watt: Lustr+: 25.2
  • L70 rating (hours to 70% output): 50,000 hours
• Color:
  • Colors used: Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
  • Color temperature range: 2,700–6,500 K
  • Calibrated array: Lustr: Yes
  • Red shift: Yes
• Optical:
  • Beam angle range: 8°–71°
  • Aperture size: 7.5 in
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: Yes: 900–25,000 Hz
  • Notes: Secondary lenses available for multiple beam-spread options
• Control:
  • Input method: DMX512 via watertight 5-pin XLR
  • Protocols: DMX512/RDM
  • RDM configuration: Yes
  • UI type: LCD
  • Local control: Yes
  • Onboard presets: Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: Waterproof, 39 in power in and thru
  • Inrush:
    • 15 A at 120 V (First half-cycle)
    • 40 A at 240 V (First half-cycle)
  • Fixtures per circuit (*All measurements are for 120 V, 60 Hz. Results may vary in different regions)- :
    • 9 (15 A power thru connector)
    • 10 (R20 module or similar)
  • Wattage typical: 110
  • Current draw: 1/0.5
• Thermal:
  • Ambient operating temp: -20°–40° C (-4°–104° F)
  • Fan (controllable): No
  • Droop compensation: Yes
  • dB range: N/A
  • BTUs/hour: 375.32
• Physical:
  • Materials: Die-cast, all metal housing
  • Color options: Black
  • Mounting options: Yoke
  • IP rating: IP66 for exterior wet location use
  • Weight: 6.4 kg (14 lb)
  • Included accessories: Hanging yoke, 5 ft power cord, media holder
• Warranty:
  • Fixture: 5 years
  • LED array: 10 years
• Regulatory and Compliance:
  • Approved regulatory standards:
    • cETLus Listed
    • Conforms to UL1598
    • Certified to CSA C22.2 No. 250.0
    • CE Compliant
