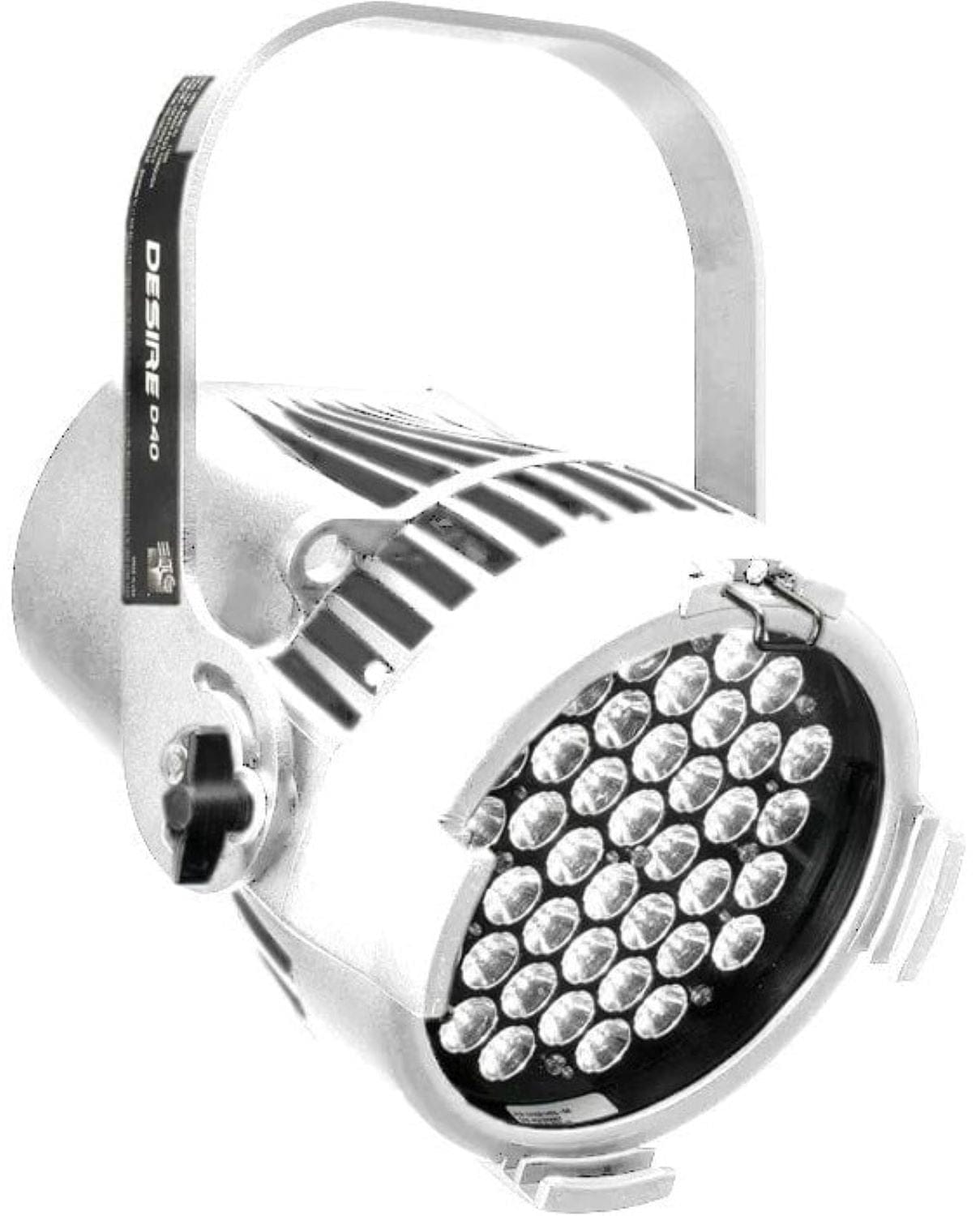

ETC Desire D40 Lustr+ LED Par - White
The ETC Desire D40 fixture puts the seven-color x7 system into a round theatrical washlight. Highly efficient primary lenses and careful color choices make the D40 fixture ideal for stage, studio and anywhere strong color and high-intensity are requirements. The x7 Color System produces the widest range of spectrally-balanced saturated and tinted color choices available. D40’s rugged die-cast enclosure, noiseless fanfree operation, multiple lens options and advanced user interface make it ideal for multiple applications.
D40 Lustr+ – optimized array with six colors plus high-intensity white LEDs to create an ideal frontlight wash fixture for full-range color, with an emphasis on lighter colors and white. It naturally lights skin tones.
PRODUCT SPECIFICATIONS
- Source
-
LED details- 40 Lumileds LUXEON® Rebel LED
-
Max lumens- Lustr+: 2,593
-
Lumens per watt- Lustr+: 25.2
-
L70 rating (hours to 70% output)- 50,000 hours
- Color
-
Colors used- Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
-
Color temperature range- 2,700–6,500 K
-
Calibrated array- Yes
-
Red shift- Yes
- Optical
-
Beam angle range- 10°–71°
-
Aperture size- 7.5 in
-
Pattern projection- No
-
Pattern size- N/A
-
Camera flicker control/Hz range- Yes: 900–25,000 Hz
-
Notes- *Secondary lenses available for multiple beam-spread options
- Control
-
Input method- DMX512 via 5-pin XLR
-
Protocols- DMX-512/RDM
-
RDM configuration- Yes
-
UI type- LCD
-
Local control- Yes
-
Onboard presets- Yes
-
Onboard sequences- Yes
-
Onboard effects- No
-
Fixture-to-fixture control- Yes
-
Notes- 15-bit virtual dimming engine
- Electrical
-
Voltage range- 100–240 VAC 50/60 Hz
-
Input method- Neutrik powerCON in and thru
- Inrush-
- 15 A at 120 V (First half-cycle)
- 40 A at 240 V (First half-cycle)
- Fixtures per circuit(All measurements are for 120 V, 60 Hz. Results may vary in different regions.)-
- 9 (15 A power thru connector)
- 10 (R20 module or similar)
-
Wattage typical- 103
- Current draw-
- 0.82 A at 120 V
- 0.40 A at 240 V
- Thermal
-
Ambient operating temp- -20°–40°C (-4°–104°F)
-
Fan (controllable)- No (N/A)
-
Droop compensation- Yes
-
dB range- N/A
-
BTUs/hour- 351
- Physical
-
Materials- Die-cast, all metal housing
-
Color options- White
-
Mounting options- Yoke
-
IP rating- IP20
-
Weight- 6.4 kg (14 lb)
-
Included accessories- Hanging yoke, 5 ft power cord, media holder
-
Notes- Easy access slots for secondary lenses and standard 7.5 inch PAR accessories
- Warranty
-
Fixture- 5 years
-
LED array- 10 years
- Regulatory and Compliance
- Approved regulatory standards-
- UL 1573
- CSA C22.2 No. 166
- CE Compliant
- EAC Compliant
- LED details- 40 Lumileds LUXEON® Rebel LED
- Max lumens- Lustr+: 2,593
- Lumens per watt- Lustr+: 25.2
- L70 rating (hours to 70% output)- 50,000 hours
- Colors used- Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
- Color temperature range- 2,700–6,500 K
- Calibrated array- Yes
- Red shift- Yes
- Beam angle range- 10°–71°
- Aperture size- 7.5 in
- Pattern projection- No
- Pattern size- N/A
- Camera flicker control/Hz range- Yes: 900–25,000 Hz
- Notes- *Secondary lenses available for multiple beam-spread options
- Input method- DMX512 via 5-pin XLR
- Protocols- DMX-512/RDM
- RDM configuration- Yes
- UI type- LCD
- Local control- Yes
- Onboard presets- Yes
- Onboard sequences- Yes
- Onboard effects- No
- Fixture-to-fixture control- Yes
- Notes- 15-bit virtual dimming engine
- Voltage range- 100–240 VAC 50/60 Hz
- Input method- Neutrik powerCON in and thru
- Inrush-
- 15 A at 120 V (First half-cycle)
- 40 A at 240 V (First half-cycle)
- Fixtures per circuit(All measurements are for 120 V, 60 Hz. Results may vary in different regions.)-
- 9 (15 A power thru connector)
- 10 (R20 module or similar)
- Wattage typical- 103
- Current draw-
- 0.82 A at 120 V
- 0.40 A at 240 V
- Ambient operating temp- -20°–40°C (-4°–104°F)
- Fan (controllable)- No (N/A)
- Droop compensation- Yes
- dB range- N/A
- BTUs/hour- 351
- Materials- Die-cast, all metal housing
- Color options- White
- Mounting options- Yoke
- IP rating- IP20
- Weight- 6.4 kg (14 lb)
- Included accessories- Hanging yoke, 5 ft power cord, media holder
- Notes- Easy access slots for secondary lenses and standard 7.5 inch PAR accessories
- Fixture- 5 years
- LED array- 10 years
- Approved regulatory standards-
- UL 1573
- CSA C22.2 No. 166
- CE Compliant
- EAC Compliant
ETC utilizes a nationally recognized third-party lab for luminaire testing according to IES LM-84. See etcconnect.com/About/News/ETC-FixtureRatings-and-Warranties-Extended.aspx.
All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. In individual situations, LEDs will be used for different durations and levels. This can eventually lead to minor alterations in color performance, necessitating slight adjustments to presets, cues or programs.
