ETC Desire D40 Lustr+ LED Par with Edison Plug - White

ETC Desire D40 Lustr+ LED Par - White

The ETC Desire D40 fixture puts the seven-color x7 system into a round theatrical washlight. Highly efficient primary lenses and careful color choices make the D40 fixture ideal for stage, studio and anywhere strong color and high-intensity are requirements. The x7 Color System produces the widest range of spectrally-balanced saturated and tinted color choices available. D40’s rugged die-cast enclosure, noiseless fanfree operation, multiple lens options and advanced user interface make it ideal for multiple applications.

D40 Lustr+ – optimized array with six colors plus high-intensity white LEDs to create an ideal frontlight wash fixture for full-range color, with an emphasis on lighter colors and white. It naturally lights skin tones.

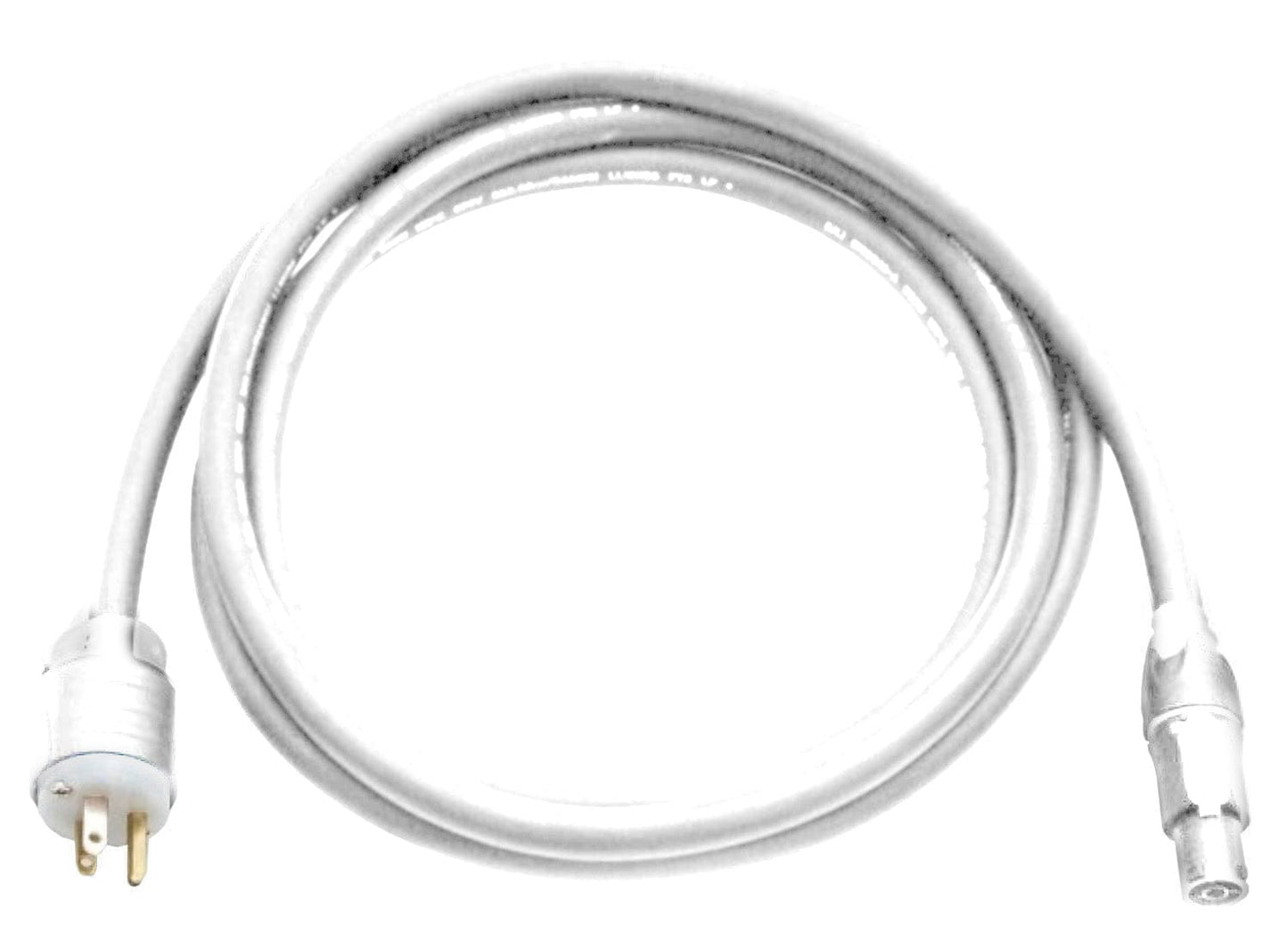

ETC T1PA-A Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable, White

6-foot TRUE1 TOP to parallel blade U-ground (Edison) connector.

Specifications:

• Source:
  • LED details: 40 Lumileds LUXEON® Rebel LED
  • Max lumens: Lustr+: 2,593
  • Lumens per watt: Lustr+: 25.2
  • L70 rating (hours to 70% output): 50,000 hours
• Color:
  • Colors used: Lustr+: Red, Amber, Green, Cyan, Blue, Indigo, White
  • Color temperature range: 2,700–6,500 K
  • Calibrated array: Yes
  • Red shift: Yes
• Optical:
  • Beam angle range: 10°–71°
  • Aperture size: 7.5 in
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: Yes: 900–25,000 Hz
  • Notes: *Secondary lenses available for multiple beam-spread options
• Control:
  • Input method: DMX512 via 5-pin XLR
  • Protocols: DMX-512/RDM
  • RDM configuration: Yes
  • UI type: LCD
  • Local control: Yes
  • Onboard presets: Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: Neutrik powerCON in and thru
  • Inrush- :
    • 15 A at 120 V (First half-cycle)
    • 40 A at 240 V (First half-cycle)
  • Fixtures per circuit(All measurements are for 120 V, 60 Hz. Results may vary in different regions.):
  • 9 (15 A power thru connector)
  • 10 (R20 module or similar)
  • Wattage typical: 103
  • Current draw- :
    • 0.82 A at 120 V
    • 0.40 A at 240 V
• Thermal:
  • Ambient operating temp: -20°–40°C (-4°–104°F)
  • Fan (controllable): No (N/A)
  • Droop compensation: Yes
  • dB range: N/A
  • BTUs/hour: 351
• Physical:
  • Materials: Die-cast, all metal housing
  • Color options: White
  • Mounting options: Yoke
  • IP rating: IP20
  • Weight: 6.4 kg (14 lb)
  • Included accessories: Hanging yoke, 5 ft power cord, media holder
  • Notes: Easy access slots for secondary lenses and standard 7.5 inch PAR accessories
• Warranty:
  • Fixture: 5 years
  • LED array: 10 years
• Regulatory and Compliance:
  • Approved regulatory standards- :
    • UL 1573
    • CSA C22.2 No. 166
    • CE Compliant
    • EAC Compliant
