ETC CSLINEAR4DB ColorSource Linear 4 Deep Blue with 5-Pin DMX/XLR and Edison Plug - Black

The CSLINEAR4DB-A package contains the following items:

*ETC CSLINEAR4DB ColorSource Linear 4 Deep Blue with 5-Pin XLR/DMX - Black

Designed and built by the lighting experts at ETC, the ColorSource® Linear 4 Deep Blue is an LED luminaire made in a strip light, or batten, form factor. It features ETC's unique RGB-L (including Deep Blue) color system to provide beautiful LED lighting. It's engineered to allow multiple fixtures to be mounted end to end with no visible break in light, and lives up to ETC's high quality standards. This particular model is approx. 2m (156.88") wide, in black, with bare-end power lead.

Features:

• ETC's LED RGB-L Chipset (Red, Green, Deep Blue, and Lime)
• Homogenized optics
• Simple user interface with 7-segment display
• PowerCON® in and thru power connections
• DMX in and thru (5-pin XLR or RJ45)
• RDM or local configuration
• LED droop compensation for consistent output
• Optically calibrated
• Tour-ready, aluminum housing

Specifications:

• General:
  • RGB-L chipset color-mixing wash luminaire with (8) emitters (including Deep Blue)
  • IP20-rated for indoor use
  • Power- and DMX-in/thru connections for simple setup
  • 7-segment, 3-button interface
  • (12) onboard, customizable presets and (5) sequences
• Physical:
  • Rugged, die-cast, aluminum housing
  • (2) secondary lens slots
  • Available in black - White, or silver
    • Custom colors available upon request (contact your Sales Pro for more information)
  • Trunnions included
  • Dimensions*: approx. approx. 3.93" H x 156.88" W x 7.36" D (100 x 3992 x 183mm)
    • *Note: Excluding mounting hardware.
  • Product Weight*: TBA
  • Shipping Weight*: TBA
• Physical:
  • Rugged, die-cast, aluminum housing
  • (2) secondary lens slots
  • Available in black - White, or silver
  • Trunnions include
  • Dimensions: approx. approx. 3.93" H x 156.88" W x 7.36" D (100 x 3992 x 183mm)
  • Product Weight: TBA
  • Shipping Weight: TBA
• Electrical:
  • 100VAC to 240VAC 50/60Hz universal power input
  • PowerCON in and thru power connections
  • Up to (9) luminaires (15A max) may be linked via power thru connector
  • Up to (10) luminaires total per circuit when used with ETC R20 relay module or Unison® Echo Relay Panel.
    • Consult breaker trip curves when used with other equipment
  • Requires power from a non-dimmable source
  • Inrush:
    • 120V: 35A (First half-cycle)
    • 240V: 49A (First half-cycle)
  • ETL Listed to UL1573
• Led:
  • 20,000-hour LED life (at 70% intensity)
  • 40 Luxeon® Z LED emitters (5 per optic)
• Color:
  • Exclusive RGB-L Color array
  • Unparalleled brightness and color range
  • Droop compensation maintains color accuracy during use
  • Optically calibrated to ensure consistency across fixture
• Optical:
  • Homogenized optics for a consistent, smooth beam
  • Primary field angle of 24.9° and beam angle of 14.5°
  • Secondary lenses available for multiple beam-spread options (sold separately).
• Control:
  • DMX512 in and thru via 5-pin XLR or RJ45 connectors (End-of-line termination required)
  • RGB, IRGBS, Direct and single channel control
  • 15-bit virtual dimming engine provides smooth, high-quality theatrical fades
  • RDM support for address and setting changes
  • Local control of presets (12) and sequences (5)
• Thermal:
  • Luminaire is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
  • Ambient operating temperature of 32° to 104°F (0° to 40°C)
  • Active electronic thermal management using variable-speed fan

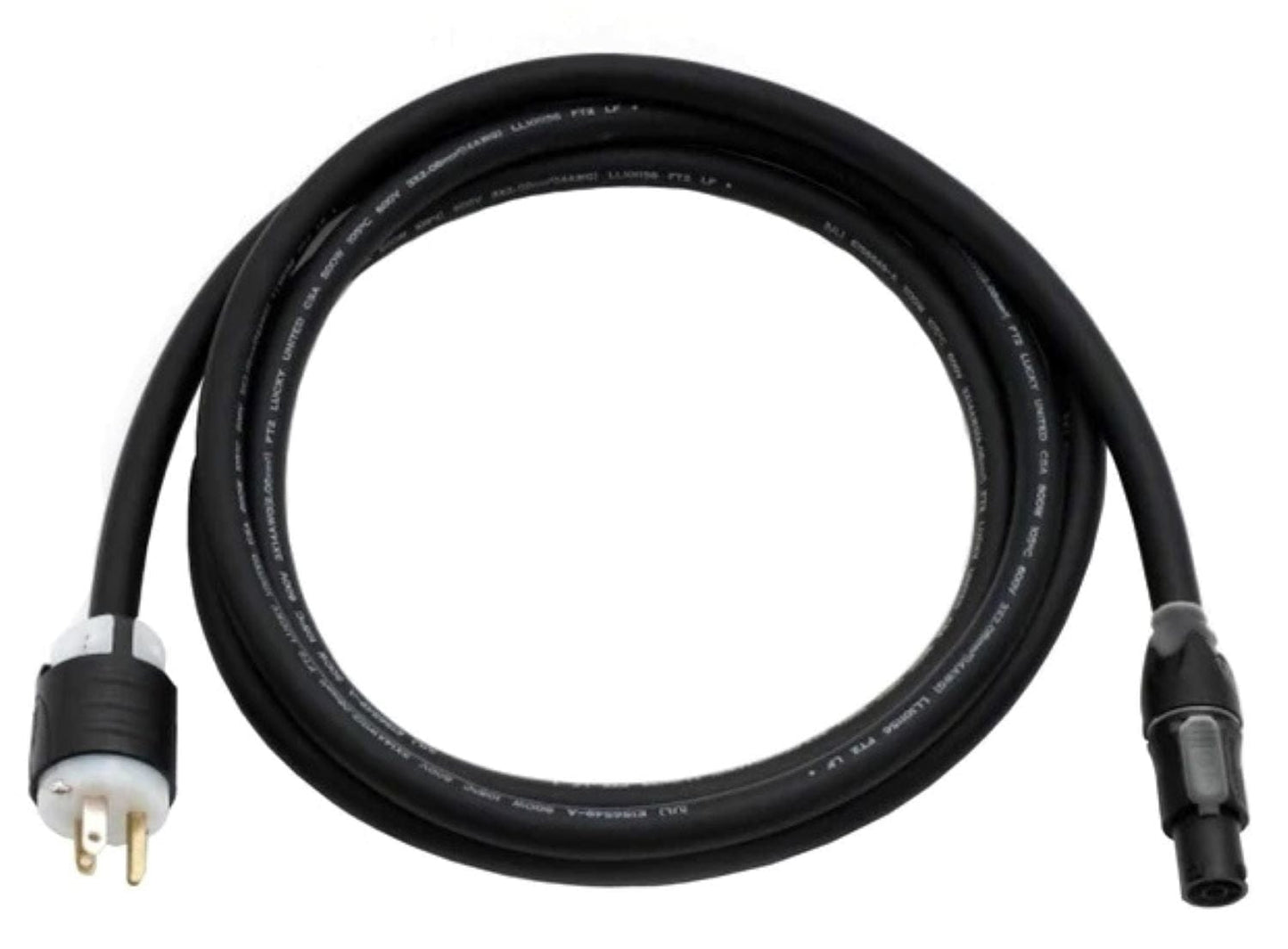

*ETC T1PA-A Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable - Black

6-Foot TRUE1 TOP to parallel blade U-ground (Edison) connector.
