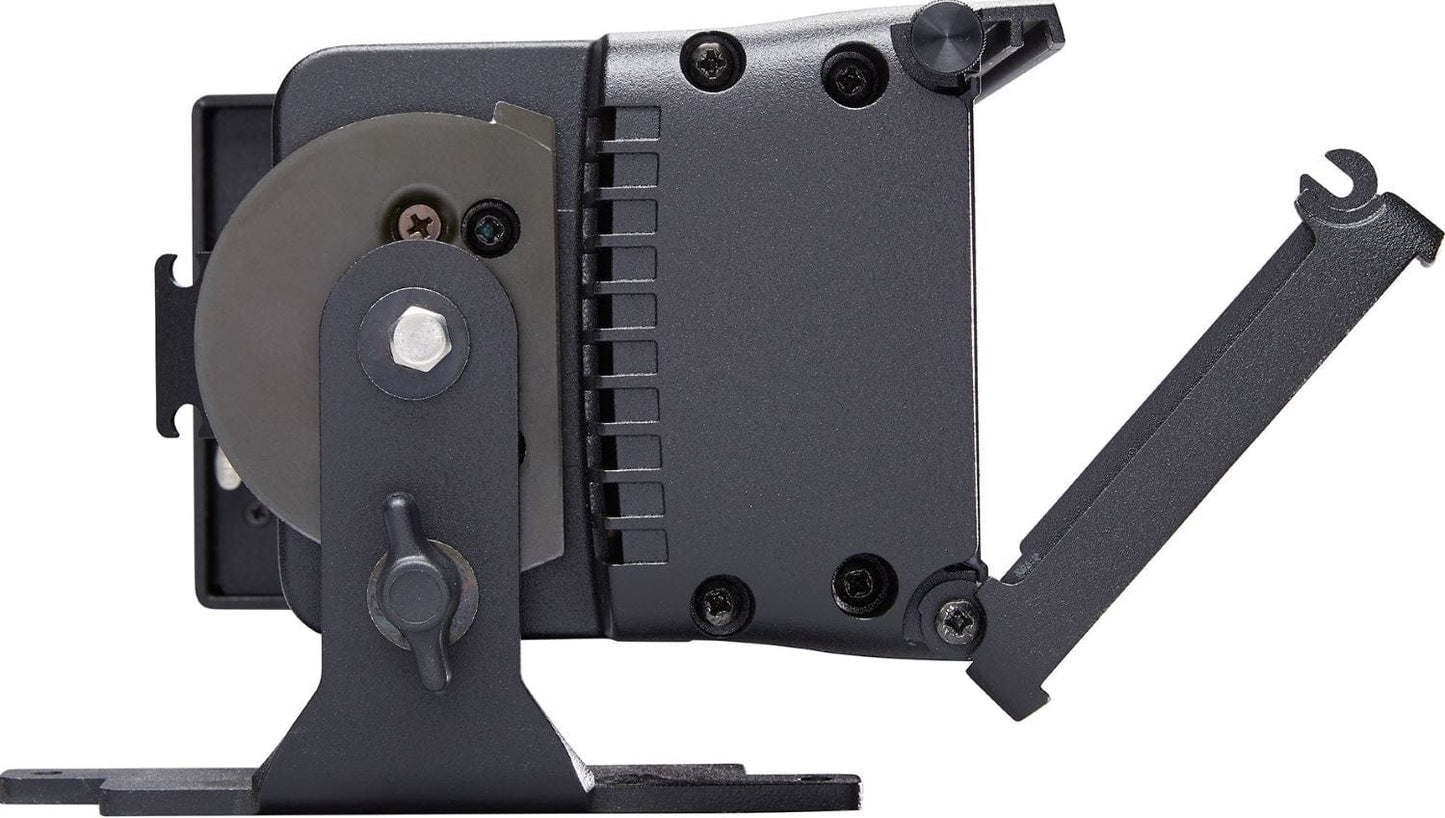

ETC CSLINEAR2 ColorSource Linear 2 with 5-Pin XLR/DMX - Black

Fashioned by ETC's lighting experts, the ColorSource® Linear 2 is an LED luminaire designed as a strip light, or batten type fixture. It employs the same proportionate recipes of red, green, blue, and lime LEDs as ETC's ColorSource PAR type fixtures, creating a color range and richness only possible from ETC LED fixtures. It's made work with multiple fixtures mounted end to end with no visible break in light, and lives up to ETC's high quality standards. This particular model is approx. 1m (78.44") wide, in black, with bare-end power lead.

Features:

  • ETC's LED RGB-L Chipset (Red, Green, Blue, and Lime)
  • Homogenized optics
  • Simple user interface with 7-segment display
  • PowerCON in and thru power connections
  • DMX in and thru (5-pin XLR or RJ45)
  • RDM or local configuration
  • LED droop compensation for consistent output
  • Optically calibrated
  • Tour-ready, aluminum housing

Specifications:

  • General:
    • RGB-L chipset color-mixing wash luminaire with (8) emitters
    • IP20-rated for indoor use
    • Power- and DMX-in/thru connections for simple setup
    • 7-segment, 3-button interface
    • (12) onboard, customizable presets and (5) sequences
  • Physical:
    • Rugged, die-cast, aluminum housing
    • Two secondary lens slots
    • Available in black, white or silver: Custom colors available upon request (contact your Sales Pro)
    • Trunnions included
    • Dimensions*: approx. 3.93" H x 78.44" W x 7.36" D (100 x 1996 x 183mm)
    • Product Weight*: TBA (contact your Sales Pro for more information)
    • Shipping Weight: TBA (contact your Sales Pro for more information)
    • *Note: Excluding mounting hardware.
  • Electrical:
    • 100VAC to 240VAC 50/60Hz universal power input
    • PowerCON in and thru power connections
    • Up to (9) luminaires (15A max) may be linked via power thru connector
    • Up to 10 luminaires total per circuit when used with ETC R20 relay module or Unison® Echo Relay Panel.
      • Consult breaker trip curves when used with other equipment
    • Requires power from a non-dimmable source
    • Inrush:
      • 120V: 35A (First half-cycle)
      • 240V: 49A (First half-cycle)
    • ETL Listed to UL1573
  • Led:
    • 20,000-hour LED life (at 70% intensity)
    • 40 Luxeon® Z LED emitters (5 per optic)
  • Color:
    • Exclusive RGB-L Color array
    • Unparalleled brightness and color range
    • Droop compensation maintains color accuracy during use
    • Optically calibrated to ensure consistency across fixture
  • Optical:
    • Homogenized optics for a consistent, smooth beam
    • Primary field angle of 24.9° and beam angle of 14.5°
    • Secondary lenses available for multiple beam-spread options (sold separately)
  • Control:
    • DMX512 in and thru via 5-pin XLR or RJ45 connectors (End-of-line termination required)
    • RGB, IRGBS, Direct and single channel control
    • 15-bit virtual dimming engine provides smooth, high-quality theatrical fades
    • RDM support for address and setting changes
    • Local control of presets (12) and sequences (5)
