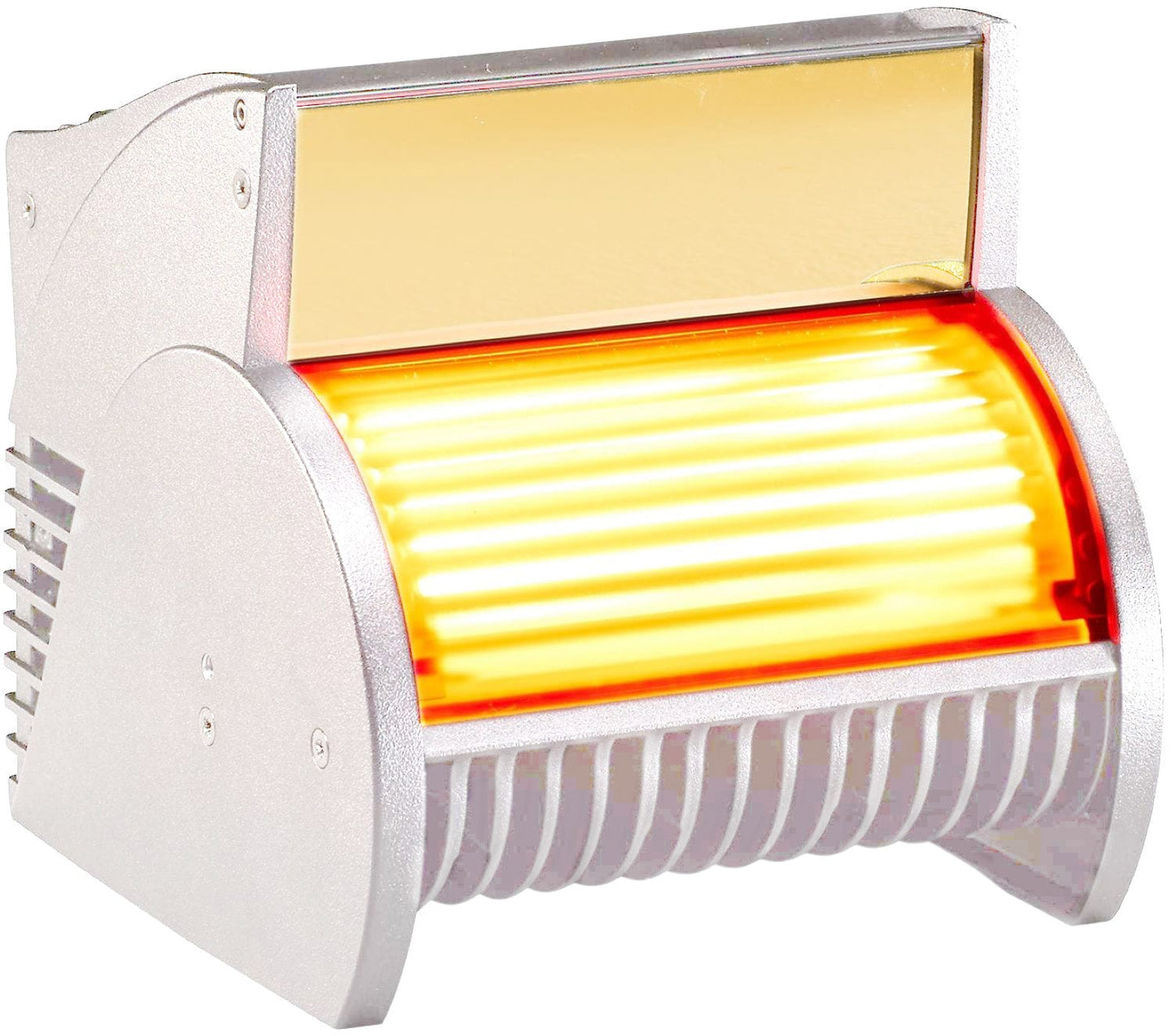

ETC CSCYC-1 ColorSource CYC 120-Volt with 5-Pin XLR/DMX - White
The ColorSource CYC is dedicated to a single purpose: creating beautiful, smooth washes of light on a cyclorama or wall. And it delivers! Its compact, fan-free design features a unique five-color mix of red, green, blue, indigo, and lime, giving an incredible range of colors at an affordable price. Gone are the days of endless tinkering to get decent lighting on the cyclorama. ColorSource CYC is pre-focused. Simply set the fixture on the deck or hang it level and you’re done!
Features:
- Compact Design
- Unique, all LED (RGBI-L) 5-color array
- Rich, bright light
- Fanless operation
- Stand-alone presets and sequences
- Simple setup and user interface
Specifications:
- Source:
- LED Details: 42 Lumileds LUXEON C LEDs
- Max Lumens: 4117
- Lumens Per Watt: 31
- L70 Rating (Hours to 70% output): 50,000 hours (estimate pending testing data)
- Color:
- Colors Used: Red, green, blue, indigo and lime
- Color temperature range: Variable
- Calibrated Array: Yes
- Red Shift: No
- Optical:
- Beam angle range: N/A (asymmetrical)
- Gate size: N/A
- Aperture size: N/A
- Pattern projection: No
- Pattern size: N/A
- Camera flicker control/Hz range: 1,200 Hz (default) and 25,000 Hz (via RDM)
- Note: The ColorSource CYC has a built in accessory for spill control
- Control:
- Input method: DMX-512 via 5-pin XLR or RJ45 connector
- Protocols: DMX
- Modes (Footprint):
- 5 channel- IRGBS (5)
- Direct- IRGBILS (7)
- 1 channel- I (1)
- RGB- RGB (3)
- RDM configuration: Yes
- UI type: 7-segment address display
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: Yes (5)
- Onboard effects: No
- Fixture to fixture control: Yes
- Note: Local level control via UI
- Electrical:
- Voltage range: 100V-240VAC, 50/60Hz
- Input method: powerCON in and thru
- Inrush: 39A (first half-cycle) at 120V
- Fixtures per circuit: 9 (20A switched circuit, R20 module or similar)
- Wattage (Typical/Standby): 133W/1.4W
- Current draw: 1.11A at 120V
- Thermal:
- Ambient operating temp: 32-104 °F (0-40 °C)
- Fan (controllable): No (N/A)
- Droop compensation: Yes
- dB range: 18.5 dBa average at 1m
- BTUs/hour: 418
- Physical:
- Materials: Die-cast aluminum and plastic
- Mounting options: Yoke and floor
- IP rating: IP-20
- Weight 10.3 lbs. (4.67 kg)
