Description

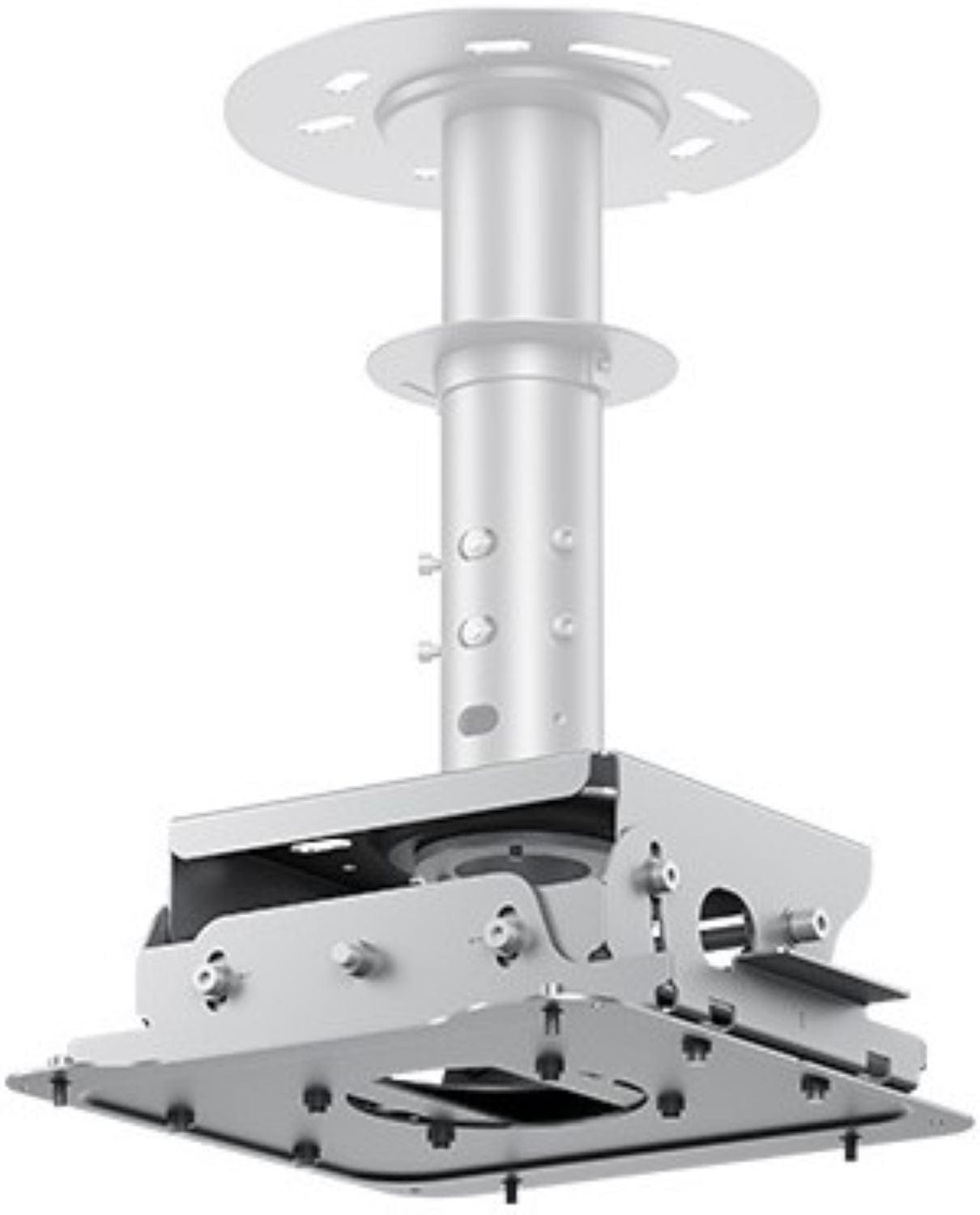

EPSON V12HA54010 ELPMB67 Projector Ceiling Mount

Simplify projector installations with the versatile ELPMB67 projector ceiling mount. Designed with flexibility in mind, this convenient ceiling mount easily supports a variety of projector adjustments — including vertical, horizontal and rotational tilt — to accommodate a range of applications. Plus, the mount offers a convenient forward and backward slide capability ideal for lenses that lack zoom features such as ultra-short throw lenses (UST). The ELPMB67 supports 360-degree directional mounting and includes M6 bolt holes for easy truss mounting via clamps. Pair with the ELPFP15 suspension adapter for high-ceiling mount applications.

Features:

  • Provides a wide range of adjustment options — including vertical, horizontal and rotational tilt
  • Forward and backward slide capability — compensates for lenses that lack zoom, such as ultra short-throw lenses
  • Flexible installation — pair with the ELPFP15 suspension adapter for high-ceiling mount applications
  • Supports 360-degree directional mounting — for portrait-projection, inclined-ceiling and desktop-mounting applications
  • Easy truss mounting — two M6 bolt holes for easy truss mounting via truss clamps (not included)
  • Tilt angle — vertical: +5 to -15 degrees; horizontal: +5 to -5 degrees
  • Horizontal rotation angle — +5 to -5 degrees
  • Forward/backward slide — +/- 36 mm
  • Durable design — supports up to 88 lb/40 kg; unit weight: 12.6 lb/5.7 kg
  • Convenient handling — two handling grips to help lift with projector attached

Specifications:

  • Material: Steel
  • Hole of ceiling mount plate: ELPMB22, 23, 47, 48
  • Dimensions (D x H x W): 12.9" x 4.8" x 14.2"
  • Weight: 12.6 lb/5.7 kg
  • Supported Weight: 88 lb/40 kg
  • Vertical Tilt: -15 degrees to +15 degrees
  • Horizontal Tilt: +5 degree to -5 degree
  • Horizontal Rotation: +5 degree to -5 degree
  • Horizontal Slide (forward/back): ±36mm
