Description

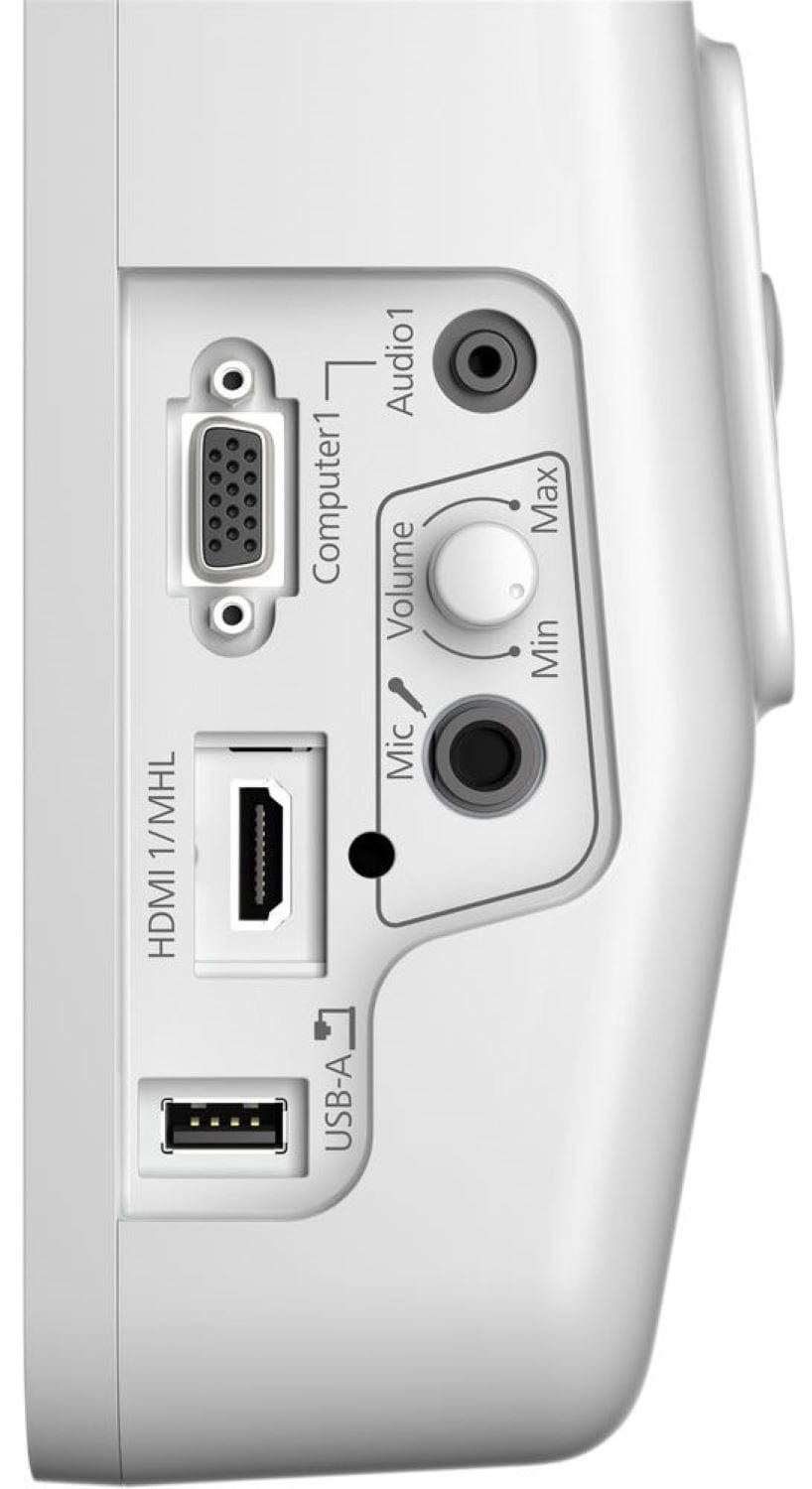

EPSON V12H927020 PowerLite Pilot 3

Maximize cable management and control for your classroom projector with the PowerLite® Pilot™ 3, a convenient wall-mounted A/V connection and control box for Epson® short-throw and ultra short-throw projectors. Designed to support an array of devices, the PowerLite Pilot 3 streamlines source switching and volume control. With 3x HDMI® control buttons (including 1 MHL®), you can select from an array of connected classroom devices — and even display two sources side-by-side onscreen at once using your projector’s Split Screen feature1. You can also use it as an extension box to expand the range of your cables and increase flexibility.

Features:

  • Centralized A/V control box — manage your Epson short-throw or ultra short-throw projector (power, A/V Mute, volume, sources); no remote control needed
  • Easy operation — large, individual source buttons intuitively match Epson projector inputs
  • Consolidated cable management — convenient wall placement helps avoid potential trip hazards
  • Optimized for connectivity — 3x HDMI control buttons to select the source from connected high-definition A/V devices; connect and charge an MHL-enabled device via the MHL/HDMI port
  • Split Screen support — connect two devices and use your projector to simultaneously project two images (video or still) side by side
  • Increased flexibility — use as an extension box to expand the range of your cables
  • Remote volume adjustment — easily control projector audio from the front of the room via the volume dial and audio mute button
  • Simple installation — quickly and easily attaches to the wall
  • Sleek design — protective cable cover and pen/iPhone® holder included
  • Industry-leading service and support — 2-year limited warranty, Epson PrivateLine® dedicated toll-free support

Specifications:

  • Interface:
    • Input Terminal:
      • Input Video VGA x 2, Composite Video, HDMI x 2 (HDMI/MHL x1), USB-A, USB-B
      • Input Audio Stereo mini jack (3.5 mm) x 3, RCA connector (L & R), Mic In (6.3 mm)
    • Control Terminal: RS-232c (9-pin crossover/null modem type)
    • Output Terminal:
      • Output Video VGA x 2, Composite Video, HDMI x 2, USB-A, USB-B
      • Output Audio Stereo mini jack (3.5 mm) x 2, REC Out (3.5 mm) x1
  • Power:
    • Power Supply Voltage: 100 – 240 V AC ± 10%
    • Rated Frequency: 50/60 Hz
    • Power Consumption: 12 W, < 0.1 W in Standby Mode
    • Output Voltage of AC Power Adapter: DC 12 V
  • Humidity: 20% – 80% RH
  • Operating Temperature: 41 to 95 °F
  • Dimensions:
    • 9.1" x 3.6" x 8.9" (with cover)
    • 9.1" x 3.6" x 7.1" (without cover)
  • Weight: 2.7 lb
