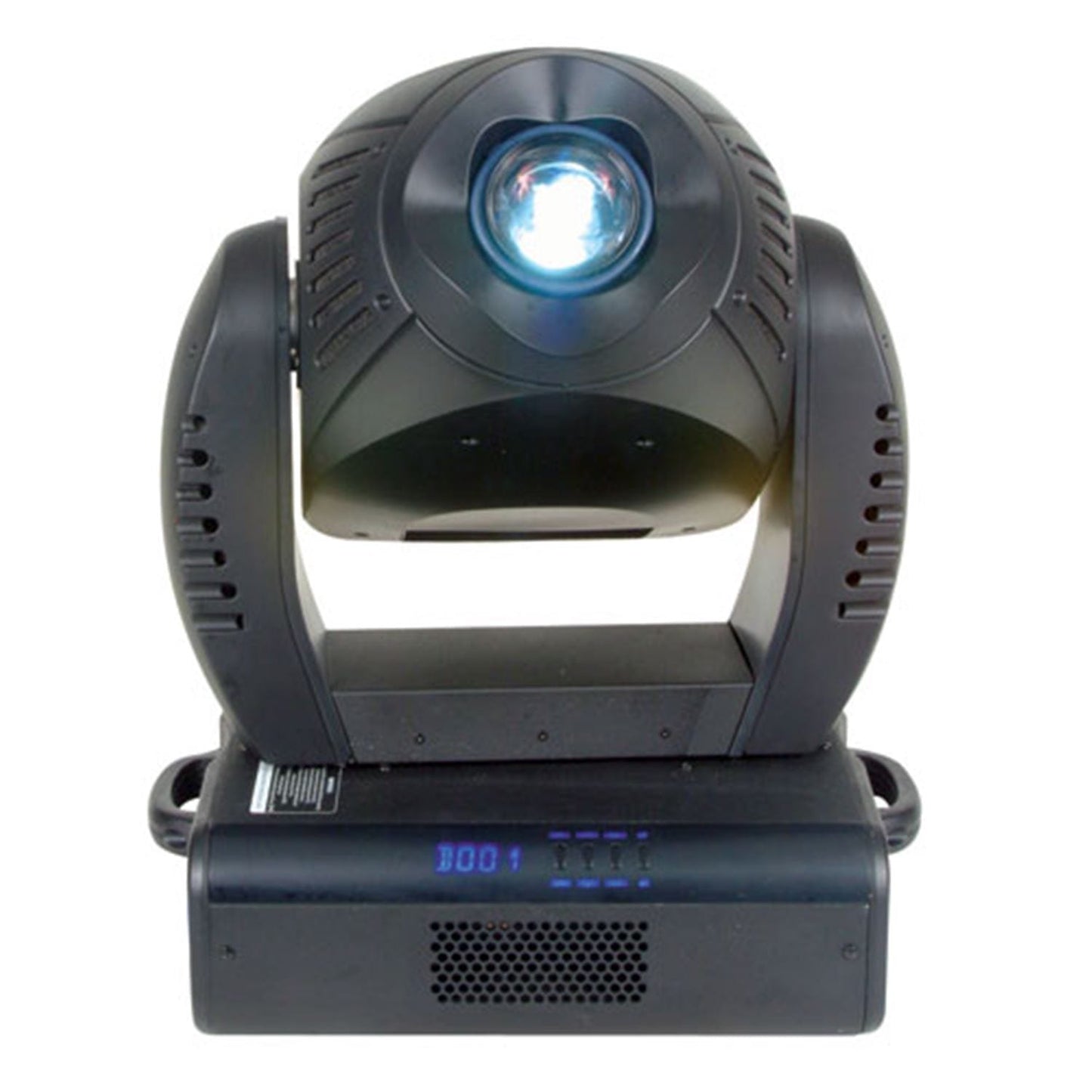

Elation Power Spot 700 II DMX Moving Head

More Elation Professional products

Write a review Q&A SKU: POWERSPOT-700-II Solotech ID#: 58375
1 of 1
Unfortunately the Elation Power Spot 700 II DMX Moving Head is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Need help? Contact our product specialists.

View full details
Unfortunately the Elation Power Spot 700 II DMX Moving Head is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Need help? Contact our product specialists.

Description

Elation Power Spot 700 II DMX Moving Head

CONTROL FEATURES
  • USITT DMX-512 (16-bit resolution)
  • 21 DMX Channels
  • 4 Digit L.E.D. Display
  • On board menu settings
  • 3-pin XLR serial input/output
  • Sound active mode - built in mic. Lamp
  • On/off Power con mains
  • Modular internal construction 1/4 turn removable lid 1/4 turn lamp replacement
OPTICAL SYSTEM
  • High output luminous- dichroic glass reflector
  • 14 - 32 degree linear Zoom All lenses are anti-reflection coated
COLORS
  • 2 Color Wheels
  • Color Wheel 1 - interchangeable color filters, 8 dichroic color filters + white, Split colors
  • Color Wheel 2 - interchangeable color filters, 8 dichroic color filters CTC, CTB + white, Split colors
  • Continuous, variable speed, color scrolling in both directions (rainbow effect)
  • More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
GOBOS
  • 3 gobo wheels
  • 23 Quick-Snap gobos system
  • 7 interchangeable, indexable, rotating gobos plus open 9 interchangeable, static gobos plus open 26.9mm outside diameter, 23mm image diameter, 3mm max thickness
  • Gobo Overlay (Gobo Morphing)
SHUTTER
  • Variable speed strobe effect (1-10) flashes per second
  • Pre-set variable/random strobe and dimming pulse effect
DIMMER
  • Dual Flag mechanical dimming system
IRIS
  • Beam narrow to wide (4% - 100%)
  • Variable speed iris macros
  • Small to large and large to small Iris Pulse Effect
FROST
  • Variable Frost Control
  • Hard edge to soft edge
PRISM
  • 3-facet rotating/Indexing Prism
  • Both directions at variable speeds
  • Macro-function for rotating gobos/rotating prism combinations
FOCUS
  • Motor driven focus from near to far
ZOOM
  • 14 - 32 degree linear Zoom
POWER SUPPLY
  • Electronic Ballast
  • Voltage: AC 90-260V 50/60Hz
  • Power Consumption: 900W (120V=7.5A)
