Description

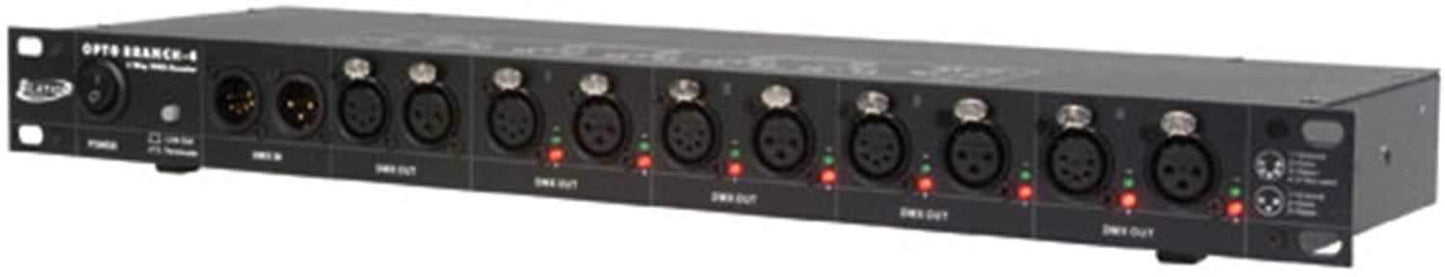

ADJ American DJ OPTO BRANCH 4 4-WAY DMX DISTRIBUTOR



Features:
  • 4-way DMX distributor
  • 19" rack mountable - single space
  • 1 x DMX input, 4 x DMX outputs & 1 DMX thru
  • All outputs are electronically & optically isolated
  • 3 & 5 pin XLR DMX connectors
  • Data + & Data - L.E.D. indicators
  • Linkable with other OPTO BRANCH 4S via 3 or 5 pin XLR
  • Link out/terminate button for troubleshooting
  • 50mA internal fuse
  • Size: 19"L x 5.5"W x 1.73"H
  • Weight: 5.29 lbs
  • Power input: 120VAC ~ 60Hz
  • Internal fuse: 05A 250V (5x20m)
