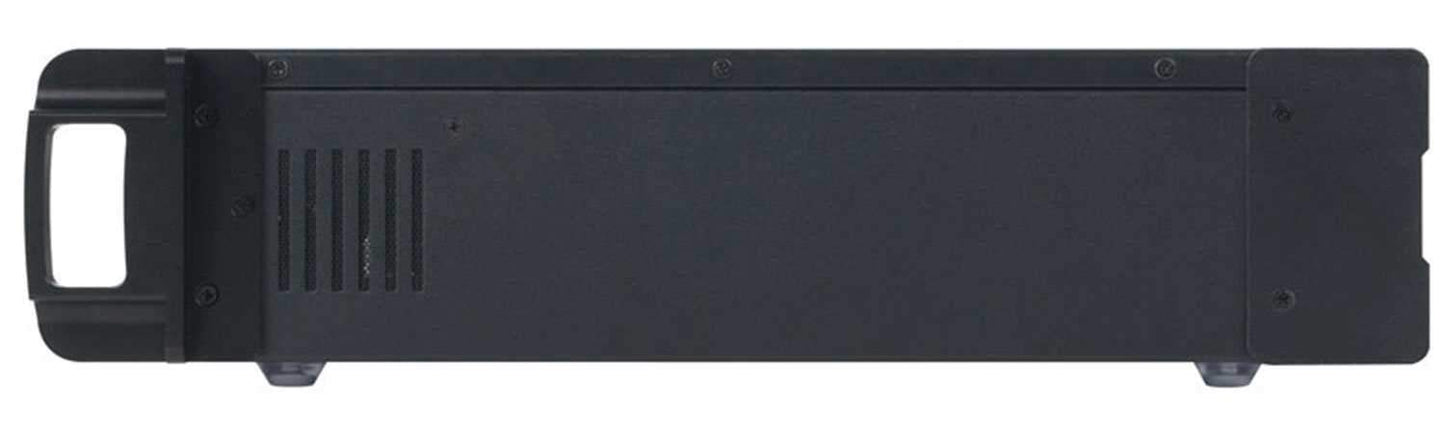

Elation NovaPro HD Professional LED Display Wall
The new NovaPro HD is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / 3G-SDI, up to 1080p @60Hz input resolution, 165MHz pixel clock and 4G-Bit output bandwidths.
NovaPro HD also includes DMX512 and GenLock interfaces, Ethernet ports for communication through standard TC/IP and USB control for cascading with additional NOVAPRO HD’s.
Features:- No computer or external scaler needed (standard rectangular layouts only)
- Up to 1080p @60Hz input resolution
- 165Mhz pixel clock / 4G-Bit output bandwidth
- Multiple video signal format support
- Cascade multiple units together
- Rack mountable aluminum enclosure (screws not included)
- Control and connections:
- (1) Input and (4) output RJ45 EtherCON Ports
- USB
- 5pin DMX
- GenLock in/out ports
- audio input: 1/8" connector
- video input: DP / HDMI / VGA / DVI / CVBS / 3G-SDI
- locking IEC power input
- Size: 19.0" X 15.3" X 3.5" (483mm X 389mm X 88.2mm) (LxWxH)
- Weight: 13.2 Lbs. (6.0kg)
- Electrical: AC 85-265V - 50/60Hz - 0.65A
- Max power consumption: 30W
