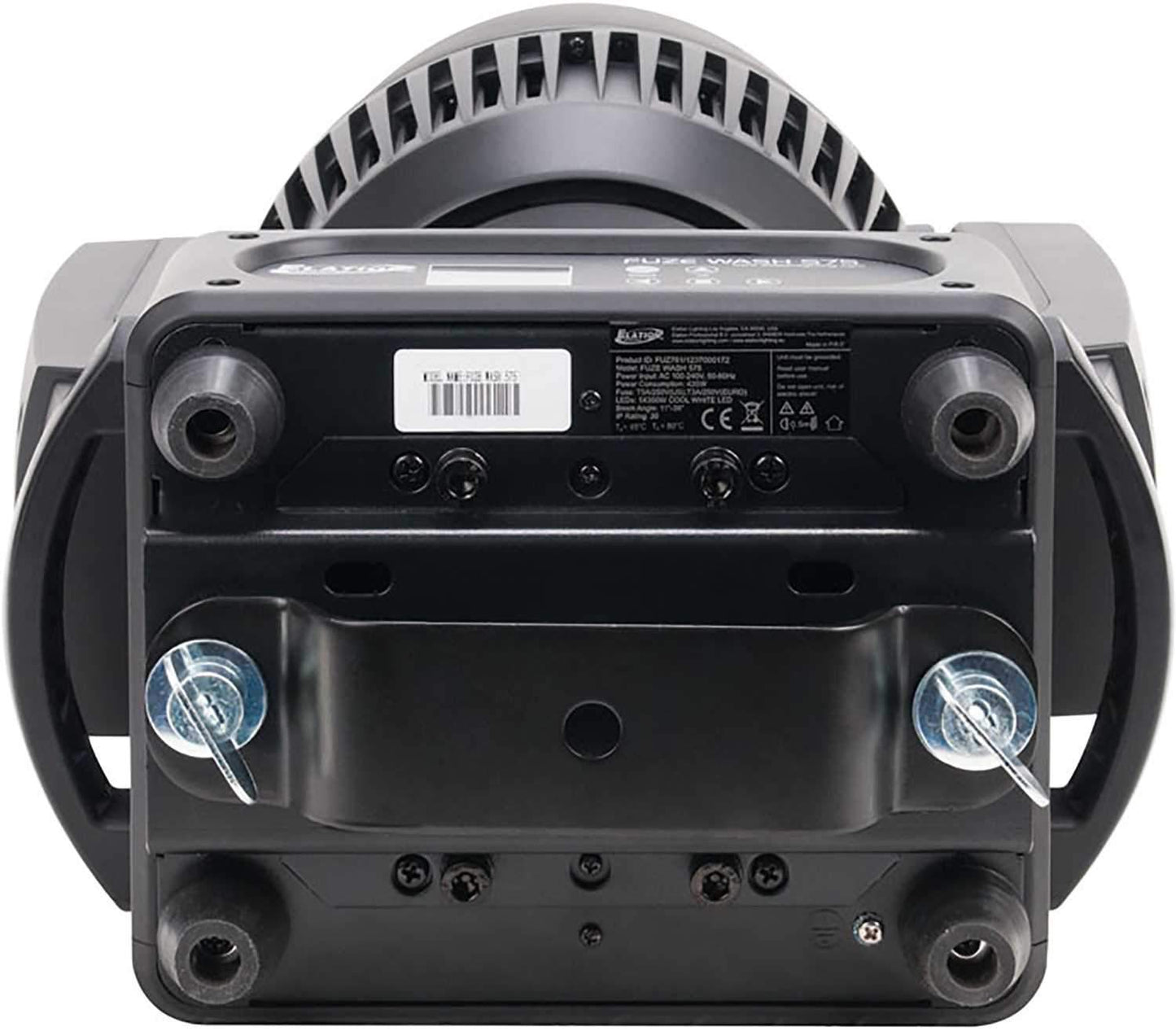

Elation Fuze Wash 575 350W CW COB Wash Moving Head with Zoom

Elation Fuze Wash 575 350W CW COB Wash w/ Zoom

The Fuze WASH 575™ is a single source par moving head luminaire with a high output 350W Cool White / Daylight 6,800K 95CRI COB LED engine, 11° to 40° motorized zoom, smooth 16-bit pan and tilt movement, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, 5pin DMX and powerCON True1 in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and Film, and a multi-voltage universal auto switching power supply (100-240v).

Features:

• Cool White / Daylight Single Source Par Moving Head
• High Output 95CRI 6,800K COB LED
• 11° to 40° Motorized Zoom
• Smooth 16-Bit Pan and Tilt Movement
• Variable Dimming Curve Modes
• RDM (Remote Device Management)
• Flicker Free Operation for TV and Film
• Multiple Unit Power Linking
• Optional Snoot Lens

Specifications:

Source

• 350W 95CRI 6,800K Cool White / Daylight COB LED
• 50,000 Hour Average LED Life*

*LED life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometric Data

• 35,425 LUX 3,291 FC @6.6' (2m) (11° Full On)
• 6,502 LUX 604 FC @6.6' (2m) (40° Full On)

Effects

• 11° - 40° Motorized Zoom
• Electronic Strobe
• Variable Dimming Curve Modes

Color

• Cool White / Daylight

Control / Connections

• 2 DMX Channel Modes (11 Total Channels)
• 7 Button Control Panel and LCD Menu Display
• Smooth 16-Bit Pan and Tilt Movement
• RDM (Remote Device Management)
• 5pin DMX and powerCON True1 In/Out
• With Wired Digital Communication Network

Size / Weight

• Length: 13.3" (337.7mm)
• Width: 9.0" (228.8mm)
• Vertical Height: 18.33" (465.7mm)
• Weight: 27.0 lbs. (12.2kg)

Electrical / Thermal

• AC 100-240V - 50/60Hz
• 425W Max Power Consumption
• Multiple Unit Power Linking
• 5°F to 113°F (-15°C to 45°C)

Included Items

• Omega Brackets
• powerCON True1 Power Cable

Approvals / Rating

• CE | IP30
