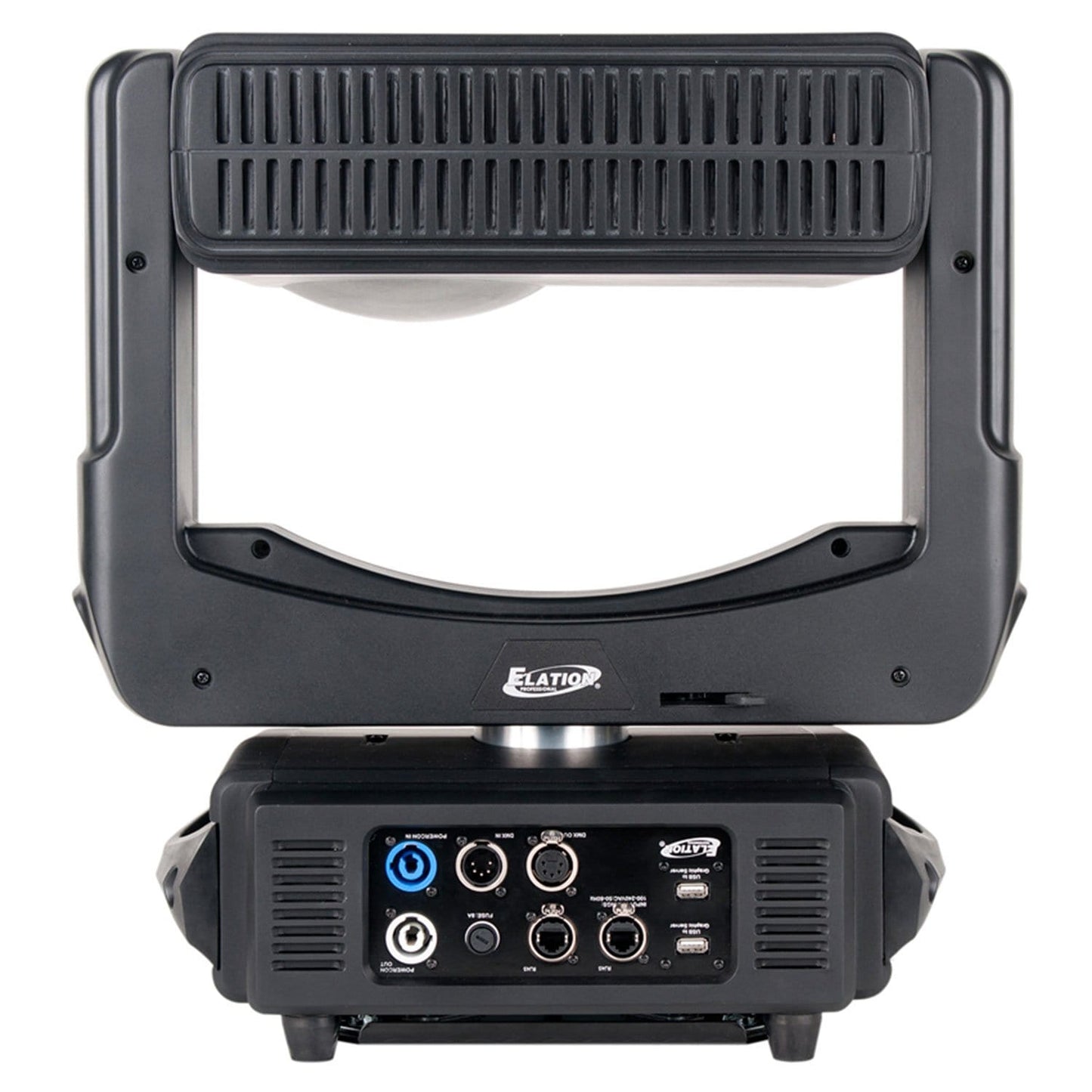

Elation eMotion Digital Projector MovingHead Light
The new Emotion is a compact high output lightweight plug and play digital projector moving head lighting fixture featuring the OSRAM 240W UHP >80CRI 6,700K lamp producing 4,000 ANSI lumens and native 1024 x 768 support. Key features include an internal 64GB solid-state hard drive media server with royalty free digital gobo and video images, live background effects and allows custom content to be easily uploaded remotely via the PC based CMA application. Included Collage Generator allows for seamless projection arrays (2-16 fixtures) and variable edge blending. CMY and RGB color mixing, digital and optical zoom, motorized focus, mechanical shutter, dimmer, 540° pan, and 240° tilt control via DMX / Art-NET, (2) USB 3.0 ports, RJ45 inputs for graphics server and Art-NET, 5pin DMX and powerCON in/out, and a multi-voltage universal auto switching power supply (100-240v).
Collage generator software - This effect enables multiple Elation eMotion™ fixtures to create an array of seamless projections using from 2-16 fixtures. The effect can create vertical, horizontal and central panoramic configurations controlled from a DMX console. Stock, custom, and custom HD Collage Generator™ content can all be displayed in Collage Mode.
Variable edge blending - On-the-Fly adjustment of blend overlap between multiple projectors when used in conjunction with any of the Collage Generator Modes. Using this mode gives more flexibility for sizing a collage to a given screen or projection surface, as well as smoother blending if wider blend regions are used.
Features:
- Compact high output moving head digital projector
- Osram 240W UHP lamp - 3,000 average hour lamp life
- Elation Gobo Catalog Included (royalty free)
- Elation GOBO catalog + 255 video images (included royalty free)
- 40 Live / background effects and color control
- easy custom content upload via PC based CMA application
- DMX control via 5-pin DMX or Art-NET
- Digital and optical zoom with motorized focus
- CMY + RGB color mixing with mechanical shutter and dimmer
- Collage generator
- Variable edge blending
- Internal 64GB solid-state hard drive media server
Specifications:
- Photometric data: 4,000 ANSI lumens / native 1024 x 768 (XGA) DLP / DMD
- Light source: Osram UHP 240W lamp
- Aspect ratio: 4:3 native (16:9 compatible)
- Resolution: XGA 1074 x 768
- Image size: 30" to 307"
- Projection distance: 3.9’-32.8’ (1.2m-10m)
- Contrast ratio: 15,000 : 1
- Display technology: DLP DMD chip / 1 billion colors (10bit)
- Effects: digital and optical zoom, motorized focus, CMY / RGB color mixing, mechanical shutter / dimmer, elation gobo catalog, 255 video images, 40 live / background effects and color control, 28 transition effects between layers
- Control and connections: (2) DMX channel modes (32 / 54), dual layer media content control, 6 button touch control panel, full color 180° reversible LCD menu display, (2) USB 3.0 ports - graphic server inputs, 5-pin DMX In/Out, (2) RJ45 Ports - graphic server / Art-NET inputs, powerCON power in/out
- Size: 18.9" X 15.0" X 22.4" (480mm X 382mm X 569mm) (LxWxH)
- Weight: 44.0 lbs. (20 kg)
- Electrical and thermal: AC 100-240V - 50/60Hz / 350W max power consumption / 40° - 95°F (5° - 35°C)
- Approvals and ratings: CE | cETLus | IP20
