Description

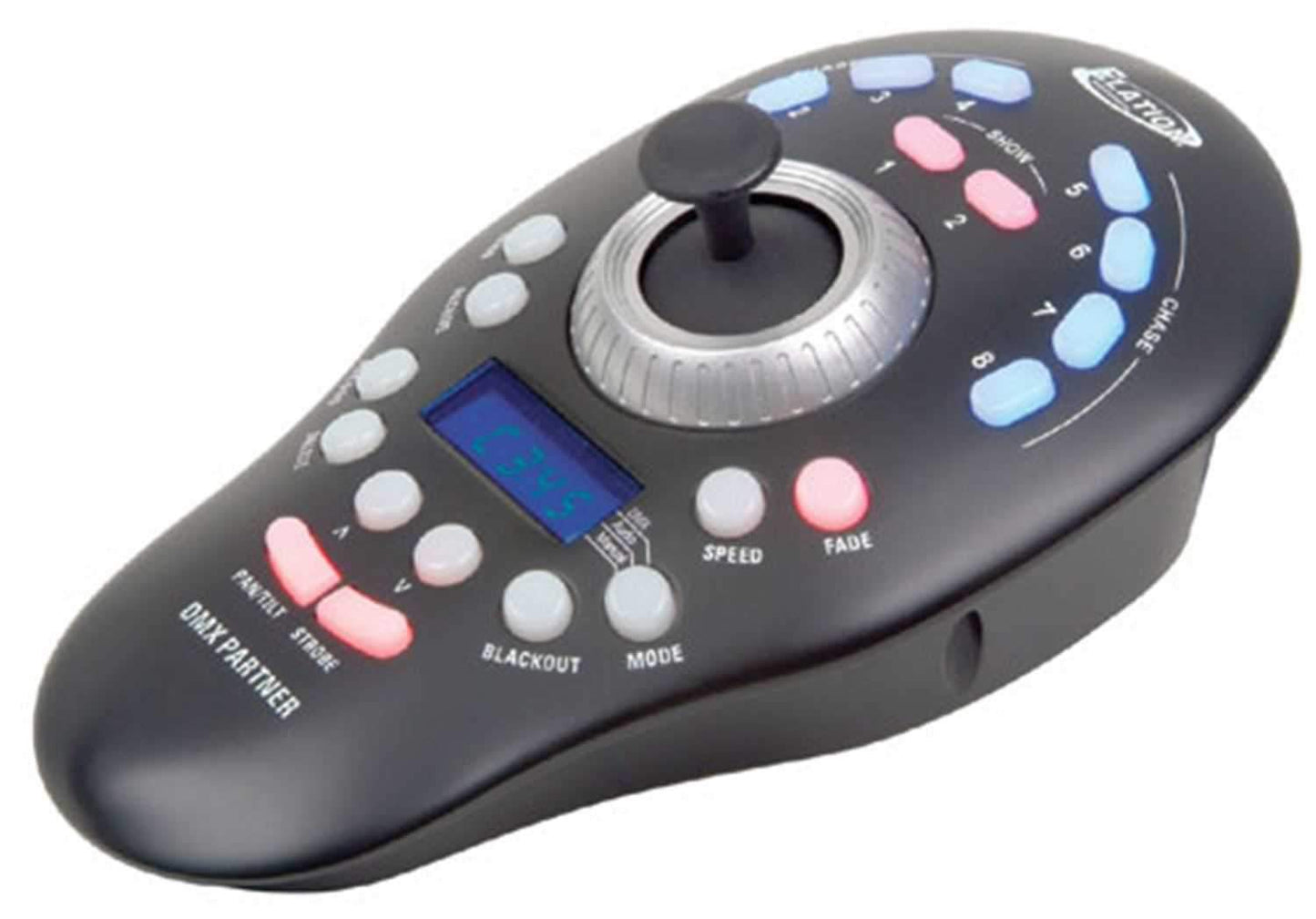

Product: DMX Partner



Features:
  • 96 channel DMX hand-held recorder/playback unit
  • 8 chases (up to 99 steps each)
  • 2 shows (up to 99 steps each with separate speed and fade time adjustment)
  • 3 operational modes: DMX, Audio or Manual
  • Playback chases and shows in sequence mode (One chase at a time)
  • Playback chases and shows in mixed mode - (All 8 chases + 2 shows can playback at one time) - incorporates HTP Principle (Highest Takes Precedence)
  • Includes XLR In, XLR Out and RS-232 connections
  • Transfer data between any universal DMX Controller and DMX Partner via DMX In/Out connections
  • Transfer data from one DMX Partner to another via RS-232
  • Transfer data to and from the DMX Partner and a personal computer via RS-232 using Elations proprietary RS-232 software (available at on elations website)
  • Assignable joystick for Pan and Tilt control
  • Programmable Strobe function
  • Password protected record feature
  • Blackout control
  • 4-character LED display
  • 21-back lit buttons
  • Includes power supply (DC 12V, 300mA)
  • Size (LxWxH): 7.75" x 4.5" x 3" / 198x112x75 mm
  • Weight: 1.5 lbs. / 0.7 kg.
