Description

Elation Design Wash LED Zoom Moving Head - White

The Elation Design Wash LED Zoom Moving Head is an IP20 rated high output pro grade moving head wash fixture featuring (108) 3W Osram LEDs consisting of 40 Red, 28 Green, 30 Blue, and 10 White. It comes in a white painted exterior and optional accessories include a wireless DMX receiver and ELATION E-Loader firmware upgrade device.


Features:
  • Pan: 540° or 630° (User Selectable)
  • Tilt: 265°
  • High Speed 16-Bit Resolution Movement
  • 7 - 30° Beam angle Zoom Range / 13-40 field angle
  • 7 Internal Auto Programs

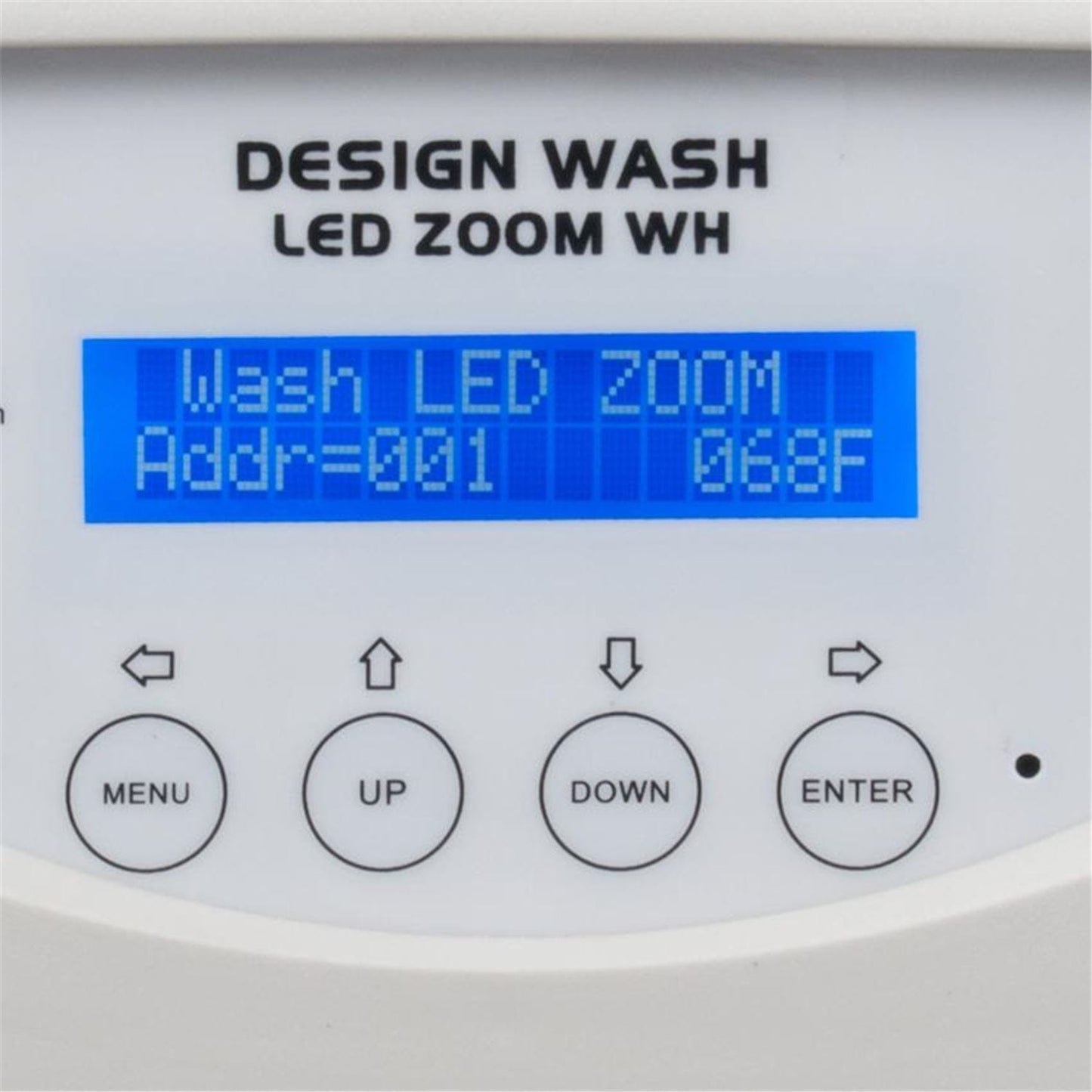

  • 4 Button LCD Control Panel
  • Single Omega Bracket Mounting
  • Flicker Free Operation for TV and Film
  • Microphone for Sound Activated Programs
  • Stand Alone Operation with Master/Slave Function
  • Software Upload via optional E-Loader device
  • Source: (108) 3W OSRAM LEDs (40 Red, 28 Green, 30 Blue, and 10 White) - 50,000 Hours Average Life
  • Effects: Color Mixing, Rainbow Effect, Dimming: 0% - 100%, Strobe: 1 – 18 Flashes Per Second, Pulse Effect

Specifications:
  • Length: 13.1" (332mm)
  • Width: 8.7" (220mm)
  • Vertical Height: 17.5" (445mm)
  • AC 100-240V - 50/60Hz
  • Power Consumption: 320W (at full power)
  • -10°C/14°F to 45°C/113°F
