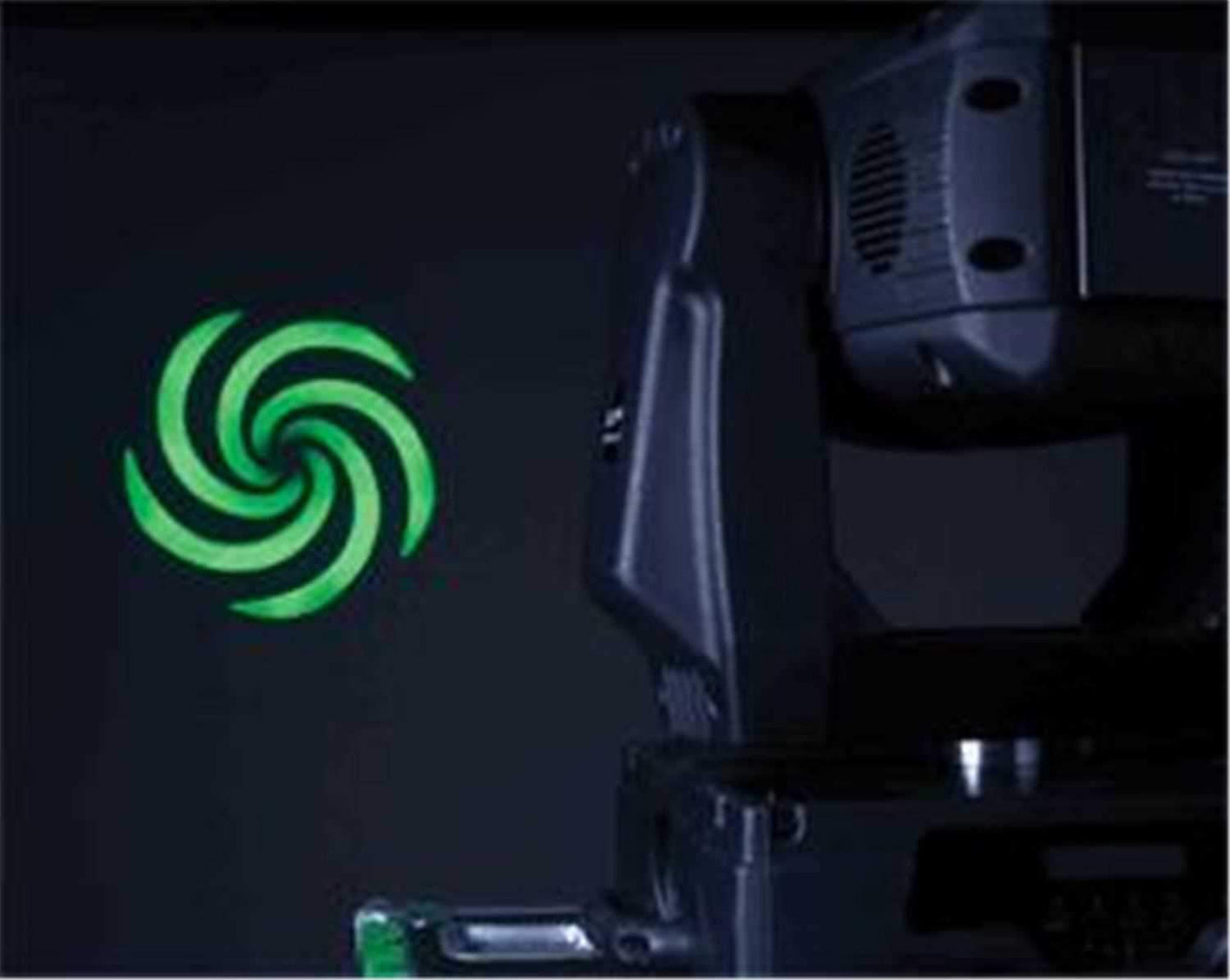

Elation Design Spot LED 90W Moving Yoke

FEATURES:

• 9 Dichroic Colors
• 14 Gobos
• LED Lamp Source With Equal Output to 250W Discharge
• 15° Beam Angle
• Variable Frost Filter (Hybrid Effect for Wash)

Colors

Gobos

• 14 Gobos
• Two gobo wheels
• Gobo wheel 1: 7 rotating / indexing replaceable gobos
• Gobo wheel 2: 7 replaceable static gobos. 4 metal, 3 glass gobos
• Gobo Size 26.9mm (outside dimensions) / 23mm (inside dimensions)

Special Effects

• 3 Facet Rotating / Indexing Prism
• Variable Frost Filter (Hybrid Effect for Wash)
• Motorized Iris

Shutter/Dimmer

• Variable speed Shutter / Strobe
• Strobe effect with 0-18 flashes per second
• Mechanical Dimmer 0-100%

Light Source

• 1989 Lux / 185 fc at 16 feet / 5 meters at full
• LED lamp source with equal output to 250W discharge
• Lamp life: 50,000 hours, 6500° K, CRI=70
• Lamp: CBM-360-W LED 90Watt

Optical System

• 15° Beam Angle
• Motorized focus
• Improved optics and flat beam field

Movement

• Pan / Tilt 540/630 x 265
• Automatic Pan / Tilt correction
• Pan / Tilt locking system

Control

• 16 Channels DMX
• LCD display
• Reversible display option, 180° flip
• USITT DMX-512 Complaint
• 16 prism macros
• RDMX addressing
• 8 built-in programs
• 16 bit mode
• 3 operation modes: DMX controlled, stand alone or sound activated

Operation Parameters

• Max ambient temperature: 45°C
• IP Rating: IP20
• dB Rating: 55 dB at 3’

Power Supply

• User selectable power supply (internal tap)
• Nearly 1/2 power consumption of standard DS250 PRO
• 240W MAX / 120v-240V 50/60hz

Connectors

Dimensions and Weight

• Dimensions: (L x W x H) 6.75" x 16.75" x 19.75" / 425.45mm x 425.45mm x 501.65mm
• Weight: 48.5 lbs / 22 kg

Approvals

• CE approved
