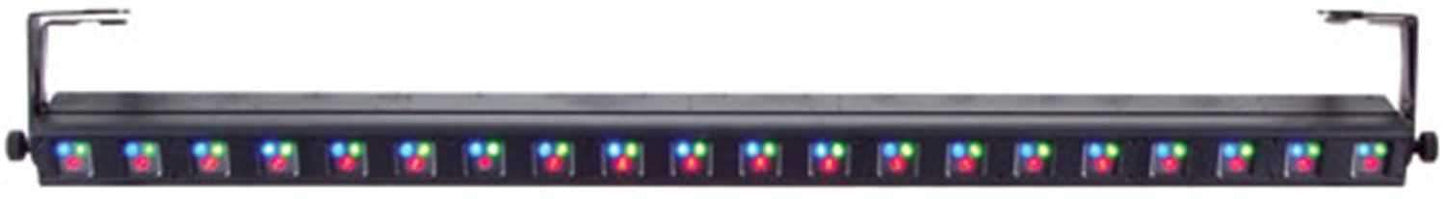

Elation DESIGN-LED-60-STRIP RGB LED Panel

Write a review Q&A SKU: DESIGN-LED-60-STRIP Solotech ID#:
Unfortunately the Elation DESIGN-LED-60-STRIP RGB LED Panel is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.
 View full details
Unfortunately the Elation DESIGN-LED-60-STRIP RGB LED Panel is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Description

FEATURES:



  • 60 x 1W Luxeon LED’s - (20 Ea. R, G, B)
  • Seamless RGB color mixing
  • Infinite Color possibilities
  • 80º Beam Angle
  • 570 lumens @ 1m
  • Long Life L.E.D. (rated at 100,000 Hours)
  • Low power consumption
  • Low heat emissions
  • Compact design: fits into 12-inch truss
  • Built-in Power Supply and DMX 512 Control
  • Flicker free operation for television and film
  • Electronic Switching Power Supply (90-260V, 50/60Hz)

CONTROL SPECIFICATIONS:

  • USITT-DMX 512
  • 6, 15, 60 OR 63CH operation modes
  • 12 Position Binary dip switches
  • 3 & 5 pin XLR in/out
  • Linkable power supply up to 8 units (In/Out power connectors)

CONTROL FEATURES:

  • Master/ Slave auto program and music trigger
  • 8 built-in programs with Speed control
  • Strobe effect (1-18 flashed per second)
  • Control each L.E.D. independently
  • Sound controlled via built-in microphone
  • 0-100% Dimming

POWER SUPPLY:

  • 90-260V AC, 50/60Hz (Multi-voltage)
  • On/Off Power switch
  • Power Consumption: 140 watts

RIGGING:

  • Mounting bracket and safety I-hook installed

DIMENSIONS & WEIGHT:

  • (LxWxH) – no bracket): 68" x 8.5" x 3.25" / 1728mm x 215mm x 83mm
  • 24 lbs. / 10.5 kgs.
