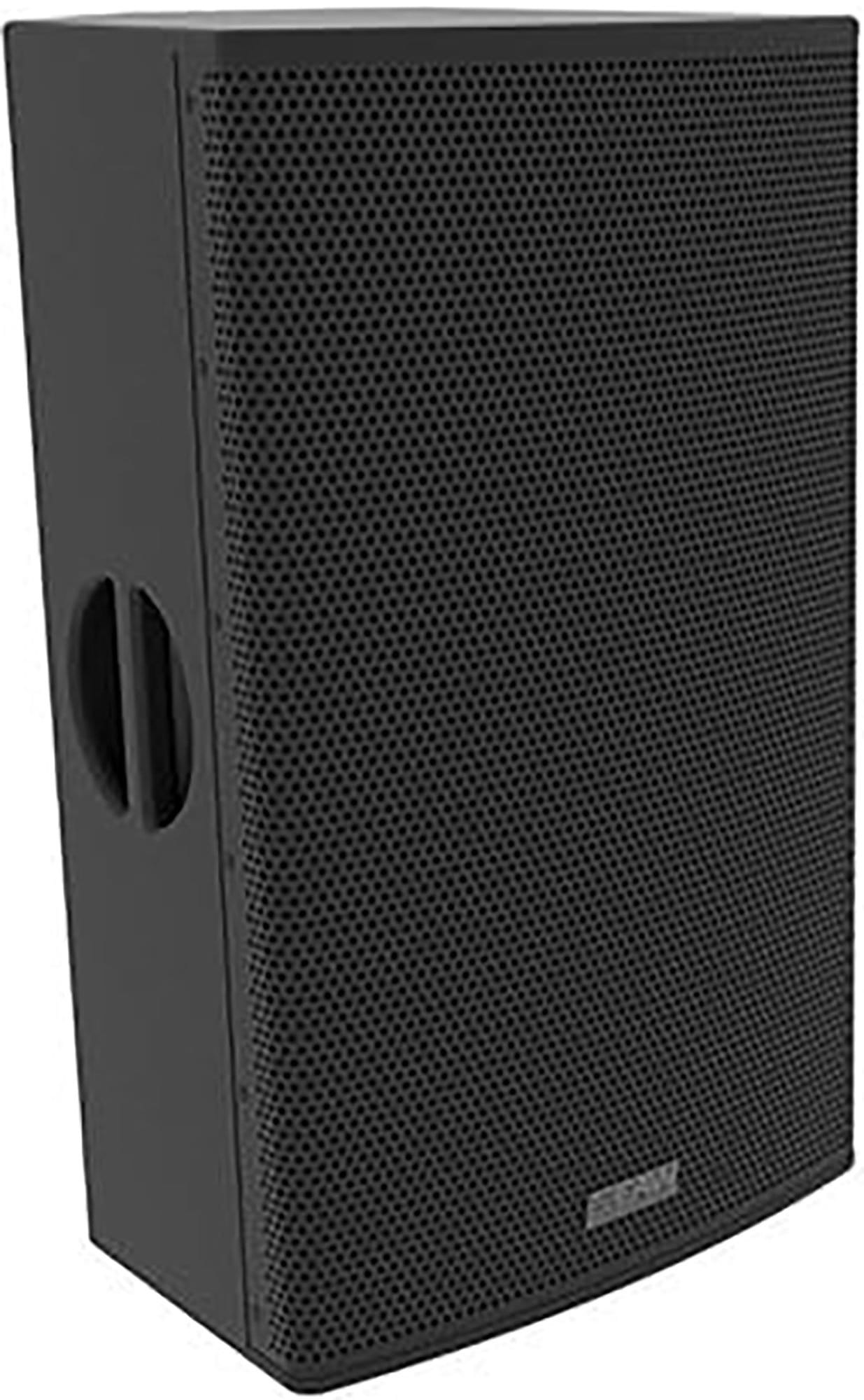

EAW RS121 1500W RS Series Self Powered Loudspeaker

The RS Series delivers EAW signature performance in a portable and lightweight wooden enclosure. Each enclosure in the series is first designed around the latest breed of touring grade HF and LF transducers. The intelligent features of the series include EAW Focusing which provides unmatched musical clarity and tonal accuracy. Pattern control of the RS Series is further enhanced by the unique, constant directivity HF horn; a design theory first proven in thier legendary MK Series, a series born from the audio performance needs of stadiums throughout the world.

The lightweight and durable wooden enclosure has been meticulously designed to eliminate resonance and houses onboard bi-amplified electronics (1500W) featuring signature EAW DSP including Focusing and DynO. Their Resolution software platform is a powerful and easy-to-use simulation software that accurately predicts the performance of one or multiple RS Series enclosures within a venue or performance space.

Applications:

• Houses of Worship
• Theatres, Auditoria and Performing Arts Centers
• Live Music Clubs
• Corporate AV Houses
• Live Production/Regional Rental Houses
• Dry Hire

Features:

• Leading-edge touring grade transducers
• EAW Focusing for unmatched clarity and accuracy
• Rotatable MK inspired horn for EAW signature pattern control
• Lightweight and durable wooden enclosure with M10 threaded suspension points

Specifications:

Performance

• Max SPL: 135dB
• Operating range: 55 Hz to 20 kHz
• Nominal Beamwidth: 90° Horizontal and 60° Vertical, Constant Directivity, User Rotatable

Configuration

• LF Transducer, Loading: 12in Cone, Vented
• HF Transducer, Loading: 1in Exit, 1.4in voice coil compression driver, Horn Loaded
• Operating Mode: Bi-Amp LF, HF
• Signal processing: DSP w/EAW Focusing™ and DynO™
• Modes: Main / Monitor, HPF Select

Electrical performance

• Input: Electronically Balanced XLR / TRS
• Loop: Electronically Balanced XLR
• Amplifier:
  • Type Class – D
  • Max Output LF/HF (Peak) – 1500W
• AC Mains (nominal):
  • Connector – IEC Connector
  • Input – 100-120V or 200-240V, 50-60Hz
• Dimensions (HxWxD)*: 25.4″ x 14.4″ x 15″ (645mm x 365mm x 380mm)
• Net Weight*: 45lb (20kg)
