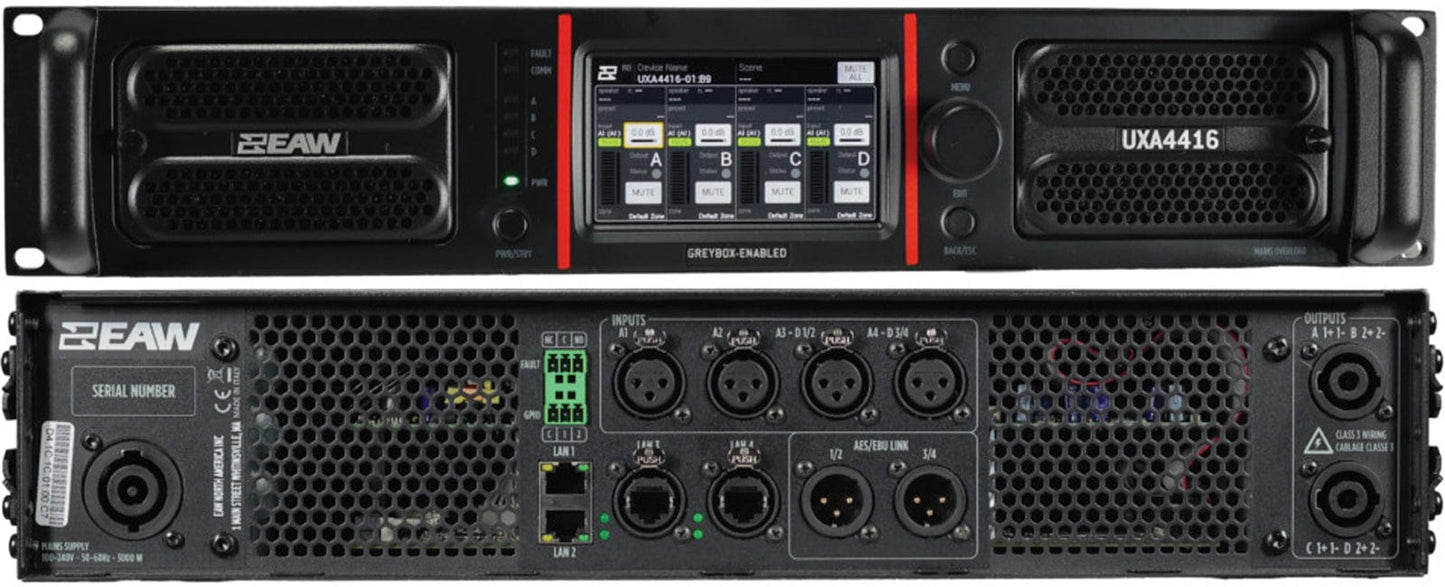

EAW UXA4416 Powered Amplifier
Fully Integrated Touring Systems
Amplification and array processing are critical components of modern sound systems. The processing engine in UXA4416 supports the FIR filters necessary to get the most out of EAW’s KF, SB, and MW loudspeakers. When applying UXA4416 to power and presets to your system you can be assured that you’re getting the most out of your system consistently, night after night.
Dependable Sound when it counts
UXA4416 amplifiers are based on proven technology. With rugged electronics and support, these amps are built to last for years while providing high quality coverage for a vast range of applications.
The UXA4416 is based on a 96KHz 40-bit floating point processing engine and four 4000-watt amplifier channels. In addition to standard analog and AES digital inputs, signal can be supplied digitally through primary and secondary Dante network connections A network connection to EAW’s award winning Resolution 2 software allows for quick configuration and monitoring of large systems. When such a network is impractical or not available UXA4416 can be addressed and configured using the intuitive touch screen interface on the front panel of each amplifier.
Features:
- 4 x 4000W of Class D amplification.
- 96kHz, 40-bit floating point DSP for advanced audio processing with EAW Greybox presets.
- Pairs seamlessly with EAW Professional Systems.
- 4.3″ touch screen display provides a complete, ergonomic and user friendly control.
- Primary and Secondary Dante with 2x Gigabit Ethernet ensure there are no interruptions during show time.
- Resolution software and system-wide network control allows users to configure, monitor, and control large systems.
- Universal PFC power supply performs reliably anywhere in the world.
Specifications:
- Amplifier Class: D
- Output Power (all channels driven):
- 4 x 4000W @ 2.7 ohms
- 4 x 2600W @ 4 ohms
- 4 x 1400W @ 8 ohms
- Frequency Response (-3dB): 20 Hz - 23 kHz
- Gain (linear mode @ 0 dB): 32 dB
- Total number of inputs: 8
- Line Inputs: 4
- Line Connectors: XLR
- Input Impedance: 9 kohm (unbalanced)
- Maximum input level: +24 dBU
- Digital inputs: 4
- Digital connectors: Ethercon, XLR
- Digital type: 4 AES/EBU, 8 DANTE
- Signal output number: 4 x AES
- Power output lines: 4 x NL4
- General Purpose Outputs (GPO): 3
- Digital Signal Processing: 40-bit floating point, 96 kHz
- EQ Filters: Peaking, HI/LO-shelving, HI-pass, LO-pass
- Advanced algorithms: Focusing, Beamwidth Matched Crossovers, DYNO
- Compressors: RMS limiter, dynamic compressor, power limiter, thermal compressor
- Delay: 0 - 4000 ms (each channel)
- Configuration: Front panel touch screen, EAW Resolution
- Speakers Presets: EAW Greybox Library
- Control and monitoring protocols: Primary/Secondary DANTE
- Network: 2 x Gigabit Ethernet
- Operating voltage: 90-240 V~ 50/60Hz
- Power consumption idle: 90W
- Power consumption max: 5800W
- Dimensions (HxWxD): 3.49"x18.98"x18.99"
