DiGiCo SD9 Digital Mixing Console - MADI and One Multi-Mode Optics ST

Compact in size but big on features, the DiGiCo SD9 Digital Mixing Console brings the strength of Stealth Digital Processing and floating point Super FPGA technology to an exceptionally accessible price point. Coupling the speed and efficiency of DiGiCo’s renowned workflow to the lightweight, small-footprint construction of a desk that fits every application, the fully integrated SD9 is as effective on the road as it is in a theatre, conference centre or house of worship.

Built for efficient and familiar operation, the SD9 work surface puts 24 touch-sensitive, motorised faders at your fingertips plus quick access function buttons within easy reach. A 15-inch, high resolution backlit TFT LCD touchscreen provides ease-of-use and at a glance operation, while dedicated multi-function control knobs and electronic labelling ensures the show is always a success. Welcome to the SD9 – your introduction to extraordinary high-end performance.

Features:

• MADI and One Multi-Mode Optics ST
• Connections: D-MADI x 2, MADI x 1, Optics x 1
• Connectors: EtherCON, BNC, ST
• 96 Input Channels
• 48 Aux / Sub-Group Busses
• LR/LCR/LCRS/5.1 Master Buss
• 12 x 8 Full Processing Matrix
• 158 Dynamic Equalizers
• 48/96kHz Sample Rate

Specifications:

• Faders: 24 x 100mm Touch-sensitive, motorised
• Screens: 1 x 15” (38cm) LCD high-resolution touch screen
• Meters: 24 x 8-Segment LED bargraph
• Input Channels: 96 Input Channels
• Busses: 48 Aux/Sub-Group Busses
• Solo Busses: 2 Stereo Busses
• Matrix: 12 x 8 Matrix (additional to busses above)
• Control Groups: 12, Selectable for VCA-style, Moving Fader, Mute Group
• Graphic EQ: 16 x 32-band, Gain +/- 12dB
• Internal FX: 12 Stereo FX Processors

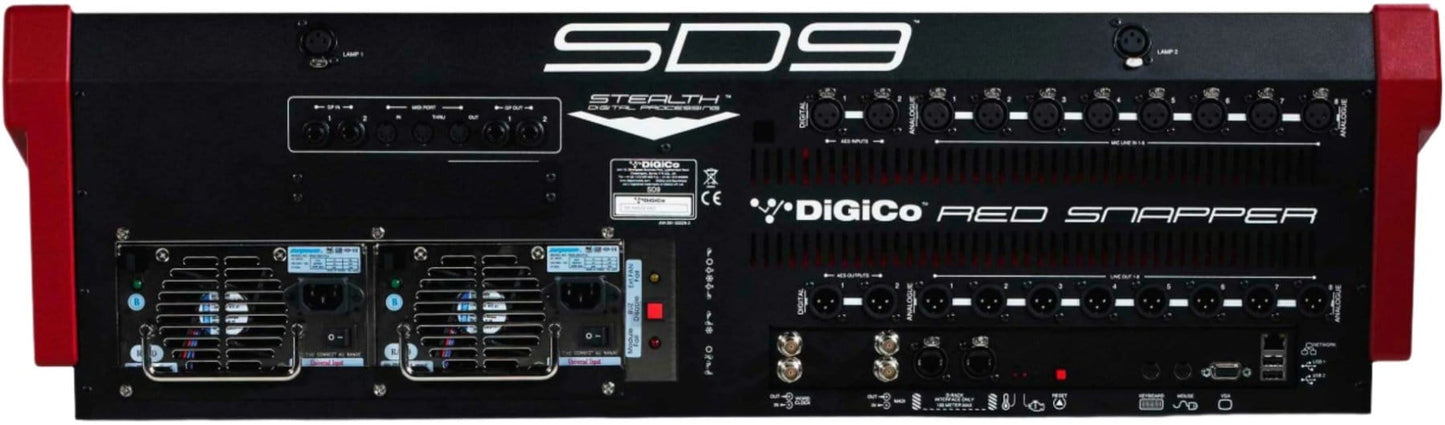

• Local I/O: 8 x Mic/Line I/O, 4 x AES/EBU: I/O (Mono)
• MADI Interface: In / Out
• Optional Optics: Optocore, HMA or ST
• MIDI Interface: In / Out / Thru
• VGA Port: DB-15 Mini-Female (1024 x 768 Resolution)
• USB Ports: 3 x USB2
• Light Connection: 2 x XLR3 1.2 – 12V
• Ext Sync: Word Clock, MADI
• Headphone: TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
• GPI: 2 x 1/4” Jack
• GPO: 2 x 1/4” Jack
• SD9 Dimensions: 878mm (w) x 785mm (d) x 262mm (h)
• SD9 Weight: 36Kg (105Kg with optional flightcase)
• SD9 Flightcase: 1063mm (w) x 1131mm (h) x 472mm (d) (Optional)
• SD9 Power: 90-264 VAC, 47-63Hz Auto Sensing. 208 watts, 232VA Requirements
• Redundancy: Internal PSU x 2 (Optional)
