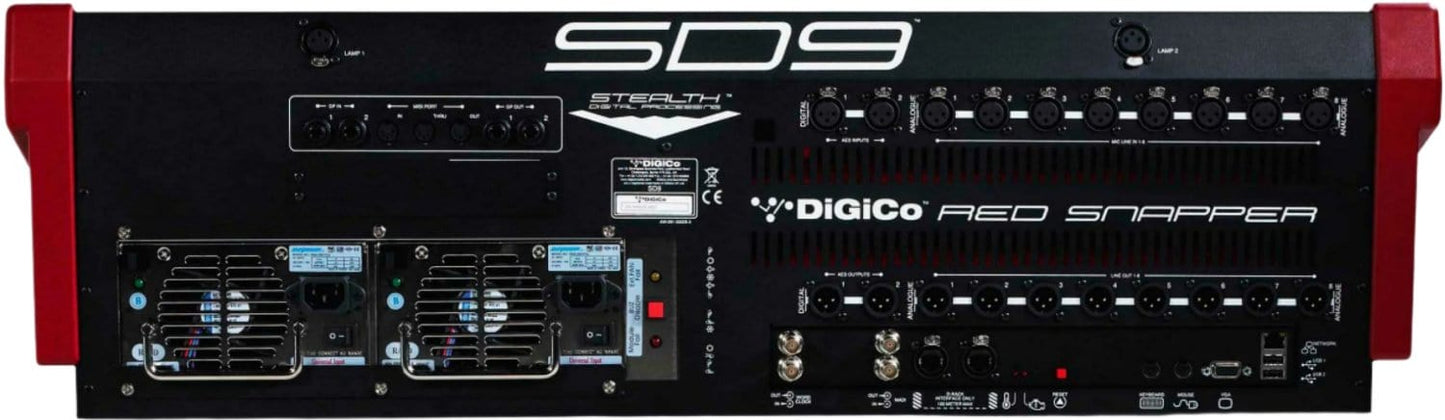

DiGiCo SD9 Digital Mixing Console - MADI Only

The DiGiCo SD9 is a compact but powerful digital mixing console, utilizing Stealth Digital Processing and floating-point Super FPGA technology. Featuring a 15-inch touchscreen and 24 touch-sensitive motorized faders, this console offers a tactile experience with instant visual feedback. With 96 input channels and high-quality 48kHz/96kHz digital audio, the SD9 ensures world-class sound. It also includes robust digital effects processing across both inputs and outputs, along with MADI I/O and two D-Rack ports for expansion. Perfect for professional settings, the SD9 provides exceptional control, sound quality, and performance flexibility.

Features:

• 96 input channels with 8 mic/line inputs and 8 analog outputs
• 4 mono AES/EBU inputs/outputs and MADI I/O
• 48 auxiliary/subgroup buses
• LR/CR master bus with 12 x 8 full processing matrix
• Dual D-Rack ports for expansion (digital stage boxes sold separately)
• Comprehensive digital effects processing on all inputs and outputs
• 24 touch-sensitive, motorized faders
• Native 24-bit/96kHz operation (switchable to 48kHz)
• 15-inch touchscreen for immediate feedback and control

Specifications:

• Faders: 24 x 100mm Touch-sensitive, motorized
• Screen: 15” LCD high-resolution touchscreen
• Meters: 24 x 8-segment LED bargraph
• Input Channels: 96
• Buses: 48 Aux/Sub-Group Buses, 2 Stereo Solo Buses, 12 x 8 Matrix
• Graphic EQ: 16 x 32-band with +/-12dB gain
• Internal FX: 12 Stereo FX Processors
• Local I/O: 8 Mic/Line inputs, 4 AES/EBU (mono)
• MADI Interface: In/Out
• Optional Optics
• USB Ports: 3 x USB 2.0
• VGA Port: DB-15 Mini-Female (1024 x 768 Resolution)
• Headphone: 1/4” TRS Unbalanced
• Power: 90-264 VAC, 208W, Auto Sensing
• Dimensions: 878mm (w) x 785mm (d) x 262mm (h)
• Weight: 36kg (105kg with flight case)
